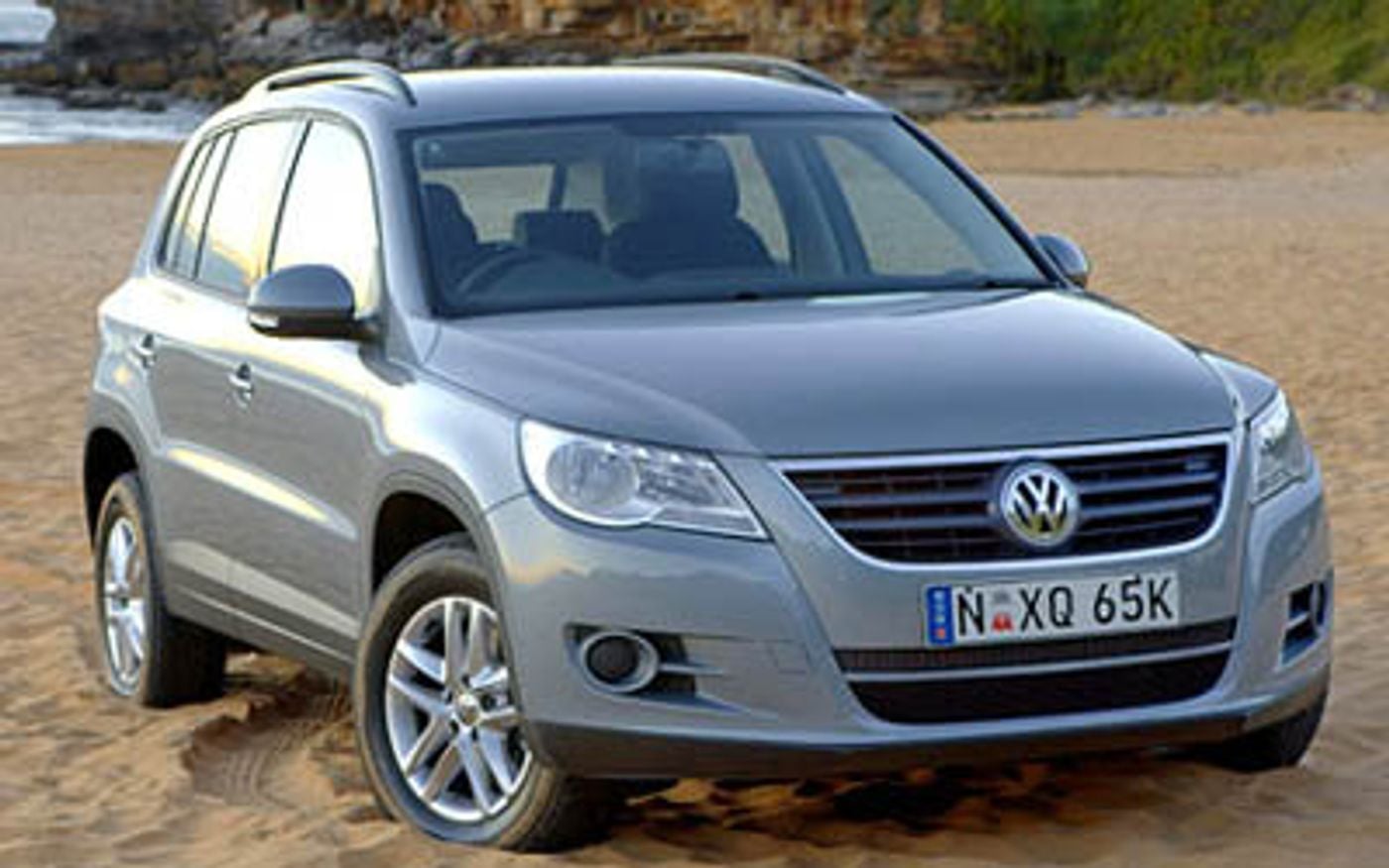

Volkswagen Tiguan Base (2010) price & specs
Save $$$ with CarExpert*
From
$36,690â€
Base
Overview
The 2010 Volkswagen Tiguan Base is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th January 1970. The Volkswagen Tiguan is regarded as a small SUV built in Germany with prices starting at $36,690 before on-road costs.
This Volkswagen Tiguan is powered by a 2.0L 4-cylinder engine that has 103 kW of power (at 4200 rpm) and 320 Nm of torque (at 1750 rpm) via a Six-speed Manual transmission. Volkswagen claims the Tiguan Base uses 6.6L/100km of Diesel in the combined city and highway cycle while putting out 173g of CO2. It has a 64L fuel tank, meaning it should be able to travel 970km per full tank
The Volkswagen Tiguan measures 1683mm (66.3 inches) in height, 4427mm (174.3 inches) in length, 1809mm (71.2 inches) in width with a 2604mm (102.5 inches) wheelbase that brings about a total of 1676kg (3694.9 lbs) of unladen weight. The Tiguan Base comes standard with 215/65 R16 front tyres and 215/65 R16 rear tyres. It has a 36 month, 100,000 km warranty.
The 2010 Volkswagen Tiguan Base has a 195mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Tiguan compare?
Quickly see how the 2010 Volkswagen Tiguan Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
60.73 - 86.47 kW/t
44.1 kW/t
111.92 kW/t
Boot Space
395 litres
395 litres
667 litres
Fuel Efficiency
6.6 - 10.1 L/100km
6.4 L/100km
12 L/100km
Vehicle Range
634 - 970 km
532 km
1,000 km
Price
$33,990 - $42,990
$24,990
$63,320
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
1 year
1 year
4 years
Towing & Off-Road Capability
Braked Towing Capacity
2,000 kg
1,200 kg
3,500 kg
Ground Clearance Unladen
195 mm
185 mm
323 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,427 mm
1,809 mm
1,683 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,427 mm |
| Overall Width | 1,809 mm |
| Overall Height | 1,683 mm |
| Wheelbase | 2,604 mm |
| Turning Circle | 12,000 mm |
Looking for complete Volkswagen Tiguan size & space specs?
Our Volkswagen Tiguan Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Volkswagen Tiguan Sales rolling 12-months#
Explore Volkswagen Tiguan Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 173
Standard Met: EU5
Engine
Bore Engine: 81.0
Engine (cc): 1968
Engine Configuration: In-Line
Engine Code: Cbab
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 95.5
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 16.9
Main Capacity (L): 64
Main Capacity Uk Gallons: 14.1
Main Fuel Type: Diesel
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 970
ADR 81/02 Calculated Vehicle Range (miles): 603
ADR 81/02 Combined (km/L): 15.2
ADR 81/02 Combined (L/100km): 6.6
ADR 81/02 Combined (miles per UK gallon): 43
ADR 81/02 Combined (mpg): 36
ADR 81/02 Country Highway (km/L): 17.9
ADR 81/02 Country Highway (L/100km): 5.6
ADR 81/02 Country Highway (miles per UK gallon): 50
ADR 81/02 Country Highway (mpg): 42
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 12.2
ADR 81/02 Urban (L/100km): 8.2
ADR 81/02 Urban (miles per UK gallon): 34
ADR 81/02 Urban (mpg): 29
Fuel Economy
ADR 81/02 (L/100km): 6.6
Performance
Acceleration 0 To 100 km/h: 10.5
Power
Maximum Power (hp/PS): 140
Maximum Power (kW): 103
Maximum Torque (Nm): 320
Measurement Standard: EEC
Rpm For Maximum Power Low: 4200
Rpm For Maximum Torque Low: 1750
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Manual
Number of Speeds: 6
Shift Lever Location: Floor
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Responsive Suspension
Driver Selectable: yes
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Locking Wheel Nuts: yes
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 6.5
Location: Rear
Rear Locking Wheel Nuts: yes
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 6.5
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: Pq35
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Capacity
Rear Seat Down (cu ft): 53.3
Rear Seat Down (L): 1510
Rear Seat Up to Lower Window (cu ft): 13.9
Rear Seat Up to Lower Window (L): 395
External Dimensions
Kerb to Kerb Turning Circle (mm): 12000
Front Track (in): 61.8
Front Track (mm): 1570
Ground Clearance Unladen (in): 7.7
Ground Clearance Unladen (mm): 195
Kerb To Kerb Turning Circle (ft): 39.4
Overall Height (in): 66.3
Overall Height (mm): 1683
Overall Length (in): 174.3
Overall Length (mm): 4427
Overall Width (in): 71.2
Overall Width (mm): 1809
Rear Track (in): 61.9
Rear Track (mm): 1571
Wheelbase (in): 102.5
Wheelbase (mm): 2604
Internal Dimensions
Front Headroom (in): 39.1
Front Headroom (mm): 992
Rear Headroom (in): 39.0
Rear Headroom (mm): 991
Front Hip Room (in): 58.3
Front Hip Room (mm): 1482
Rear Hip Room (in): 57.4
Rear Hip Room (mm): 1459
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Internal Height Adjustment: yes
Time Delay Switch Off: yes
Headlights
Low Beam Bulb Type: Halogen
Configuration: Twin
Lens Type: Ellipsoidal
Paint
External Colour: White
Type: Gloss
Sunroof
Front to Rear Sunroof Location: Front To Rear
Front to Rear Sunroof Operation: Electric
Front to Rear Sunroof Sliding: yes
Front to Rear Sunroof Sunshade: yes
Front to Rear Sunroof Tilting: yes
Front to Rear Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Headlight Cleaners
Cleaners Type: High Pressure
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Tinted Glass
Location: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Published Kerb Weight (kg): 1676
Published Kerb Weight (lb): 3695
Audio System
Brand Name: Other
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
Disc Player
Armrest Capacity: 6
Location: Armrest
Dashboard Capacity: 6
Location: Dashboard
Dashboard Media Type: CD
External Connections
Aux Jack (Front): yes
MP3 Devices Connection: yes
WMA Devices Connection: yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Other
Number of Speakers: 8
Upgraded Speakers: yes
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Entertainment Display Screen
Location: Front
Parking Assistance
Location: Front
Front Type: Full Automatic Parking
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Rear
Rear Type: Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Vanity Mirror
Driver Mirror Location: Driver
Driver Mirror Cover: yes
Location: Passenger
Passenger Mirror Cover: yes
Luxury Trim
Doors: Alloy Look
Gear Selector: Leather
Instrument Panel: Alloy Look
Crash Test Results
ANCAP Overall: 5.0
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Fore/Aft Adjustment: yes
Driver Front Seat Height Adjustment: yes
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining: yes
Driver Front Seat Reclining Type: Manual
Driver Front Seat Seatback Table: yes
Driver Front Seat Tilt Adjustment: yes
Driver Front Seat Type: Bucket
Passenger Front Seat Fore/Aft Adjustment: yes
Passenger Front Seat Height Adjustment: yes
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining: yes
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Seatback Table: yes
Passenger Front Seat Seat Folds To Table: yes
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Seat Back Storage
Location: Front
Front Type: Pocket
Air Conditioning
Type: Semi-Auto
Climate Control - Number of Zones: 1
Rear Outlet: yes
Anti-Theft Protection
Anti-Lift: yes
Interior Monitoring: yes
Peripheral: yes
Power Locks
Includes Trunk Hatch: yes
Operation: Remote
