Volkswagen Tiguan Highline (2019) price & specs
Save $$$ with CarExpert*
From
$50,150â€
Highline
Overview

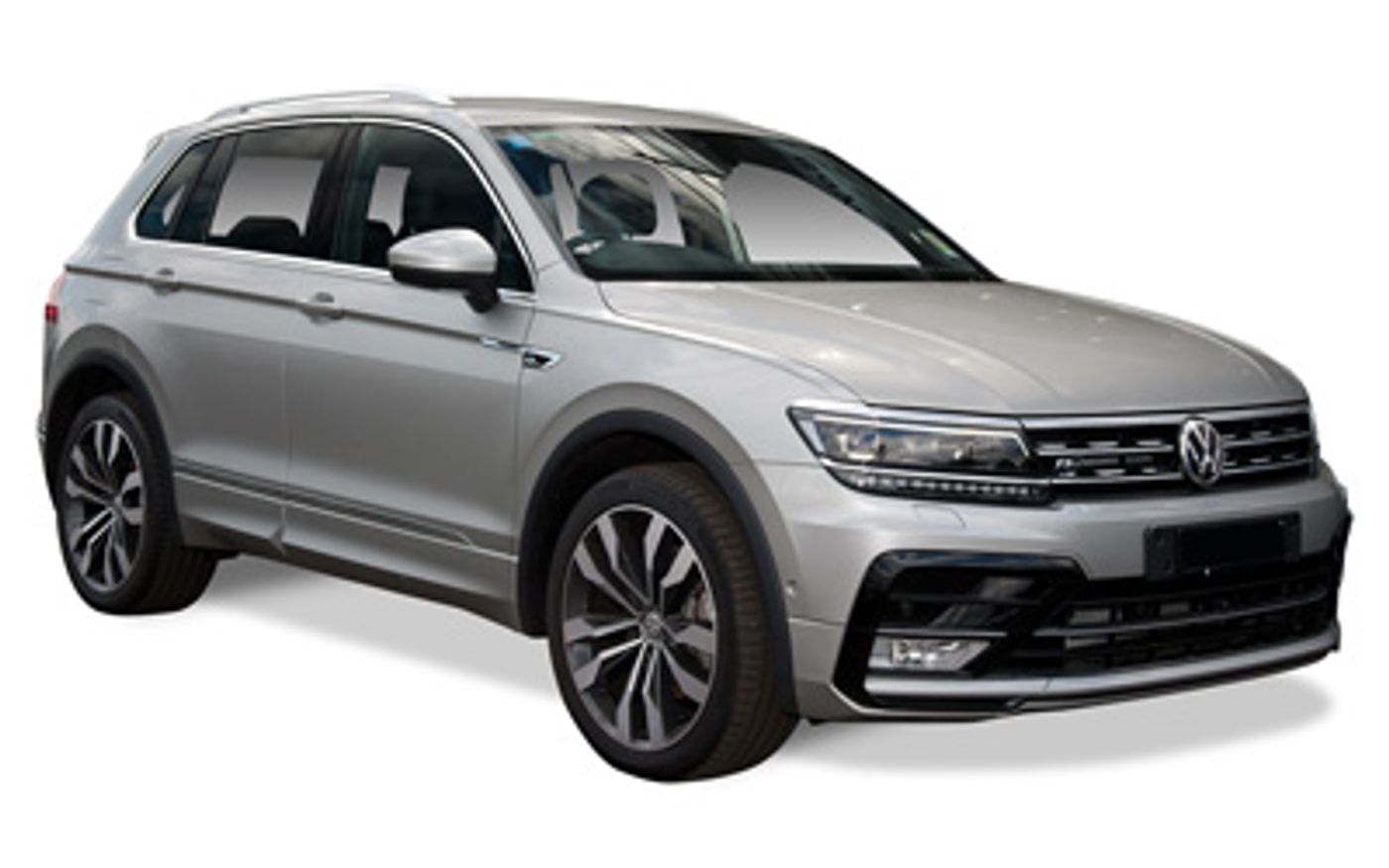

The 2019 Volkswagen Tiguan Highline is a four-wheel drive, 5-door SUV that was released to the Australian market on 5th May 2019 classified as a Mkii. The Volkswagen Tiguan is regarded as a small SUV built in Germany with prices starting at $50,150 before on-road costs.
This Volkswagen Tiguan is powered by a 2.0L 4-cylinder engine that has 162 kW of power (at 4500 rpm) and 350 Nm of torque (at 1500 rpm) via a 7 SP MANUAL transmission. Volkswagen claims the Tiguan Highline uses 8.1L/100km of Premium Unleaded in the combined city and highway cycle while putting out 186g of CO2. It has a 60L fuel tank, meaning it should be able to travel 741km per full tank
The Volkswagen Tiguan measures 1658mm (65.3 inches) in height, 4486mm (176.6 inches) in length, 1839mm (72.4 inches) in width with a 2681mm (105.6 inches) wheelbase that brings about a total of 1669kg (3679.5 lbs) of unladen weight. The Tiguan Highline comes standard with 235/50 R19 front tyres and 235/50 R19 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2019 Volkswagen Tiguan Highline has a 201mm ground clearance with a 2500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Tiguan compare?
Quickly see how the 2019 Volkswagen Tiguan Highline stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
66.15 - 88.91 kW/t
52.95 kW/t
115.85 kW/t
Boot Space
230 - 700 litres
131 litres
1,069 litres
Fuel Efficiency
6.6 - 8.3 L/100km
5.7 L/100km
10.9 L/100km
Vehicle Range
723 - 879 km
606 km
1,263 km
Price
$40,150 - $52,990
$35,990
$84,119
Warranty (Years)
3 - 5 years
3 years
7 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
2 - 4 years
1 year
5 years
Service Interval
12 months
3 months
12 months
Towing & Off-Road Capability
Braked Towing Capacity
1,800 - 2,400 kg
1,497 kg
3,500 kg
Approach Angle
18.3°
14.7°
36.6°
Departure Angle
22.2°
15.3°
29.2°
Ground Clearance Unladen
201 mm
180 mm
260 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,486 mm
1,839 mm
1,658 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,486 mm |
| Overall Width | 1,839 mm |
| Overall Height | 1,658 mm |
| Wheelbase | 2,681 mm |
| Load Capacity | 521 mm |
Looking for complete Volkswagen Tiguan size & space specs?
Our Volkswagen Tiguan Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Volkswagen Tiguan Sales rolling 12-months#
Explore Volkswagen Tiguan Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Steering: yes
Suspension: yes
Media Control
Touch Screen: yes
Memorised Adjustment
Door Mirror Position: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Mirrorlink: yes
Parking Assistance
Location: Front
Front Type: Full Automatic Parking
Location: Rear
Rear Type: Full Auto Park & Perpendicular & Exit
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Sensor
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Vehicle 360 View Camera
Manufacturer Name: Area View
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 186
Standard Met: EU6
Energy Recuperation
Engine: yes
Engine
Bore Engine: 82.5
Engine (cc): 1984
Engine Configuration: In-Line
Engine Code: Chhb
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 92.8
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 95
Minimum Fuel Type: Premium Unleaded
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 15.9
Main Capacity (L): 60
Main Capacity Uk Gallons: 13.2
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 9.2
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 741
ADR 81/02 Calculated Vehicle Range (miles): 460
ADR 81/02 Combined (km/L): 12.3
ADR 81/02 Combined (L/100km): 8.1
ADR 81/02 Combined (miles per UK gallon): 35
ADR 81/02 Combined (mpg): 29
ADR 81/02 Country Highway (km/L): 14.3
ADR 81/02 Country Highway (L/100km): 7.0
ADR 81/02 Country Highway (miles per UK gallon): 40
ADR 81/02 Country Highway (mpg): 34
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.0
ADR 81/02 Urban (L/100km): 10.0
ADR 81/02 Urban (miles per UK gallon): 28
ADR 81/02 Urban (mpg): 24
Fuel Economy
ADR 81/02 (L/100km): 8.1
Performance
Acceleration 0 To 100 km/h: 6.5
Maximum Speed (km/h): 220
Maximum Speed (mph): 137
Power
Maximum Power (hp/PS): 220
Maximum Power (kW): 162
Maximum Torque (Nm): 350
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4500
Rpm For Maximum Torque Low: 1500
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Automatic
Limited Slip Differential
Location: Front
Front Type: Electronic
Transmission
Automatic Mode: yes
Description: Dual Clutch Sequential Trans (Dct)
Gear Change Paddles: yes
Manual Sequential: yes
Number of Speeds: 7
Shift Lever Location: Steering Wheel
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Responsive Suspension
Driver Selectable: yes
Type: Electronic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 100
Location: Front
Front Wheels Tire Profile: 50
Front Wheels Tire Speed Rating: V
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Load Index: 100
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 50
Rear Wheels Tire Speed Rating: V
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 19
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 19
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Cargo Capacity
Measurement Standard: ISO
Rear Seat Down (cu ft): 58.4
Rear Seat Down (L): 1655
Rear Seat Up to Lower Window (cu ft): 21.7
Rear Seat Up to Lower Window (L): 615
External Dimensions
Front Track (in): 62.0
Front Track (mm): 1576
Ground Clearance Unladen (in): 7.9
Ground Clearance Unladen (mm): 201
Overall Height (in): 65.3
Overall Height (mm): 1658
Overall Length (in): 176.6
Overall Length (mm): 4486
Overall Width (in): 72.4
Overall Width (mm): 1839
Rear Track (in): 61.7
Rear Track (mm): 1566
Wall to Wall Turning Circle (ft): 37.7
Wall to Wall Turning Circle (mm): 11500
Wheelbase (in): 105.6
Wheelbase (mm): 2681
Internal Dimensions
Front Headroom (in): 41.3
Front Headroom (mm): 1049
Rear Headroom (in): 39.8
Rear Headroom (mm): 1012
Front Hip Room (in): 59.2
Front Hip Room (mm): 1503
Rear Hip Room (in): 58.7
Rear Hip Room (mm): 1491
Ramp Angles
Approach Angle: 17.4
Departure Angle: 16.4
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: MQB
Wheelbase Type: Short
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Hands Free Release: yes
Type: Lifting Gate
Headlight Control
Directional Headlights: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Black
Type: Gloss
Sunroof
Front to Rear Sunroof Location: Front To Rear
Front to Rear Sunroof Operation: Electric
Front to Rear Sunroof Sliding: yes
Front to Rear Sunroof Sunshade: yes
Front to Rear Sunroof Tilting: yes
Front to Rear Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2190
Gross Vehicle Weight (lb): 4828
Published Kerb Weight (kg): 1669
Published Kerb Weight (lb): 3680
Tare Weight (kg): 1637
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
Digital Media Card: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 8
Surround Sound: yes
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Luxury Trim
Centre Floor Console: Colour High Gloss
Doors: Colour High Gloss
Gear Selector: Alloy & Leather
Instrument Panel: Colour High Gloss
Airbags
Number of Airbags: 7
Autonomous Drive
Active Lane Control: yes
City: yes
Level: 2 - Partial Automation
Crash Test Results
ANCAP Date Tested: 20161005
ANCAP Overall: 5.00
ANCAP Pedestrian: Acceptable
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Standard: Ancap
ANCAP Version Tested: 110 Tdi Lhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Manufacturer Name: Side Assist
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: 2-Way Electric
Driver Front Seat Number of Electrical Adjustments: 7
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Type: Sports
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Memory
Location: Passenger
Passenger Front Seat Lumbar Type: 2-Way Electric
Passenger Front Seat Number of Electrical Adjustments: 7
Passenger Front Seat Reach Type: Memory
Passenger Front Seat Reclining Type: Memory
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 3
Rear Control For Climate Control: yes
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Rear Seats Location: Rear Seats
Ventilation System
Digital Display: yes
Heater Type: Combustion
Power Locks
Automatic Locking: yes
Operation: Card Key
Intermediate Service
Distance (km): 15000
Period (Months): 12
# Based on VFACTS and EVC data
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
