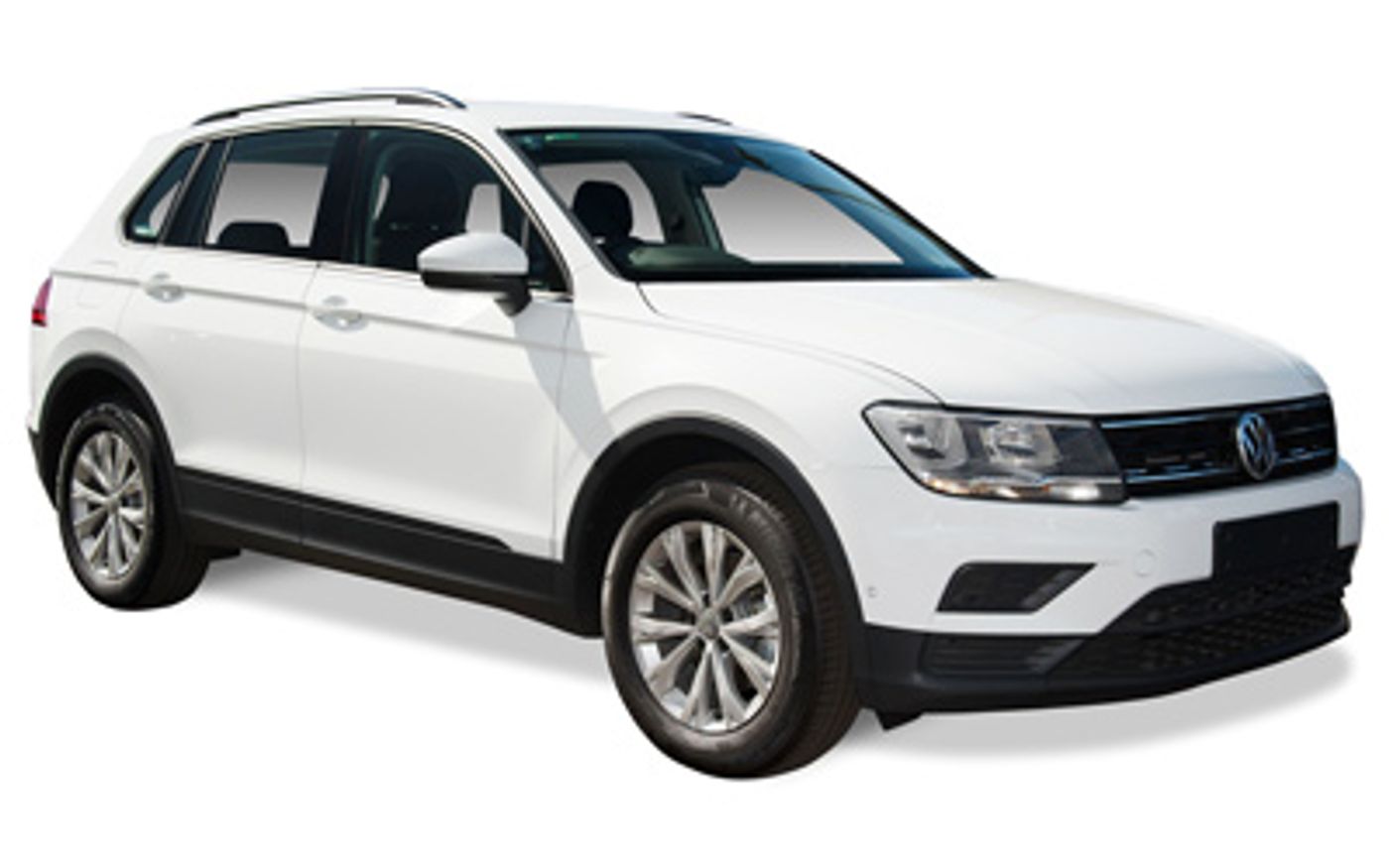

Volkswagen Tiguan Trendline (2020) price & specs
Save $$$ with CarExpert*
From
$34,990â€
Trendline
Overview
The 2020 Volkswagen Tiguan Trendline is a front-wheel drive, 5-door SUV that was released to the Australian market on 3rd July 2020 classified as a Mkii. The Volkswagen Tiguan is regarded as a small SUV built in Germany with prices starting at $34,990 before on-road costs.
This Volkswagen Tiguan is powered by a 1.4L 4-cylinder engine that has 110 kW of power (at 5000 rpm) and 250 Nm of torque (at 1500 rpm) via a Six-speed Automatic transmission. Volkswagen claims the Tiguan Trendline uses 7.1L/100km of Premium Unleaded in the combined city and highway cycle while putting out 163g of CO2. It has a 58L fuel tank, meaning it should be able to travel 817km per full tank
The Volkswagen Tiguan measures 1648mm (64.9 inches) in height, 4486mm (176.6 inches) in length, 1839mm (72.4 inches) in width with a 2681mm (105.6 inches) wheelbase that brings about a total of 1550kg (3417.2 lbs) of unladen weight. The Tiguan Trendline comes standard with 215/65 R17 front tyres and 215/65 R17 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2020 Volkswagen Tiguan Trendline has a 191mm ground clearance with a 1800kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Tiguan compare?
Quickly see how the 2020 Volkswagen Tiguan Trendline stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
70.97 - 97.06 kW/t
59.56 kW/t
113.45 kW/t
Boot Space
615 litres
128 litres
720 litres
Fuel Efficiency
7.1 - 8.1 L/100km
1.5 L/100km
10.4 L/100km
Vehicle Range
741 - 817 km
658 km
1,170 km
Price
$34,150 - $51,690
$24,990
$56,390
Warranty (Years)
5 years
5 years
7 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
1 year
1 year
4 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
1,980 - 2,190 kg
1,835 kg
2,960 kg
Braked Towing Capacity
1,800 - 2,500 kg
480 kg
3,000 kg
Approach Angle
17.4°
16.7°
29.9°
Departure Angle
16.4°
16.4°
32.2°
Ground Clearance Unladen
191 - 201 mm
145 mm
230 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,486 mm
1,839 mm
1,648 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,486 mm |
| Overall Width | 1,839 mm |
| Overall Height | 1,648 mm |
| Wheelbase | 2,681 mm |
| Load Capacity | 430 mm |
Looking for complete Volkswagen Tiguan size & space specs?
Our Volkswagen Tiguan Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Volkswagen Tiguan Sales rolling 12-months#
Explore Volkswagen Tiguan Features & Specs
Compressor
Compressor: Turbo
Number of Compressors: 1
Cylinder Shutdown
Number of Cylinders: 2
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 163
Standard Met: EU6
Energy Recuperation
Engine: yes
Engine
Bore Engine: 74.5
Engine (cc): 1395
Engine Configuration: In-Line
Engine Code: Czea
Engine (L): 1.4
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 80.0
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 95
Minimum Fuel Type: Premium Unleaded
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 15.3
Main Capacity (L): 58
Main Capacity Uk Gallons: 12.8
Main Type: Total
Interested in buying a Volkswagen Tiguan Trendline?
Save $$$ with CarExpert*
From
$34,990â€
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 8.0
Dashboard Centre 1 Touch Screen: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 817
ADR 81/02 Calculated Vehicle Range (miles): 508
ADR 81/02 Combined (km/L): 14.1
ADR 81/02 Combined (L/100km): 7.1
ADR 81/02 Combined (miles per UK gallon): 40
ADR 81/02 Combined (mpg): 33
ADR 81/02 Country Highway (km/L): 17.2
ADR 81/02 Country Highway (L/100km): 5.8
ADR 81/02 Country Highway (miles per UK gallon): 49
ADR 81/02 Country Highway (mpg): 41
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.8
ADR 81/02 Urban (L/100km): 9.3
ADR 81/02 Urban (miles per UK gallon): 30
ADR 81/02 Urban (mpg): 25
Fuel Economy
ADR 81/02 (L/100km): 7.1
Performance
Acceleration 0 To 100 km/h: 9.2
Maximum Speed (km/h): 200
Maximum Speed (mph): 124
Power
Maximum Power (hp/PS): 150
Maximum Power (kW): 110
Maximum Torque (Nm): 250
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5000
Rpm For Maximum Torque Low: 1500
Drive
Driven Wheels: Front
Limited Slip Differential
Location: Front
Front Type: Electronic
Transmission
Description: Dual Clutch Sequential Trans (Dct)
Manual Mode: yes
Manual Sequential: yes
Number of Speeds: 6
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 99
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Speed Rating: V
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 99
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Speed Rating: V
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: MQB
Wheelbase Type: Short
Cargo Capacity
Measurement Standard: ISO
Rear Seat Down (cu ft): 58.4
Rear Seat Down (L): 1655
Rear Seat Up to Lower Window (cu ft): 21.7
Rear Seat Up to Lower Window (L): 615
External Dimensions
Front Track (in): 62.3
Front Track (mm): 1582
Ground Clearance Unladen (in): 7.5
Ground Clearance Unladen (mm): 191
Overall Height (in): 64.9
Overall Height (mm): 1648
Overall Length (in): 176.6
Overall Length (mm): 4486
Overall Width (in): 72.4
Overall Width (mm): 1839
Rear Track (in): 61.9
Rear Track (mm): 1572
Wall to Wall Turning Circle (ft): 37.7
Wall to Wall Turning Circle (mm): 11500
Wheelbase (in): 105.6
Wheelbase (mm): 2681
Internal Dimensions
Front Headroom (in): 41.3
Front Headroom (mm): 1049
Rear Headroom (in): 39.8
Rear Headroom (mm): 1012
Front Hip Room (in): 59.2
Front Hip Room (mm): 1503
Rear Hip Room (in): 58.7
Rear Hip Room (mm): 1491
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
LED Lights
Location: Brake Lights
Location: Rear Lights
Paint
External Colour: Black
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1800
Gross Trailer Weight Braked (lb): 3968
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 1980
Gross Vehicle Weight (lb): 4365
Published Kerb Weight (kg): 1550
Published Kerb Weight (lb): 3417
Tare Weight (kg): 1499
Audio System
Colour Screen: yes
Digital Media Card: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 8
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Media Control
Touch Screen: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Mirrorlink: yes
Parking Assistance
Location: Front
Front Type: Full Automatic Parking
Location: Rear
Rear Type: Full Auto Park & Perpendicular & Exit
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Sensor
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Gear Selector: Alloy & Leather
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 7
Autonomous Drive
Active Lane Control: yes
Level: 1 - Driver Assistance
Crash Test Results
ANCAP Adult Occupant Score: 96.00
ANCAP Child Occupant Score: 80.00
ANCAP Date Tested: 20161005
ANCAP Overall: 5.00
ANCAP Pedestrian: Acceptable
ANCAP Pedestrian Score: 68.00
ANCAP Rating Year: 2016
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Safety Assist Score: 68.00
ANCAP Standard: Ancap
ANCAP Version Tested: 110 Tdi Lhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Manufacturer Name: Side Assist
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Manual
Ventilation System
Heater Type: Combustion
Power Locks
Includes Power Windows: yes
Operation: Remote
Intermediate Service
Distance (km): 15000
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
