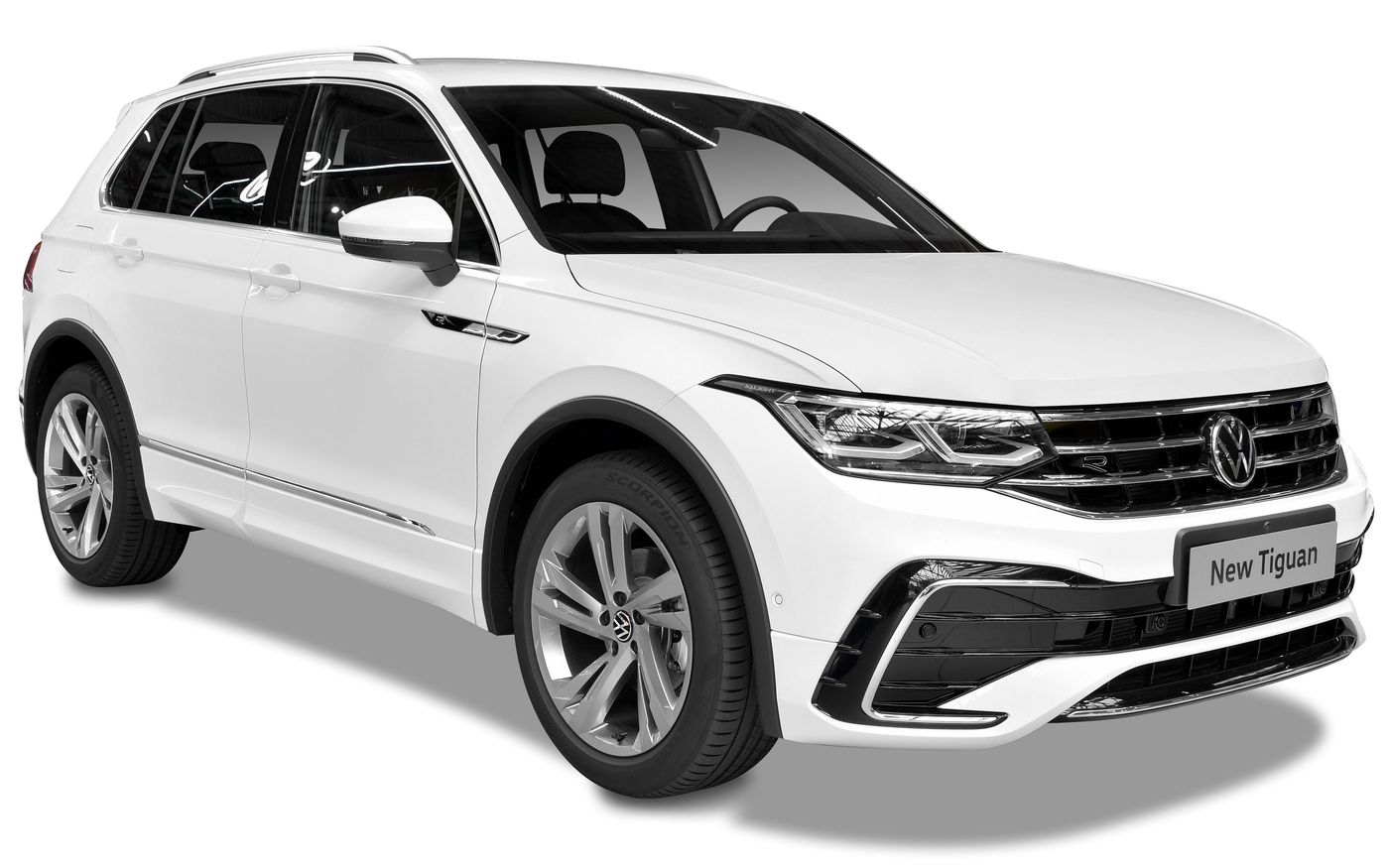

Volkswagen Tiguan R Grid Edition (2023) price & specs
Save $$$ with CarExpert*
From
$63,990â€
R Grid Edition
Overview
The 2023 Volkswagen Tiguan R Grid Edition is a four-wheel drive, 5-door SUV that was released to the Australian market on 3rd August 2022 classified as a Mkii. The Volkswagen Tiguan is regarded as a small SUV built in Germany with prices starting at $63,990 before on-road costs.
This Volkswagen Tiguan is powered by a 2.0L 4-cylinder engine that has 235 kW of power (at 5600 rpm) and 420 Nm of torque (at 2000 rpm) via a Seven-speed Automatic transmission. Volkswagen claims the Tiguan R Grid Edition uses 8.8L/100km of Premium Unleaded in the combined city and highway cycle while putting out 201g of CO2. It has a 58L fuel tank, meaning it should be able to travel 659km per full tank
The Volkswagen Tiguan measures 1668mm (65.7 inches) in height, 4520mm (178.0 inches) in length, 1859mm (73.2 inches) in width with a 2681mm (105.6 inches) wheelbase that brings about a total of 1758kg (3875.7 lbs) of unladen weight. The Tiguan R Grid Edition comes standard with 255/35 R21 front tyres and 255/35 R21 rear tyres. It requires a service every 24 months or 30,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2023 Volkswagen Tiguan R Grid Edition has a 177mm ground clearance with a 2200kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Tiguan compare?
Quickly see how the 2023 Volkswagen Tiguan R Grid Edition stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
66.75 - 133.67 kW/t
61.39 kW/t
133.67 kW/t
Boot Space
615 litres
150 litres
615 litres
Fuel Efficiency
6.1 - 8.8 L/100km
1.5 L/100km
9.5 L/100km
Vehicle Range
659 - 951 km
224 km
3,733 km
Price
$41,390 - $71,190
$27,290
$145,600
Warranty (Years)
5 years
5 years
10 years
Warranty (Distance)
Unlimited
150,000 km
Unlimited
Years on Sale
1 year
1 year
4 years
Service Interval
12 - 24 months
12 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,090 - 2,320 kg
1,835 kg
2,960 kg
Braked Towing Capacity
1,800 - 2,500 kg
480 kg
3,500 kg
Ground Clearance Unladen
170 - 201 mm
97 mm
230 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,520 mm
1,859 mm
inc mirror: 2,099 mm
inc mirror: 2,099 mm
1,668 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,520 mm |
| Overall Width | 1,859 mm |
| Overall Width (Inc Mirror) | 2,099 mm |
| Overall Height | 1,668 mm |
| Wheelbase | 2,681 mm |
| Load Capacity | 522 mm |
Looking for complete Volkswagen Tiguan size & space specs?
Our Volkswagen Tiguan Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Volkswagen Tiguan Sales rolling 12-months#
Explore Volkswagen Tiguan Features & Specs
R Grid Edition
2.0L, 7-speed auto, 5-door SUV, Petrol, 4x4
Save $$$ with CarExpert*
$63,990â€
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Steering: yes
Suspension: yes
Facial Gesture Control
Location: Front
Mobile Integration
Android Auto: yes
Android Wireless Connection: yes
Apple Carplay: yes
Apple Wireless Connection: yes
Mirrorlink: yes
Mirrorlink Wireless Connection: yes
Parking Assistance
Location: Front
Front Type: Semi-Automatic Parking
Location: Rear
Rear Type: Semi-Automatic Park & Perpendicular
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Sensor
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
USB Charging Port
Location: Front
Number of Ports in Front: 2
Location: Rear
Number of Ports in Rear: 1
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 170
CO2 Level (Combined): 201
CO2 Level (Urban): 254
Standard Met: EU6
Engine
Bore Engine: 82.5
Engine (cc): 1984
Engine Configuration: In-Line
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 92.8
Variable Valve Timing Camshaft: yes
Interested in buying a Volkswagen Tiguan R Grid Edition?
Save $$$ with CarExpert*
From
$63,990â€
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 98
Minimum Fuel Type: Premium Unleaded
Fuel Type: Premium Unleaded
Octane Number: 98
Fuel Tanks
Main Capacity Gal: 15.3
Main Capacity (L): 58
Main Capacity Uk Gallons: 12.8
Main Type: Total
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 9.20
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 10.30
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 659
ADR 81/02 Calculated Vehicle Range (miles): 409
ADR 81/02 Combined (km/L): 11.4
ADR 81/02 Combined (L/100km): 8.8
ADR 81/02 Combined (miles per UK gallon): 32
ADR 81/02 Combined (mpg): 27
ADR 81/02 Country Highway (km/L): 13.3
ADR 81/02 Country Highway (L/100km): 7.5
ADR 81/02 Country Highway (miles per UK gallon): 38
ADR 81/02 Country Highway (mpg): 31
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 8.9
ADR 81/02 Urban (L/100km): 11.2
ADR 81/02 Urban (miles per UK gallon): 25
ADR 81/02 Urban (mpg): 21
Fuel Economy
ADR 81/02 (L/100km): 8.8
Performance
Acceleration 0 To 100 km/h: 5.1
Maximum Speed (km/h): 250
Maximum Speed (mph): 155
Power
Maximum Power (hp/PS): 320
Maximum Power (kW): 235
Maximum Torque (Nm): 420
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5600
Rpm For Maximum Torque Low: 2000
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Automatic
Transmission
Description: Dual Clutch Sequential Trans (Dct)
Gear Change Paddles: yes
Manual Mode: yes
Manual Sequential: yes
Number of Speeds: 7
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Painted Calipers: yes
Power Steering
Variable Rack: yes
Vehicle Speed Proportional: yes
Steering Wheel
Heated: yes
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Touch Controls: yes
Type: Alloy & Leather
Alternate Suspension
Type: Sport
Responsive Suspension
Driver Selectable: yes
Type: Electronic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Location: Front
Front Wheels Tire Low Rolling Resistance: yes
Front Wheels Tire Profile: 35
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 255
Rear Wheels Tire Location: Rear
Rear Wheels Tire Low Rolling Resistance: yes
Rear Wheels Tire Profile: 35
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 21
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.5
Location: Rear
Rear Rim Diameter (In): 21
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.5
Black Trim
Around Side Windows: yes
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: MQB
Wheelbase Type: Short
Spoiler
Location: Roof
Cargo Capacity
Frunk Capacity (cu ft): 0.0
Frunk Capacity (L): 0
Measurement Standard: ISO
Rear Seat Down (cu ft): 58.4
Rear Seat Down (L): 1655
Rear Seat Up to Lower Window (cu ft): 21.7
Rear Seat Up to Lower Window (L): 615
External Dimensions
Front Track (in): 62.6
Front Track (mm): 1589
Ground Clearance Unladen (in): 7.0
Ground Clearance Unladen (mm): 177
Overall Height (in): 65.7
Overall Height (mm): 1668
Overall Length (in): 178.0
Overall Length (mm): 4520
Overall Width (in): 73.2
Overall Width Inc Mirror (in): 82.6
Overall Width Inc Mirror (mm): 2099
Overall Width (mm): 1859
Rear Track (in): 62.2
Rear Track (mm): 1580
Wall to Wall Turning Circle (ft): 37.7
Wall to Wall Turning Circle (mm): 11500
Wheelbase (in): 105.6
Wheelbase (mm): 2681
Internal Dimensions
Front Headroom (in): 41.3
Front Headroom (mm): 1049
Rear Headroom (in): 39.8
Rear Headroom (mm): 1012
Front Hip Room (in): 59.2
Front Hip Room (mm): 1503
Rear Hip Room (in): 58.7
Rear Hip Room (mm): 1491
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Auto Highbeam: yes
Directional Headlights: yes
Dusk Sensor: yes
Fog Light Function: yes
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Black
Type: Metallic
Sunroof
Front to Rear Sunroof Location: Front To Rear
Front to Rear Sunroof Operation: Electric
Front to Rear Sunroof Sliding: yes
Front to Rear Sunroof Sunshade: yes
Front to Rear Sunroof Tilting: yes
Front to Rear Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Chrome
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors Tilting for Reverse: Automatic
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Chrome
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2200
Gross Trailer Weight Braked (lb): 4850
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2280
Gross Vehicle Weight (lb): 5027
Published Kerb Weight (kg): 1758
Published Kerb Weight (lb): 3876
Tare Weight (kg): 1722
Trailer Noseweight (kg): 200
Audio System
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total Front USB Connections: 2
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 8
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Door Sill Protector
Illuminated: yes
Luxury Trim
Doors: Carbon Fibre Look
Gear Selector: Alloy & Leather
Instrument Panel: Carbon Fibre Look
Airbags
Number of Airbags: 7
Autonomous Drive
Active Lane Control: yes
Level: 2 - Partial Automation
Crash Test Results
ANCAP Adult Occupant Score: 96.0
ANCAP Child Occupant Score: 80.0
ANCAP Date Tested: 20161005
ANCAP Overall: 5.0
ANCAP Pedestrian Score: 68.0
ANCAP Rating Year: 2016
ANCAP Safety Assist Score: 68.0
ANCAP Standard: Ancap
ANCAP Version Tested: 110 Tdi Lhd
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Lumbar Type: Manual
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Lumbar Type: Manual
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Suede
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 3
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Rear Seats Location: Rear Seats
Ventilation System
Engine Heater: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 30000
Distance (miles): 18641
Period (Months): 24
Variable Distance Period: yes
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
