V10 Tdi
Overview

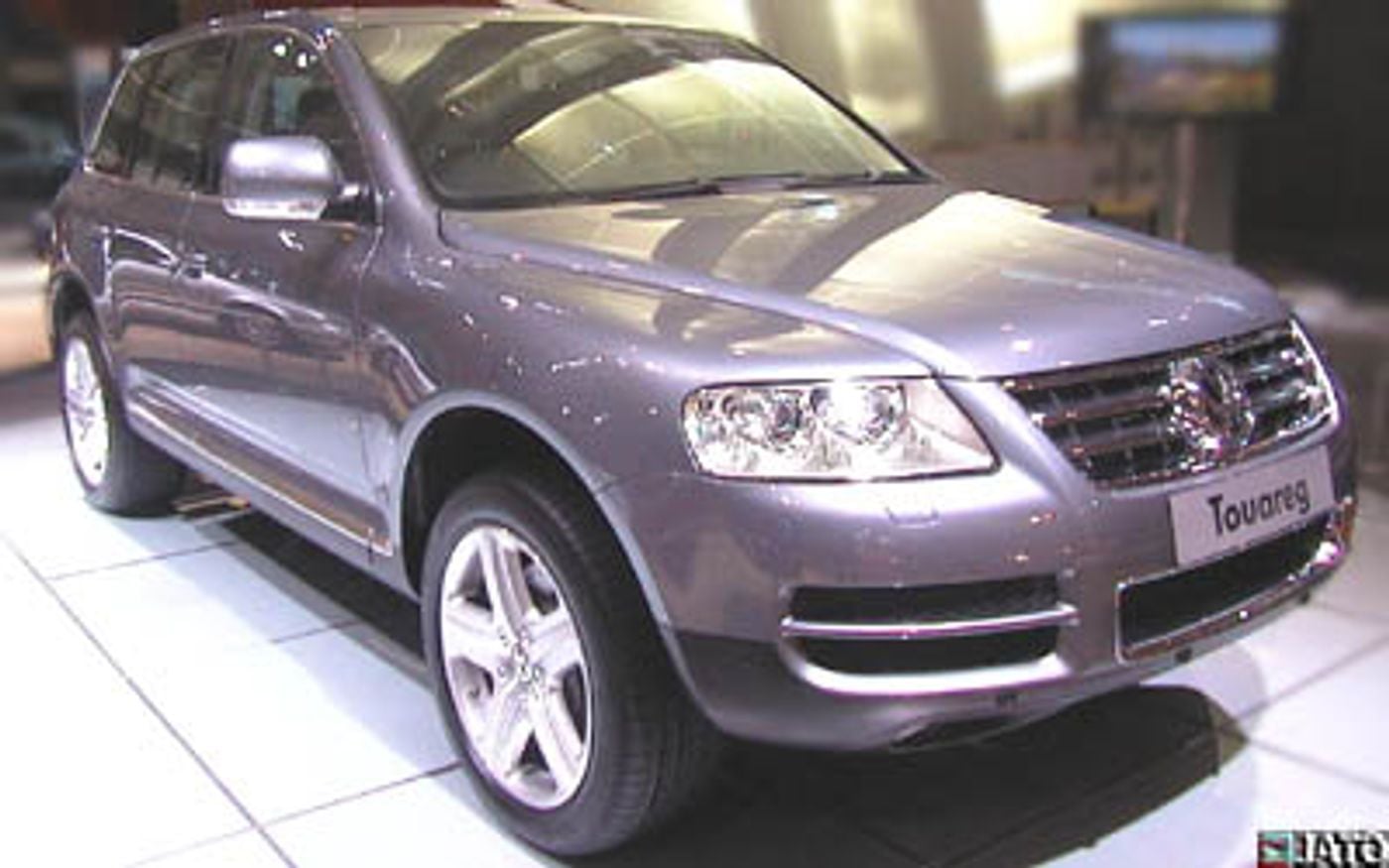

The 2003 Volkswagen Touareg V10 Tdi is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th January 1970. The Volkswagen Touareg is regarded as a Suv Large Luxury built in Germany and when it was new had prices starting at .
This Volkswagen Touareg is powered by a 4.9L 10-cylinder engine that has 230 kW of power (at 3750 rpm) and 750 Nm of torque (at 2000 rpm) via a Six-speed Automatic transmission. It has a 100L fuel tank
The Volkswagen Touareg measures 1703mm (67.0 inches) in height, 4754mm (187.2 inches) in length, 1928mm (75.9 inches) in width with a 2855mm (112.4 inches) wheelbase that brings about a total of 2524kg (5564.5 lbs) of unladen weight. The Touareg V10 Tdi comes standard with 275/45 R19 front tyres and 275/45 R19 rear tyres. It has a 36 month, 100,000 km warranty.
The 2003 Volkswagen Touareg V10 Tdi has a 300mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Touareg compare?
Quickly see how the 2003 Volkswagen Touareg V10 Tdi stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
73.17 - 98.4 kW/t
61.22 kW/t
114.61 kW/t
Boot Space
500 - 555 litres
465 litres
613 litres
Price
$67,600 - $138,500
$67,600
$203,400
Warranty (Years)
3 years
2 years
3 years
Warranty (Distance)
100,000 km
100,000 km
Unlimited
Years on Sale
1 - 3 years
1 year
7 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,945 - 3,080 kg
2,570 kg
3,080 kg
Braked Towing Capacity
3,500 kg
2,250 kg
3,500 kg
Approach Angle
28.4 - 33.2°
28°
33.2°
Departure Angle
28.1 - 33.6°
25°
33.6°
Ground Clearance Unladen
237 - 300 mm
218 mm
300 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,754 mm
1,928 mm
1,703 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,754 mm |
| Overall Width | 1,928 mm |
| Overall Height | 1,703 mm |
| Wheelbase | 2,855 mm |
| Turning Circle | 11,600 mm |
| Load Capacity | 556 mm |
Looking for complete Volkswagen Touareg size & space specs?
Our Volkswagen Touareg Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Volkswagen Touareg Sales rolling 12-months#
Explore Volkswagen Touareg Features & Specs
Compressor
Compressor: Turbo
Engine
Bore Engine: 81
Engine (cc): 4921
Compression Ratio: 18.5
Engine Configuration: V
Engine (L): 4.9
Number of Cylinders: 10
Number of Valves per Cylinder: 2
Stroke Engine: 95.5
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Pump Injection
Fuel Tanks
Main Capacity Gal: 26.4
Main Capacity (L): 100
Main Fuel Type: Diesel
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Fuel Consumption
AS 2877 Standard: As 2877
Performance
Acceleration 0 To 100 km/h: 7.8
Maximum Speed (km/h): 225
Maximum Speed (mph): 140
Power
Maximum Power (hp/PS): 313
Maximum Power (kW): 230
Maximum Torque (Nm): 750
Measurement Standard: EEC
Rpm For Maximum Power Low: 3750
Rpm For Maximum Torque Low: 2000
Differential Lock
Location: Centre
Location: Rear
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full-Time
Selection: Manual
Speed Limited Manual Only: yes
Dual Range Transmission
4wd Low High Low Transfer Selection: 4wd Low
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Electronic Control Auto Only: yes
Lock Up Auto Only: yes
Low High Gear Ranges: yes
Manual Mode: yes
Mode Select Auto Only: yes
Number of Speeds: 6
Type: Automatic
ABS
Location: 4-Wheel
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Steering Wheel
Electric Adjustment: yes
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: air
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: air
Rear Stabilizer Bar: yes
Rear Type: Wishbone
Rear Wheel Dependence: Independent
Suspension Levelling
Location: Front
Front Operation: Automatic
Location: Rear
Rear Operation: Automatic
Tires
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Width: 275
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Width: 275
Wheels
Location: Front
Front Wheels Rim Diameter (In): 19
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 9
Location: Rear
Rear Rim Diameter (In): 19
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 9
Body Style
Body Type: SUV
Driver Location: RHD
Local Body Type: SUV
Chrome Bright Trim
Bright Chrome Trim Around Side Windows: yes
Bright Chrome Trim on Bumpers: yes
Bright Chrome Trim on Side of Body: yes
Non-Corrosive Body
Non-Corrosive Panel Location: Part
Non-Corrosive Panel Type: Alloy
Cargo Capacity
Rear Seat Down (cu ft): 53.9
Rear Seat Down (L): 1525
Rear Seat Up to Lower Window (cu ft): 17.7
Rear Seat Up to Lower Window (L): 500
External Dimensions
Kerb to Kerb Turning Circle (mm): 11600
Front Track (in): 64.8
Front Track (mm): 1645
Ground Clearance Unladen (in): 11.8
Ground Clearance Unladen (mm): 300
Kerb To Kerb Turning Circle (ft): 38.1
Overall Height (in): 67
Overall Height (mm): 1703
Overall Length (in): 187.2
Overall Length (mm): 4754
Overall Width (in): 75.9
Overall Width (mm): 1928
Rear Track (in): 65.2
Rear Track (mm): 1657
Wheelbase (in): 112.4
Wheelbase (mm): 2855
Internal Dimensions
Front Headroom (in): 39.7
Front Headroom (mm): 1008
Rear Headroom (in): 38.9
Rear Headroom (mm): 987
Front Hip Room (in): 59.2
Front Hip Room (mm): 1504
Rear Hip Room (in): 59.3
Rear Hip Room (mm): 1505
Front Leg Room (in): 35.4
Front Leg Room (mm): 898
Rear Leg Room (in): 26.4
Rear Leg Room (mm): 671
Ramp Angles
Approach Angle: 33.2
Departure Angle: 33.6
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Headlight Control
Dusk Sensor: yes
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Bi-Xenon
Lens Type: Ellipsoidal
Paint
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Headlight Cleaners
Cleaners Type: High Pressure
Power Windows
Front Electric Windows: Front
Number of Front Express Power Windows: 2
Safety Operation for Front Power Windows: yes
Rear Electric Windows: Rear
Safety Operation for Rear Power Windows: yes
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 3080
Gross Vehicle Weight (lb): 6790
Published Kerb Weight (kg): 2524
Published Kerb Weight (lb): 5564
Antenna
Type: Diversity
Audio System
In-Dash CD: yes
Radio Type: Am/Fm
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 11
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Load Restraint
Type: net
Entertainment Display Screen
Location: Front
Front TV: yes
Memorised Adjustment
Door Mirror Position: yes
Wheel Position: yes
Parking Distance System
Location: Front
Location: Rear
Reading Lights
Location: Front
Location: Rear
Remote Trunk Hatch Release
Operation: Remote Control
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Luxury Trim
Centre Floor Console: Wood Or Woodlook
Doors: Wood Or Woodlook
Gear Selector: Wood & Leather
Instrument Panel: Wood Or Woodlook
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 2
Rear Seats Height Adjustable: yes
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Height Adjustable: yes
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Adjustment: yes
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Number of Electrical Adjustments: 6
Driver Front Seat Tilt Adjustment: yes
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Adjustment: yes
Location: Passenger
Passenger Front Seat Lumbar Adjustment: yes
Passenger Front Seat Number of Electrical Adjustments: 6
Passenger Front Seat Tilt Adjustment: yes
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Cup Holders
Location: Front Seats
Front Seats Type: Fixed
Door Pockets Bins
Location: Driver
Location: Passenger
Location: Rear
Seat Back Storage
Location: Front
Air Conditioning
Fully Automated Climate Control: yes
Rear Control For Climate Control: yes
Rear Outlet: yes
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Rear Seats Location: Rear Seats
Ventilation System
Digital Display: yes
Micro Filter: yes
Anti-Theft Protection
Interior Monitoring: yes
Peripheral: yes
Remote Operation: yes
Power Locks
Operation: Remote
