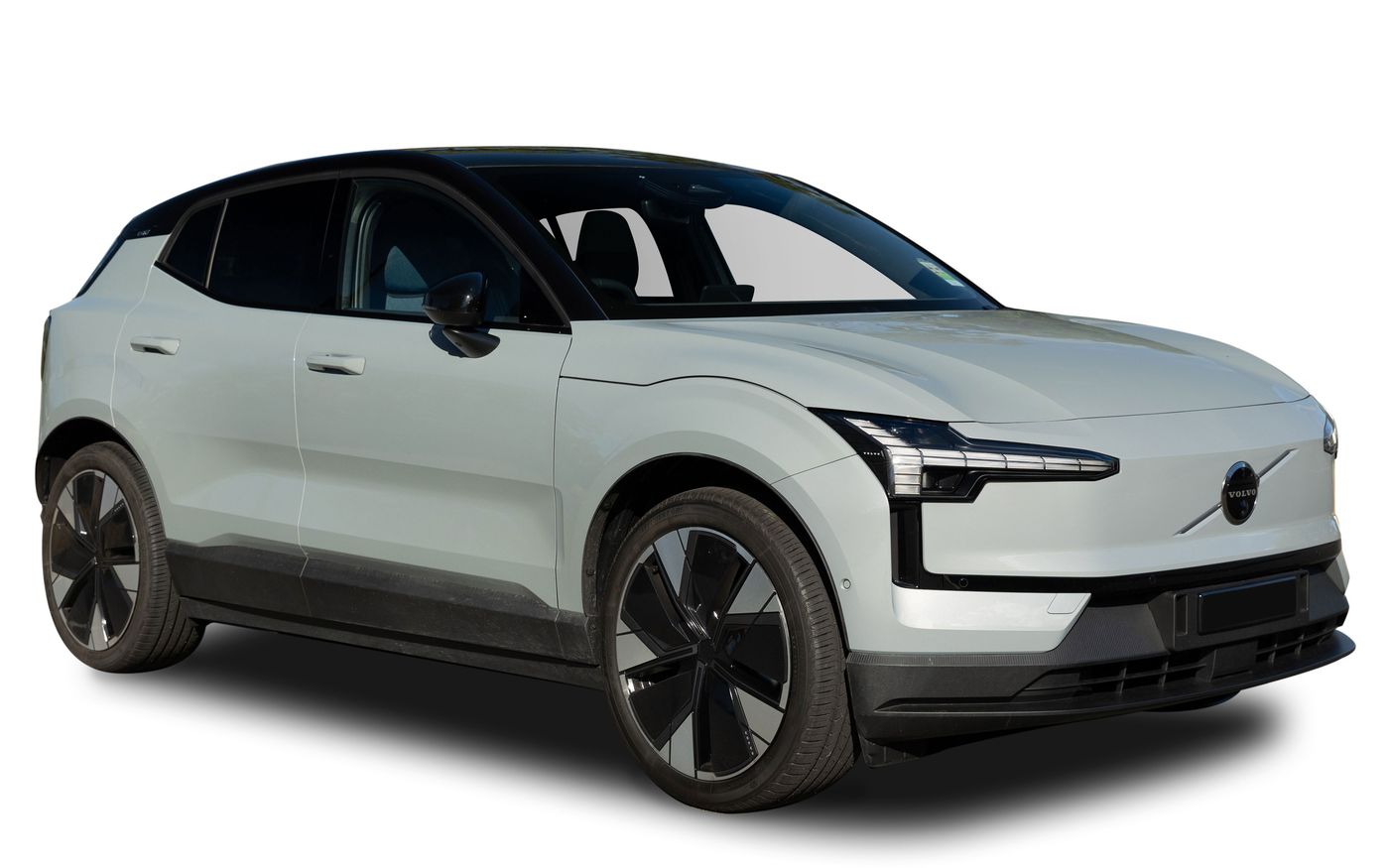

Volvo EX30 Ultra (2024) price & specs
Save $$$ with CarExpert*
From
$69,990â€
Ultra
Overview
The 2024 Volvo EX30 Ultra is a four-wheel drive, 5-door SUV that was released to the Australian market on 6th July 2023. The Volvo EX30 is regarded as a Suv Small Luxury built in China with prices starting at $69,990 before on-road costs.
This Volvo EX30 uses a fully electric engine.
The Volvo EX30 measures 1549mm (61.0 inches) in height, 4233mm (166.7 inches) in length, 1836mm (72.3 inches) in width with a 2650mm (104.3 inches) wheelbase that brings about a total of 1943kg (4283.6 lbs) of unladen weight. The EX30 Ultra comes standard with 245/40 R20 front tyres and 245/40 R20 rear tyres. It has a 60 month, unlimited km warranty.
The 2024 Volvo EX30 Ultra has a 165mm ground clearance with a 1600kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the EX30 compare?
Quickly see how the 2024 Volvo EX30 Ultra stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
109.29 - 162.12 kW/t
68.63 kW/t
165.63 kW/t
Boot Space
318 - 622 litres
220 litres
622 litres
Price
$59,990 - $69,990
$36,890
$105,300
Warranty (Years)
5 years
4 years
7 years
Warranty (Distance)
Unlimited
Unlimited
Years on Sale
1 - 3 years
5 years
8 years
Service Interval
24 months
12 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,235 - 2,338 kg
1,740 kg
2,650 kg
Braked Towing Capacity
1,400 - 1,600 kg
400 kg
2,100 kg
Approach Angle
17.9°
14°
22°
Departure Angle
16.3°
16.3°
30.4°
Ground Clearance Unladen
165 mm
130 mm
221 mm
Battery & Charging
Max. battery kilowatt hour
69 kWh
0.4 kWh
82 kWh
AC Charging (max kW)
11 kW
3.6 kW
22 kW
DC Fast Charging (max kW)
134 - 153 kW
22 kW
200 kW
Vehicle Range (EV)
460 - 480 km
1 km
560 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,233 mm
1,836 mm
inc mirror: 2,032 mm
inc mirror: 2,032 mm
1,549 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,233 mm |
| Overall Width | 1,836 mm |
| Overall Width (Inc Mirror) | 2,032 mm |
| Overall Height | 1,549 mm |
| Wheelbase | 2,650 mm |
| Turning Circle | 10,600 mm |
| Load Capacity | 395 mm |
Looking for complete Volvo EX30 size & space specs?
Our Volvo EX30 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Volvo EX30 Features & Specs
Automatic Door Closing
Rear Boot Hatch: yes
Cruise Control
Adaptive Cruise Control Linked To Mapping: yes
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Embedded Infotainment User Interface
UI Number of Months Online Services: 48
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: 0
Android Wireless Connection: yes
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Apple Wireless Connection: yes
Mirrorlink Months Subscription Included: 0
Over Air Updates
Type: Ota Updates
Parking Assistance
Location: Rear
Rear Type: Full Auto Park & Exit
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Remote Battery Management
Includes Battery Status Checking: yes
Includes Charge Completion Alert: yes
Includes Remote Battery Pre Heating: yes
Includes Remote Charge Activation: yes
Includes Timer Remote Charge Activation: yes
Remote HVAC Control
Includes Cooling: yes
Includes Heating: yes
Includes Phone: yes
Includes Steering Wheel Heating: yes
Months Subscription Included: 48
Remote Services
Beep Flash: yes
Driving History Analysis: yes
Find My Car: yes
Immobilisation: yes
Months Subscription Included: 48
Remote Lock Unlock: yes
Remote Seat Heating Control: yes
Send Destination To Car: yes
Speed Alert: yes
Theft Alert: yes
Tow Away Alert: yes
Vehicle Start: yes
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Telematics
Advanced Auto Collision Notification: yes
Breakdown Assistance: yes
Concierge Months Included: 0
Connection Type: Via Sim In Vehicle
Tracker System: yes
USB Charging Port
Location: Front
Number of Ports in Front: 2
Location: Rear
Number of Ports in Rear: 2
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Virtual Assistant: Google
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 0
CO2 Level (Combined): 0
CO2 Level (Urban): 0
Standard Met: ZEV
Energy Recuperation
Single Pedal Driving: yes
WLTP Emissions
BEV (Combined): 0.0
BEV Testing Type: BEV
Fuel
Generic Primary Fuel Type: Electric
Fuel Type: Electric
Charging Connector
CCS (Combo) Charging Socket DC 1: yes
CCS (Combo) Location of DC 1 Socket: Rear Side
CCS (Combo) Type: Ccs (Combo)
Type 2 (Mennekes) Charging Socket AC 1: yes
Type 2 (Mennekes) Location of AC 1 Socket: Rear Side
Type 2 (Mennekes) Type: Type 2 (Mennekes)
Charging Information
Mode 2 Amps: 10
Mode 2 Duration: 40.00
Mode 2 Quoted kW Supplied To Vehicle: 2.00
Mode 2 Scenario: Mode 2
Mode 2 State of Charge Ends At (%): 100
Mode 2 State of Charge Starts At (%): 0
Mode 2 Voltage: 230
Mode 3 Calc Duration Max Supplied 0% To 100%: 6.89
Mode 3 Calculated Duration 3.7 kW 0% To 100%: 20.60
Mode 3 Calculated Duration 7.4 kW 0% To 100%: 10.30
Mode 3 Duration: 8.00
Mode 3 Max kW Supplied To Vehicle: 11.00
Mode 3 Scenario: Mode 3
Mode 3 State of Charge Ends At (%): 100
Mode 3 State of Charge Starts At (%): 0
Mode 4 Calc Duration Max Supplied 10% To 80%: 0.43
Mode 4 Calculated Duration 100 kW 10% To 80%: 0.65
Mode 4 Calculated Duration 50 kW 10% To 80%: 1.31
Mode 4 Duration: 0.44
Mode 4 Max kW Supplied To Vehicle: 153.00
Mode 4 Quoted kW Supplied To Vehicle: 153.00
Mode 4 Scenario: Mode 4
Mode 4 State of Charge Ends At (%): 80
Mode 4 State of Charge Starts At (%): 10
Electric Driven Wheels
Electric Driven Wheels: 4x4
Electric Motor
Motor 1 Type: Ac Perm Magnet Synchronous
Motor 1 Max Torque Motor (Nm): 343
Motor 1 Location: Rear
Motor 1 Number: 1
Motor 1 Power Output (hp/PS): 272.0
Motor 1 Power Output Motor (kW): 200.0
Motor 2 Electric Motor Type: Ac Perm Magnet Synchronous
Motor 2 Max Torque Motor (Nm): 200
Motor 2 Motor Location: Front
Motor 2 Number: 2
Motor 2 Power Output Motor (hp/PS): 156.4
Motor 2 Power Output Motor (kW): 115.0
Electric Power Source
Actively Heated Cooled Battery: yes
Battery Cell Type: Pouch
Battery Supplier: Lg Energy Solution
Battery Type: Nickel Manganese Cobalt
Battery Voltage: 400.0
High Power Charger: yes
Max Wireless Charging (kW): 0.0
Maximum Battery (kWh): 69.00
Onboard Charger: 11.0
Range (km): 460.00
Range (miles): 285.83
Useable Battery (kWh): 64.00
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 12.30
Dashboard Centre 1 Touch Screen: yes
Performance
Acceleration 0 To 100 km/h: 3.6
Max Speed On Electric Power Only (km/h): 180
Maximum Speed (km/h): 180
Maximum Speed (mph): 112
Power
Maximum Power (hp/PS): 428
Maximum Power hp/PS Electric Motor: 428
Maximum Power (kW): 315
Maximum Power kW Electric Motor: 315
Maximum Torque (Nm): 543
Maximum Torque Electric Motor (Nm): 543
Power Consumption
Combined (km/kWh): 0.2
Combined (kWh/100 miles): 25.3
Combined (kWh/100km): 15.7
Combined (kWh/km): 0.5
Combined (kWh/mile): 0.3
Combined (miles/kWh): 0.3
Combined (Wh/km): 157
Combined (Wh/mile): 253
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Automatic
Transmission
Description: Automatic
Number of Speeds: 1
Shift Lever Location: Column
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Heated: yes
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Alloy & Synthetic Leather
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Location: Front
Front Wheels Tire Profile: 40
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 245
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 40
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 245
Wheels
Location: Front
Front Wheels Rim Diameter (In): 20
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.0
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 20
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.0
Rear Two Tone: yes
Cargo Capacity
Frunk Capacity (cu ft): 0.2
Frunk Capacity (L): 7
Measurement Standard: ISO
Rear Seat Down (cu ft): 31.9
Rear Seat Down (L): 904
Rear Seat Up to Lower Window (cu ft): 22.0
Rear Seat Up to Lower Window (L): 622
External Dimensions
Kerb to Kerb Turning Circle (mm): 10600
Front Track (in): 62.6
Front Track (mm): 1590
Ground Clearance Unladen (in): 6.5
Ground Clearance Unladen (mm): 165
Kerb To Kerb Turning Circle (ft): 34.8
Overall Height (in): 61.0
Overall Height (mm): 1549
Overall Length (in): 166.7
Overall Length (mm): 4233
Overall Width (in): 72.3
Overall Width Inc Mirror (in): 80.0
Overall Width Inc Mirror (mm): 2032
Overall Width (mm): 1836
Rear Track (in): 62.8
Rear Track (mm): 1595
Wall to Wall Turning Circle (ft): 36.1
Wall to Wall Turning Circle (mm): 11000
Wheelbase (in): 104.3
Wheelbase (mm): 2650
Internal Dimensions
Front Headroom (in): 40.1
Front Headroom (mm): 1018
Rear Headroom (in): 38.3
Rear Headroom (mm): 974
Front Hip Room (in): 54.3
Front Hip Room (mm): 1379
Rear Hip Room (in): 46.3
Rear Hip Room (mm): 1175
Front Leg Room (in): 41.9
Front Leg Room (mm): 1063
Rear Leg Room (in): 32.3
Rear Leg Room (mm): 821
Front Shoulder Room (in): 55.1
Front Shoulder Room (mm): 1400
Rear Shoulder Room (in): 53.0
Rear Shoulder Room (mm): 1346
Ramp Angles
Approach Angle: 17.9
Departure Angle: 16.3
Black Trim
Around Side Windows: yes
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: SEA
Wheelbase Type: Short
Spoiler
Location: Roof
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Active High Beam: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Complex Surface
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Yellow
Two Tone: yes
Type: Gloss
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Toned
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Toned
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1600
Gross Trailer Weight Braked (lb): 3527
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2338
Gross Vehicle Weight (lb): 5154
Kerb Weight Inc Driver (kg): 1943
Kerb Weight Inc Driver (lb): 4284
Kerb Weight Includes Driver: yes
Published Kerb Weight (kg): 1943
Published Kerb Weight (lb): 4284
Tare Weight (kg): 1943
Audio System
Digital Radio: yes
Radio Type: Am/Fm
System Power (W): 1040
Touch Screen: yes
External Connections
USB (Front): yes
Total 3rd Row USB Connections: 0
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Harman/Kardon
Number of Speakers: 9
Subwoofer: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Airbags
Number of Airbags: 7
Autonomous Drive
Active Lane Control: yes
Highway Assist: yes
Level: 2 - Partial Automation
Front Airbag
Location: Driver
Location: Passenger
Front Cross Traffic Collision Avoidance
Includes Braking: yes
Type: Sensor
Front Seat Belts
Driver Height Adjustable: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Integrated: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Active Without Turn Signal: yes
Includes Collision Avoidance: yes
Rear Cross Traffic Collision Avoidance
Includes Braking: yes
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: 2-Way Electric
Driver Front Seat Number of Electrical Adjustments: 6
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Thigh Support Type: Electric
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Lumbar Type: 2-Way Electric
Passenger Front Seat Number of Electrical Adjustments: 6
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Thigh Support Type: Electric
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Wool
Main Seat Material: Wool
Marketed As Sustainable Vegan: yes
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Electric Heater: yes
Heat Pump: yes
Ion Filtering: yes
Touch Screen Controls: yes
Power Locks
Operation: Card Key
Intermediate Service
Period (Months): 24
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
