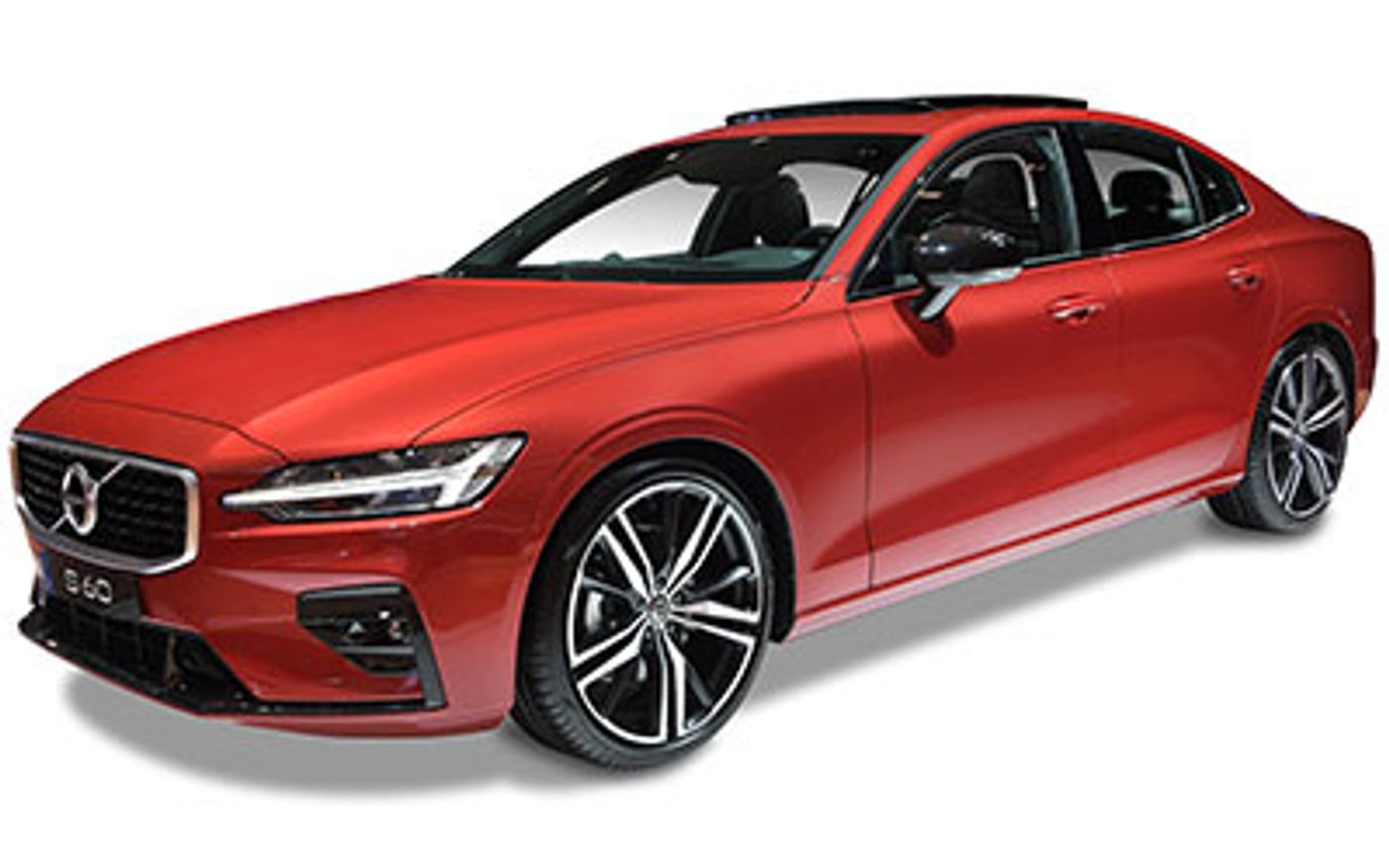

Volvo S60 R-Design (2020) price & specs
Save $$$ with CarExpert*
From
$64,990â€
R-Design
Overview
The 2020 Volvo S60 R-Design is a four-wheel drive, 4-door Sedan that was released to the Australian market on 3rd July 2019. The Volvo S60 is regarded as a Medium Luxury built in USA with prices starting at $64,990 before on-road costs.
This Volvo S60 is powered by a 2.0L 4-cylinder engine that has 192 kW of power (at 5700 rpm) and 400 Nm of torque (at 2500 rpm) via an Eight-speed Automatic transmission. Volvo claims the S60 R-Design uses 7.3L/100km of Premium Unleaded in the combined city and highway cycle while putting out 167g of CO2. It has a 60L fuel tank, meaning it should be able to travel 822km per full tank
The Volvo S60 measures 1437mm (56.6 inches) in height, 4761mm (187.4 inches) in length, 1850mm (72.8 inches) in width with a 2872mm (113.1 inches) wheelbase that brings about a total of 1804kg (3977.1 lbs) of unladen weight. The S60 R-Design comes standard with 235/40 R19 front tyres and 235/40 R19 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the S60 compare?
Quickly see how the 2020 Volvo S60 R-Design stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
103.66 - 152.23 kW/t
72.61 kW/t
261.04 kW/t
Boot Space
390 - 442 litres
300 litres
804 litres
Fuel Efficiency
2 - 7.3 L/100km
2 L/100km
10.7 L/100km
Vehicle Range
822 km
573 km
1,347 km
Price
$54,990 - $85,990
$54,990
$171,000
Warranty (Years)
3 - 5 years
3 years
5 years
Warranty (Distance)
Unlimited
80,000 km
Unlimited
Years on Sale
4 years
1 year
6 years
Service Interval
12 months
12 months
Battery & Charging
Max. battery kilowatt hour
11.6 kWh
1.5 kWh
100 kWh
AC Charging (max kW)
3.7 kW
3.7 kW
11 kW
Vehicle Range (EV)
52 km
52 km
722 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,761 mm
1,850 mm
1,437 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,761 mm |
| Overall Width | 1,850 mm |
| Overall Height | 1,437 mm |
| Wheelbase | 2,872 mm |
| Turning Circle | 11,300 mm |
Looking for complete Volvo S60 size & space specs?
Our Volvo S60 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Volvo S60 Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Stability Control: yes
Steering: yes
Suspension: yes
Entertainment Display Screen
Front DVD: yes
Location: Front
Front Screen Size (in): 9.0
Media Control
Touch Screen: yes
Memorised Adjustment
Door Mirror Position: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Assistance
Location: Rear
Rear Type: Full Auto Park & Exit
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Memory Seat Adjustments: yes
Includes Programmable Settings: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Air Conditioning: yes
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 167
Standard Met: EU6
Engine
Bore Engine: 82.0
Engine (cc): 1969
Engine Configuration: In-Line
Engine Code: 25
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 93.2
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 98
Minimum Fuel Type: Premium Unleaded
Fuel Type: Premium Unleaded
Octane Number: 98
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 15.9
Main Capacity (L): 60
Main Capacity Uk Gallons: 13.2
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Number of Screens: 1
Dashboard Centre 1 Screen Size (in): 9.0
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 12.3
Instrument Cluster
Head Up Display: Windscreen
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 822
ADR 81/02 Calculated Vehicle Range (miles): 511
ADR 81/02 Combined (km/L): 13.7
ADR 81/02 Combined (L/100km): 7.3
ADR 81/02 Combined (miles per UK gallon): 39
ADR 81/02 Combined (mpg): 32
ADR 81/02 Country Highway (km/L): 16.4
ADR 81/02 Country Highway (L/100km): 6.1
ADR 81/02 Country Highway (miles per UK gallon): 46
ADR 81/02 Country Highway (mpg): 39
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.6
ADR 81/02 Urban (L/100km): 9.4
ADR 81/02 Urban (miles per UK gallon): 30
ADR 81/02 Urban (mpg): 25
Fuel Economy
ADR 81/02 (L/100km): 7.3
Power
Maximum Power (hp/PS): 261
Maximum Power (kW): 192
Maximum Torque (Nm): 400
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5700
Rpm For Maximum Torque Low: 2500
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Automatic
Limited Slip Differential
Location: Front
Front Type: Electronic
Transmission
Code: Awf22awd
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Variable Rack: yes
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Alternate Suspension
Type: Sport
Responsive Suspension
Driver Selectable: yes
Type: Electronic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Diameter: 18
Front Wheels Tire Load Index: 96
Location: Front
Front Wheels Tire Profile: 40
Front Wheels Tire Speed Rating: W
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Diameter: 18
Rear Wheels Tire Load Index: 96
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 40
Rear Wheels Tire Speed Rating: W
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 19
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.0
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 19
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.0
Rear Two Tone: yes
Body Style
Body Type: Sedan
Local Body Type: Sedan
Platform Code: SPA
Wheelbase Type: Short
Cargo Capacity
Measurement Standard: SAE
Rear Seat Up to Lower Window (cu ft): 15.6
Rear Seat Up to Lower Window (L): 442
External Dimensions
Kerb to Kerb Turning Circle (mm): 11300
Front Track (in): 63.0
Front Track (mm): 1600
Kerb To Kerb Turning Circle (ft): 37.1
Overall Height (in): 56.6
Overall Height (mm): 1437
Overall Length (in): 187.4
Overall Length (mm): 4761
Overall Width (in): 72.8
Overall Width (mm): 1850
Rear Track (in): 63.0
Rear Track (mm): 1600
Wall to Wall Turning Circle (ft): 38.4
Wall to Wall Turning Circle (mm): 11700
Wheelbase (in): 113.1
Wheelbase (mm): 2872
Internal Dimensions
Front Headroom (in): 38.4
Front Headroom (mm): 976
Rear Headroom (in): 37.2
Rear Headroom (mm): 945
Front Hip Room (in): 55.3
Front Hip Room (mm): 1404
Rear Hip Room (in): 53.4
Rear Hip Room (mm): 1356
Front Leg Room (in): 42.3
Front Leg Room (mm): 1074
Rear Leg Room (in): 35.2
Rear Leg Room (mm): 895
Front Shoulder Room (in): 56.1
Front Shoulder Room (mm): 1425
Rear Shoulder Room (in): 54.5
Rear Shoulder Room (mm): 1384
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Active High Beam: yes
Directional Headlights: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Complex Surface
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Black
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof One Touch Opening: yes
Front Sunroof Operation: Remote
Front Sunroof Sliding: yes
Front Sunroof Sunshade: yes
Front Sunroof Tilting: yes
Front Sunroof Type: Glass
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Toned
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors Tilting for Reverse: Automatic
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Auto-Dimming Passenger Door Mirrors: yes
Passenger Door Mirrors/Cameras Colour: Toned
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1800
Gross Trailer Weight Braked (lb): 3968
Published Kerb Weight (kg): 1804
Published Kerb Weight (lb): 3977
Tare Weight (kg): 1767
Audio System
ARI/EON: yes
Colour Screen: yes
Digital Radio: yes
Internet Radio: yes
Radio Type: Am/Fm
RDS: yes
System Type: Stereo
Disc Player
Dashboard Capacity: 1
Location: Dashboard
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
WMA Devices Connection: yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 10
Surround Sound: yes
Upgraded Speakers: yes
Luxury Trim
Centre Floor Console: Alloy
Doors: Alloy
Gear Selector: Alloy & Leather
Instrument Panel: Alloy
Airbags
Number of Airbags: 7
Autonomous Drive
Active Lane Control: yes
Level: 2 - Partial Automation
Crash Test Results
ANCAP Date Tested: 20180101
ANCAP Overall: 5.00
ANCAP Pedestrian: Acceptable
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Standard: Ancap
ANCAP Version Tested: V60 D4 Momentum 2.0 Diesel Wagon
Front Airbag
Location: Driver
Location: Passenger
Front Cross Traffic Collision Avoidance
Type: Sensor
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Overtaking Sensor
Manufacturer Name: Blind Spot Information System (Blis)
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: 2-Way Electric
Driver Front Seat Number of Electrical Adjustments: 7
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Thigh Support Type: Electric
Driver Front Seat Type: Sports
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Memory
Location: Passenger
Passenger Front Seat Lumbar Type: 2-Way Electric
Passenger Front Seat Number of Electrical Adjustments: 6
Passenger Front Seat Reach Type: Memory
Passenger Front Seat Reclining Type: Memory
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Synthetic Suede
Manufacturer Name: Nappa
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 4
Rear Control For Climate Control: yes
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Rear Seats Location: Rear Seats
Ventilation System
Digital Display: yes
Heater Type: Combustion
Power Locks
Automatic Locking: yes
Includes Power Windows: yes
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
