Volvo V60 Luxury (2016) price & specs
Save $$$ with CarExpert*
From
$63,375â€
Luxury
Overview

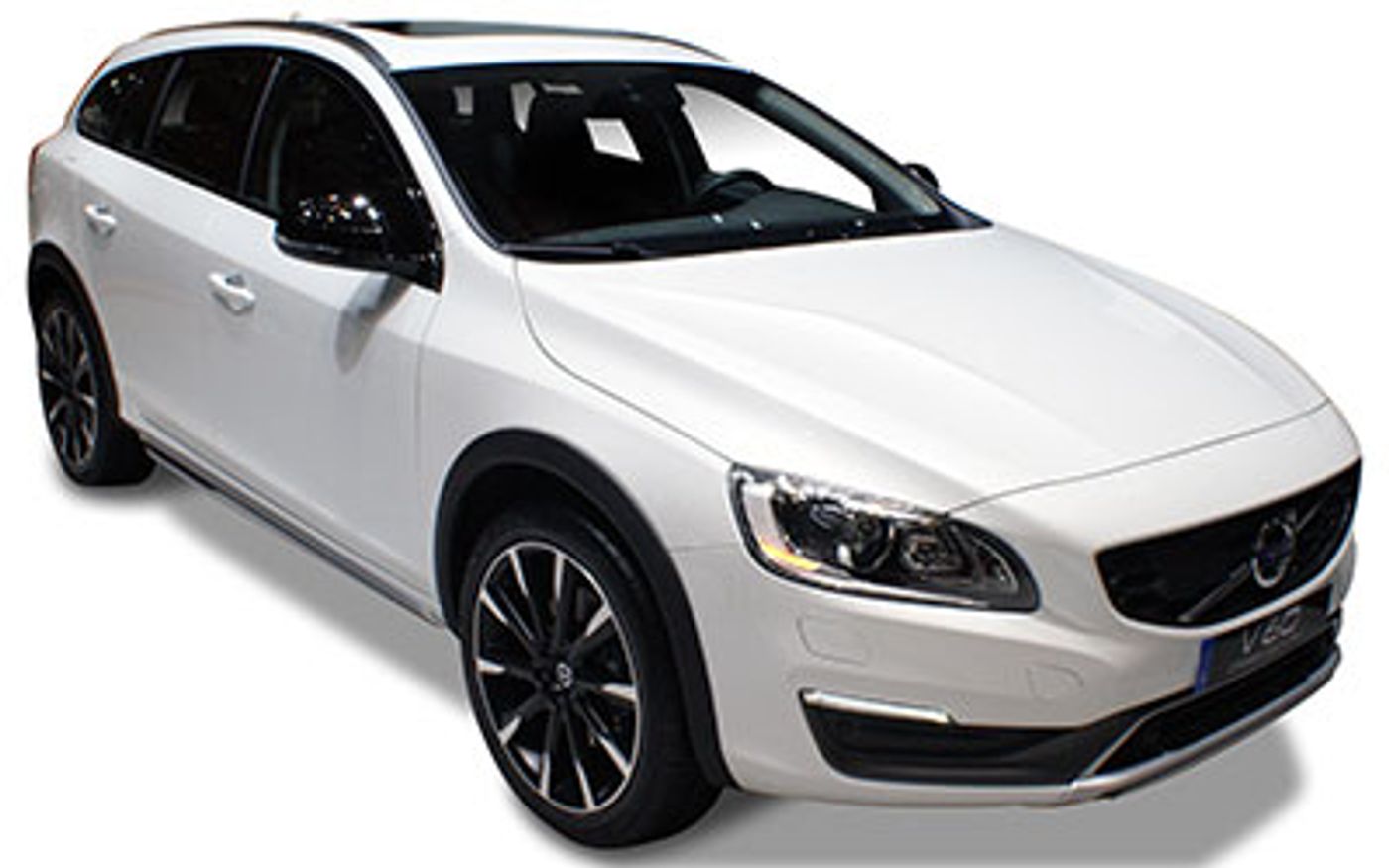

The 2016 Volvo V60 Luxury is a four-wheel drive, 5-door Station Wagon that was released to the Australian market on 4th January 1970. The Volvo V60 is regarded as a Medium Luxury built in Belgium with prices starting at $63,375 before on-road costs.
This Volvo V60 is powered by a 2.4L 5-cylinder engine that has 140 kW of power (at 4000 rpm) and 420 Nm of torque (at 1500 rpm) via a Six-speed Automatic transmission. Volvo claims the V60 Luxury uses 5.8L/100km of Diesel in the combined city and highway cycle while putting out 153g of CO2. It has a 68L fuel tank, meaning it should be able to travel 1172km per full tank
The Volvo V60 measures 1545mm (60.8 inches) in height, 4638mm (182.6 inches) in length, 1865mm (73.4 inches) in width with a 2774mm (109.2 inches) wheelbase that brings about a total of 1785kg (3935.2 lbs) of unladen weight. The V60 Luxury comes standard with 235/40 R18 front tyres and 235/40 R18 rear tyres. It has a 36 month, unlimited km warranty.
The 2016 Volvo V60 Luxury has a 201mm ground clearance with a 1900kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the V60 compare?
Quickly see how the 2016 Volvo V60 Luxury stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
75.63 - 78.43 kW/t
63.29 kW/t
216.76 kW/t
Boot Space
430 litres
370 litres
520 litres
Fuel Efficiency
5.8 L/100km
2.1 L/100km
9.7 L/100km
Vehicle Range
1,172 km
680 km
1,619 km
Price
$63,375
$49,990
$241,762
Warranty (Years)
3 years
3 years
4 years
Warranty (Distance)
Unlimited
80,000 km
Unlimited
Years on Sale
4 years
1 year
6 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,300 kg
2,000 kg
2,455 kg
Braked Towing Capacity
1,800 - 1,900 kg
1,400 kg
2,100 kg
Ground Clearance Unladen
201 mm
110 mm
201 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,638 mm
1,865 mm
1,545 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,638 mm |
| Overall Width | 1,865 mm |
| Overall Height | 1,545 mm |
| Wheelbase | 2,774 mm |
| Turning Circle | 11,400 mm |
Looking for complete Volvo V60 size & space specs?
Our Volvo V60 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Volvo V60 Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 6.0
Australia Greenhouse Rating: 7.5
Australia Overall Emission Control Level Rating: 3.5
CO2 Level (Combined): 153
Standard Met: EU5
Engine
Bore Engine: 81.0
Engine (cc): 2400
Engine Configuration: In-Line
Engine Code: A5
Engine (L): 2.4
Number of Cylinders: 5
Number of Valves per Cylinder: 4
Stroke Engine: 93.2
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 18.0
Main Capacity (L): 68
Main Capacity Uk Gallons: 15.0
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Number of Screens: 1
Screen Size (in): 7.0
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1172
ADR 81/02 Calculated Vehicle Range (miles): 728
ADR 81/02 Combined (km/L): 17.2
ADR 81/02 Combined (L/100km): 5.8
ADR 81/02 Combined (miles per UK gallon): 49
ADR 81/02 Combined (mpg): 41
ADR 81/02 Country Highway (km/L): 19.2
ADR 81/02 Country Highway (L/100km): 5.2
ADR 81/02 Country Highway (miles per UK gallon): 54
ADR 81/02 Country Highway (mpg): 45
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 14.5
ADR 81/02 Urban (L/100km): 6.9
ADR 81/02 Urban (miles per UK gallon): 41
ADR 81/02 Urban (mpg): 34
Fuel Economy
ADR 81/02 (L/100km): 5.8
Performance
Acceleration 0 To 100 km/h: 8.9
Maximum Speed (km/h): 205
Maximum Speed (mph): 127
Power
Maximum Power (hp/PS): 190
Maximum Power (kW): 140
Maximum Torque (Nm): 420
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 1500
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Automatic
Electronic Traction Control
Controlled By: Abs & Engine Management
Limited Slip Differential
Location: Front
Front Type: Electronic
Transmission
Code: Aw Tf-80sd 4wd
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Alloy & Leather
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Location: Front
Front Wheels Tire Profile: 40
Front Wheels Tire Speed Rating: Y
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 40
Rear Wheels Tire Speed Rating: Y
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Locking Wheel Nuts: yes
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.0
Front Wheels Two Tone: yes
Location: Rear
Rear Locking Wheel Nuts: yes
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.0
Rear Two Tone: yes
Body Style
Body Type: Station Wagon
Local Body Type: Station Wagon
Platform Code: C1+Eucd
Wheelbase Type: Short
Spoiler
Location: Roof
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Capacity
Measurement Standard: ISO
Rear Seat Down (cu ft): 43.8
Rear Seat Down (L): 1241
Rear Seat Up to Lower Window (cu ft): 15.2
Rear Seat Up to Lower Window (L): 430
External Dimensions
Kerb to Kerb Turning Circle (mm): 11400
Front Track (in): 63.7
Front Track (mm): 1619
Ground Clearance Unladen (in): 7.9
Ground Clearance Unladen (mm): 201
Kerb To Kerb Turning Circle (ft): 37.4
Overall Height (in): 60.8
Overall Height (mm): 1545
Overall Length (in): 182.6
Overall Length (mm): 4638
Overall Width (in): 73.4
Overall Width (mm): 1865
Rear Track (in): 62.1
Rear Track (mm): 1577
Wheelbase (in): 109.2
Wheelbase (mm): 2774
Internal Dimensions
Front Headroom (in): 38.3
Front Headroom (mm): 973
Rear Headroom (in): 37.6
Rear Headroom (mm): 954
Front Hip Room (in): 54.9
Front Hip Room (mm): 1395
Rear Hip Room (in): 53.1
Rear Hip Room (mm): 1349
Front Leg Room (in): 41.9
Front Leg Room (mm): 1064
Rear Leg Room (in): 33.5
Rear Leg Room (mm): 850
Front Shoulder Room (in): 57.0
Front Shoulder Room (mm): 1447
Rear Shoulder Room (in): 55.2
Rear Shoulder Room (mm): 1402
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Directional Headlights: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: Bi-Xenon
Low Beam Bulb Type: Bi-Xenon
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Paint
External Colour: red
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Sliding: yes
Front Sunroof Sunshade: yes
Front Sunroof Tilting: yes
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Toned
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors Tilting for Reverse: Automatic
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Toned
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Electrically Foldable Mirrors
Operation: Electric
Heat Reflective Glass
Location: ?
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Water Repellent Windows
Location: ?
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1900
Gross Trailer Weight Braked (lb): 4189
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Published Kerb Weight (kg): 1785
Published Kerb Weight (lb): 3935
Audio System
CD Player Reads MP3: yes
Colour Screen: yes
In-Dash CD: yes
In-Dash DVD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 8
Upgraded Speakers: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Entertainment Display Screen
Front DVD: yes
Location: Front
Front Screen Size (in): 7.0
Memorised Adjustment
Door Mirror Position: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Navigation System: yes
Luxury Trim
Centre Floor Console: Alloy
Doors: Alloy
Gear Selector: Leather
Instrument Panel: Alloy
Airbags
Number of Airbags: 6
Child Safety Seat
Location: Rear Seats
Number: 2
Type: Integrated
Crash Test Results
ANCAP Overall: 5.00
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Lane Departure Warning
Activates Brakes: yes
Overtaking Sensor
Manufacturer Name: Blis
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: 2-Way Electric
Driver Front Seat Number of Electrical Adjustments: 6
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Height Type: Memory
Location: Passenger
Passenger Front Seat Lumbar Type: 2-Way Electric
Passenger Front Seat Number of Electrical Adjustments: 6
Passenger Front Seat Reach Type: Memory
Passenger Front Seat Reclining Type: Memory
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Active Carbon Filter: yes
Automatic Recirculation: yes
Digital Display: yes
Micro Filter: yes
Anti-Theft Protection
Anti-Lift: yes
Power Locks
Includes Sunroof: yes
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
