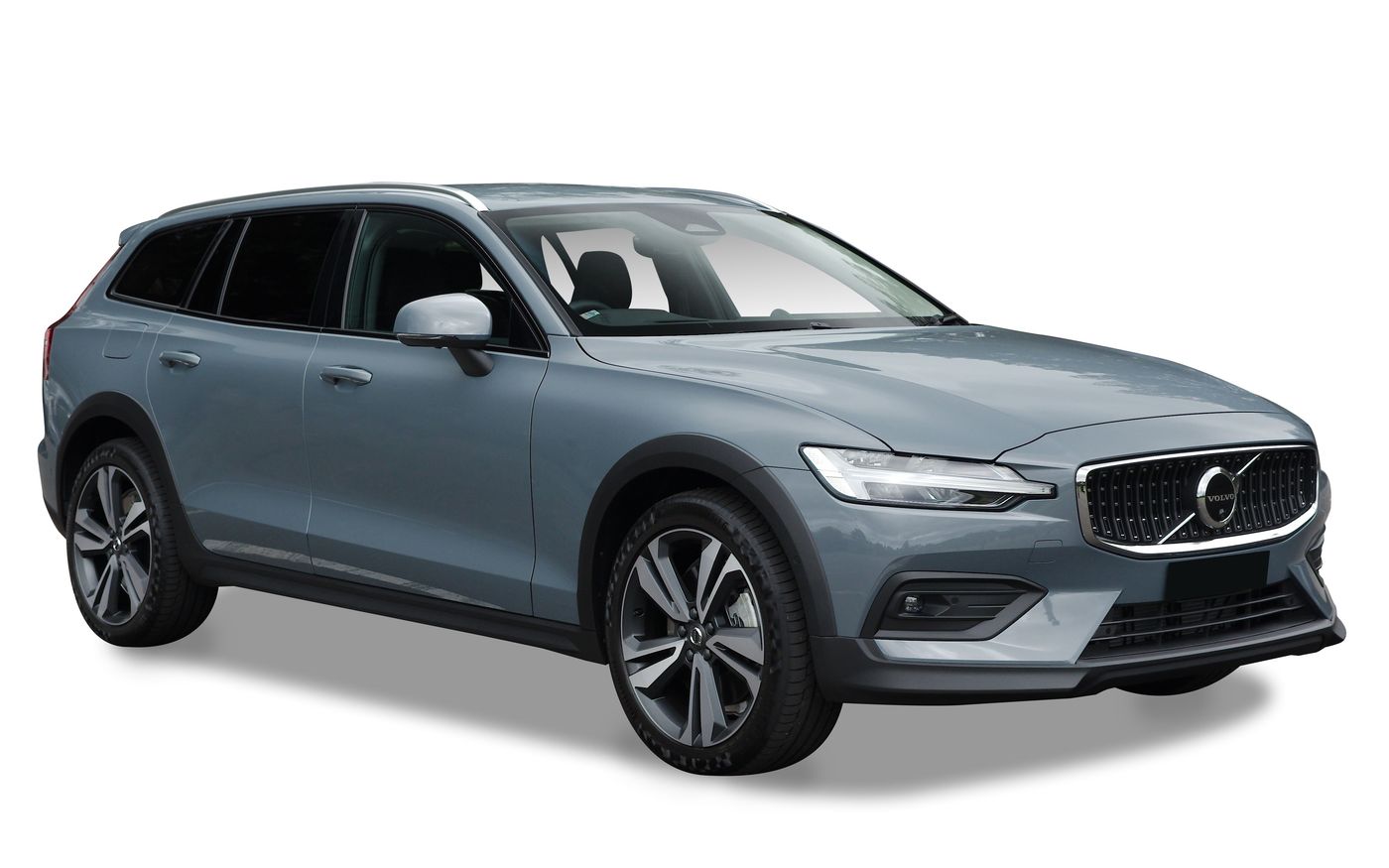

Volvo V60 Ultimate (2023) price & specs
Save $$$ with CarExpert*
From
$68,490â€
Ultimate
Overview
The 2023 Volvo V60 Ultimate is a four-wheel drive, 5-door Station Wagon that was released to the Australian market on 5th July 2022. The Volvo V60 is regarded as a Medium Luxury built in Sweden with prices starting at $68,490 before on-road costs.
This Volvo V60 is powered by a 2.0L 4-cylinder engine that has 183 kW of power (at 5400 rpm) and 350 Nm of torque (at 1800 rpm) via an Eight-speed Automatic transmission. Volvo claims the V60 Ultimate uses 7.4L/100km of Premium Unleaded in the combined city and highway cycle while putting out 168g of CO2. It has a 60L fuel tank, meaning it should be able to travel 811km per full tank
The Volvo V60 measures 1504mm (59.2 inches) in height, 4784mm (188.3 inches) in length, 1893mm (74.5 inches) in width with a 2875mm (113.2 inches) wheelbase that brings about a total of 1846kg (4069.7 lbs) of unladen weight. The V60 Ultimate comes standard with 235/45 R19 front tyres and 235/45 R19 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2023 Volvo V60 Ultimate has a 203mm ground clearance with a 1800kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the V60 compare?
Quickly see how the 2023 Volvo V60 Ultimate stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
99.13 kW/t
72.61 kW/t
231.34 kW/t
Boot Space
519 litres
330 litres
649 litres
Fuel Efficiency
7.4 L/100km
1.3 L/100km
10.4 L/100km
Vehicle Range
811 km
465 km
1,952 km
Price
$68,490 - $69,490
$57,400
$249,900
Warranty (Years)
5 years
3 years
5 years
Warranty (Distance)
Unlimited
80,000 km
Unlimited
Years on Sale
4 years
1 year
6 years
Service Interval
12 months
12 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,350 kg
1,950 kg
2,735 kg
Braked Towing Capacity
1,800 kg
1,200 kg
2,200 kg
Approach Angle
17°
15.1°
17°
Departure Angle
22.4°
22°
22.4°
Ground Clearance Unladen
203 mm
97 mm
203 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,784 mm
1,893 mm
inc mirror: 2,040 mm
inc mirror: 2,040 mm
1,504 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,784 mm |
| Overall Width | 1,893 mm |
| Overall Width (Inc Mirror) | 2,040 mm |
| Overall Height | 1,504 mm |
| Wheelbase | 2,875 mm |
| Turning Circle | 11,300 mm |
| Load Capacity | 504 mm |
Looking for complete Volvo V60 size & space specs?
Our Volvo V60 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Volvo V60 Features & Specs
Automatic Door Closing
Rear Boot Hatch: yes
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control Linked To Mapping: yes
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Stability Control: yes
Steering: yes
Suspension: yes
Traction Control: yes
Entertainment Display Screen
Front DVD: yes
Location: Front
Front Screen Size (in): 9.00
Media Control
Touch Screen: yes
Memorised Adjustment
Door Mirror Position: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Other Months Subscription Included: 0
Parking Assistance
Location: Rear
Rear Type: Semi-Auto Park, Perpendicular & Exit
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Remote Services
Beep Flash: yes
Find My Car: yes
Immobilisation: yes
Remote Lock Unlock: yes
Send Destination To Car: yes
Speed Alert: yes
Theft Alert: yes
Tow Away Alert: yes
Vehicle Start: yes
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Programmable Settings: yes
Type: Automatic
USB Charging Port
Location: Front
Location: Rear
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Air Conditioning: yes
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Virtual Assistant: Google
Compressor
Compressor: Turbo
Number of Compressors: 2
Electrical System
Voltage: 48
Emission Control Level
CO2 Level (Country Highway): 140
CO2 Level (Combined): 168
CO2 Level (Urban): 207
Standard Met: EU6
Energy Recuperation
Engine: yes
Engine
Bore Engine: 82.0
Engine (cc): 1969
Engine Configuration: In-Line
Engine Code: L1
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 93.2
Fuel
Generic Primary Fuel Type: Petrol
Minimum Fuel Octane Number: 95
Minimum Fuel Type: Premium Unleaded
Fuel Type: Premium Unleaded
Octane Number: 95
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 15.9
Main Capacity (L): 60
Main Capacity Uk Gallons: 13.2
Main Type: Total
Electric Motor
Motor 1 Type: Bisg Belt Integrated Starter Gen
Motor 1 Max Torque Motor (Nm): 40
Motor 1 Number: 1
Motor 1 Power Output (hp/PS): 13.6
Motor 1 Power Output Motor (kW): 10.0
Electric Power Source
Battery Supplier: Samsung Sdi
Battery Type: Lithium Ion
Battery Voltage: 48
Maximum Battery (kWh): 0.40
Number of kWh Included: 0
Number of Months Subscription Included: 0
Useable Battery (kWh): 0.00
Hybrid Type
Hybrid Type: Mild Hybrid
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 9.00
Dashboard Centre 1 Touch Screen: yes
Instrument Cluster 1 Screen Control Wheel: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 12.30
Instrument Cluster 1 Touch Screen: yes
Instrument Cluster
Head Up Display: Windscreen
Reconfigurable: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 811
ADR 81/02 Calculated Vehicle Range (miles): 504
ADR 81/02 Combined (km/L): 13.5
ADR 81/02 Combined (L/100km): 7.4
ADR 81/02 Combined (miles per UK gallon): 38
ADR 81/02 Combined (mpg): 32
ADR 81/02 Country Highway (km/L): 16.4
ADR 81/02 Country Highway (L/100km): 6.1
ADR 81/02 Country Highway (miles per UK gallon): 46
ADR 81/02 Country Highway (mpg): 39
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.5
ADR 81/02 Urban (L/100km): 9.5
ADR 81/02 Urban (miles per UK gallon): 30
ADR 81/02 Urban (mpg): 25
Fuel Economy
ADR 81/02 (L/100km): 7.4
Performance
Acceleration 0 To 100 km/h: 6.6
Maximum Speed (km/h): 180
Maximum Speed (mph): 112
Power
Maximum Power (hp/PS): 249
Maximum Power hp/PS Electric Motor: 14
Maximum Power (kW): 183
Maximum Power kW Electric Motor: 10
Maximum Torque (Nm): 350
Maximum Torque Electric Motor (Nm): 40
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 5400
Rpm For Maximum Torque Low: 1800
Secondary Power
Maximum Power (hp/PS): 249
Maximum Power (kW): 183
Maximum Torque (Nm): 350
Rpm For Maximum Power Low: 5400
Rpm For Maximum Torque Low: 1800
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Automatic
Limited Slip Differential
Location: Front
Front Type: Electronic
Transmission
Code: Awf8g45, Awd
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Variable Rack: yes
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Alloy & Leather
Responsive Suspension
Driver Selectable: yes
Type: Electronic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Diameter: 20
Front Wheels Tire Load Index: 99
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: V
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Diameter: 20
Rear Wheels Tire Load Index: 99
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: V
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Wheels Rim Diameter (In): 19
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.0
Location: Rear
Rear Rim Diameter (In): 19
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 8.0
Cargo Capacity
Frunk Capacity (cu ft): 0.0
Frunk Capacity (L): 0
Measurement Standard: SAE
Rear Seat Down (cu ft): 50.5
Rear Seat Down (L): 1431
Rear Seat Up to Lower Window (cu ft): 18.3
Rear Seat Up to Lower Window (L): 519
External Dimensions
Kerb to Kerb Turning Circle (mm): 11300
Front Track (in): 64.9
Front Track (mm): 1649
Ground Clearance Unladen (in): 8.0
Ground Clearance Unladen (mm): 203
Kerb To Kerb Turning Circle (ft): 37.1
Overall Height (in): 59.2
Overall Height (mm): 1504
Overall Length (in): 188.3
Overall Length (mm): 4784
Overall Width Folded Mirror (in): 75.4
Overall Width Folded Mirror (mm): 1916
Overall Width (in): 74.5
Overall Width Inc Mirror (in): 80.3
Overall Width Inc Mirror (mm): 2040
Overall Width (mm): 1893
Rear Track (in): 64.3
Rear Track (mm): 1633
Wall to Wall Turning Circle (ft): 38.4
Wall to Wall Turning Circle (mm): 11700
Wheelbase (in): 113.2
Wheelbase (mm): 2875
Internal Dimensions
Front Headroom (in): 40.1
Front Headroom (mm): 1019
Rear Headroom (in): 38.0
Rear Headroom (mm): 966
Front Hip Room (in): 55.3
Front Hip Room (mm): 1404
Rear Hip Room (in): 53.4
Rear Hip Room (mm): 1356
Front Leg Room (in): 42.3
Front Leg Room (mm): 1074
Rear Leg Room (in): 35.2
Rear Leg Room (mm): 895
Front Shoulder Room (in): 56.1
Front Shoulder Room (mm): 1425
Rear Shoulder Room (in): 54.5
Rear Shoulder Room (mm): 1384
Ramp Angles
Approach Angle: 17.0
Departure Angle: 22.4
Black Trim
Around Side Windows: yes
Body Style
Body Type: Station Wagon
Local Body Type: Station Wagon
Platform Code: SPA
Wheelbase Type: Short
Spoiler
Location: Roof
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Hands Free Release: yes
Type: Lifting Gate
Headlight Control
Active High Beam: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Complex Surface
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: White
Type: Black
Sunroof
Front Sunroof Location: Front
Front Sunroof One Touch Opening: yes
Front Sunroof Operation: Remote
Front Sunroof Sliding: yes
Front Sunroof Sunshade: yes
Front Sunroof Tilting: yes
Front Sunroof Type: Glass
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Auto-Dimming Passenger Door Mirrors: yes
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 1800
Gross Trailer Weight Braked (lb): 3968
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2350
Gross Vehicle Weight (lb): 5181
Published Kerb Weight (kg): 1846
Published Kerb Weight (lb): 4069
Tare Weight (kg): 1808
Audio System
ARI/EON: yes
Audio Player Reads MP3: yes
CD Player Reads MP3: yes
Colour Screen: yes
Digital Radio: yes
Internet Radio: yes
Radio Type: Am/Fm
RDS: yes
System Power (W): 220
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Total Front USB Connections: 2
Total Rear USB Connections: 0
WMA Devices Connection: yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 10
Surround Sound: yes
Upgraded Speakers: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Airbags
Number of Airbags: 6
Autonomous Drive
Active Lane Control: yes
Highway Assist: yes
Level: 2 - Partial Automation
Front Airbag
Location: Driver
Location: Passenger
Front Cross Traffic Collision Avoidance
Type: Sensor
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Lane Departure Warning
Activates Steering: yes
Maximum Speed For Operation (km/h): 200
Maximum Speed For Operation (mph): 124
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: 2-Way Electric
Driver Front Seat Number of Electrical Adjustments: 6
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Thigh Support Type: Manual
Driver Front Seat Type: Bucket
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Memory
Location: Passenger
Passenger Front Seat Lumbar Type: 2-Way Electric
Passenger Front Seat Number of Electrical Adjustments: 6
Passenger Front Seat Reach Type: Memory
Passenger Front Seat Reclining Type: Memory
Passenger Front Seat Thigh Support Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 4
Rear Control For Climate Control: yes
Secondary Ventilation Controls
Individual Rear Location: Individual Rear
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Engine Heater: yes
Heater Type: Combustion
Ion Filtering: yes
Touch Screen Controls: yes
Power Locks
Includes Power Windows: yes
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
