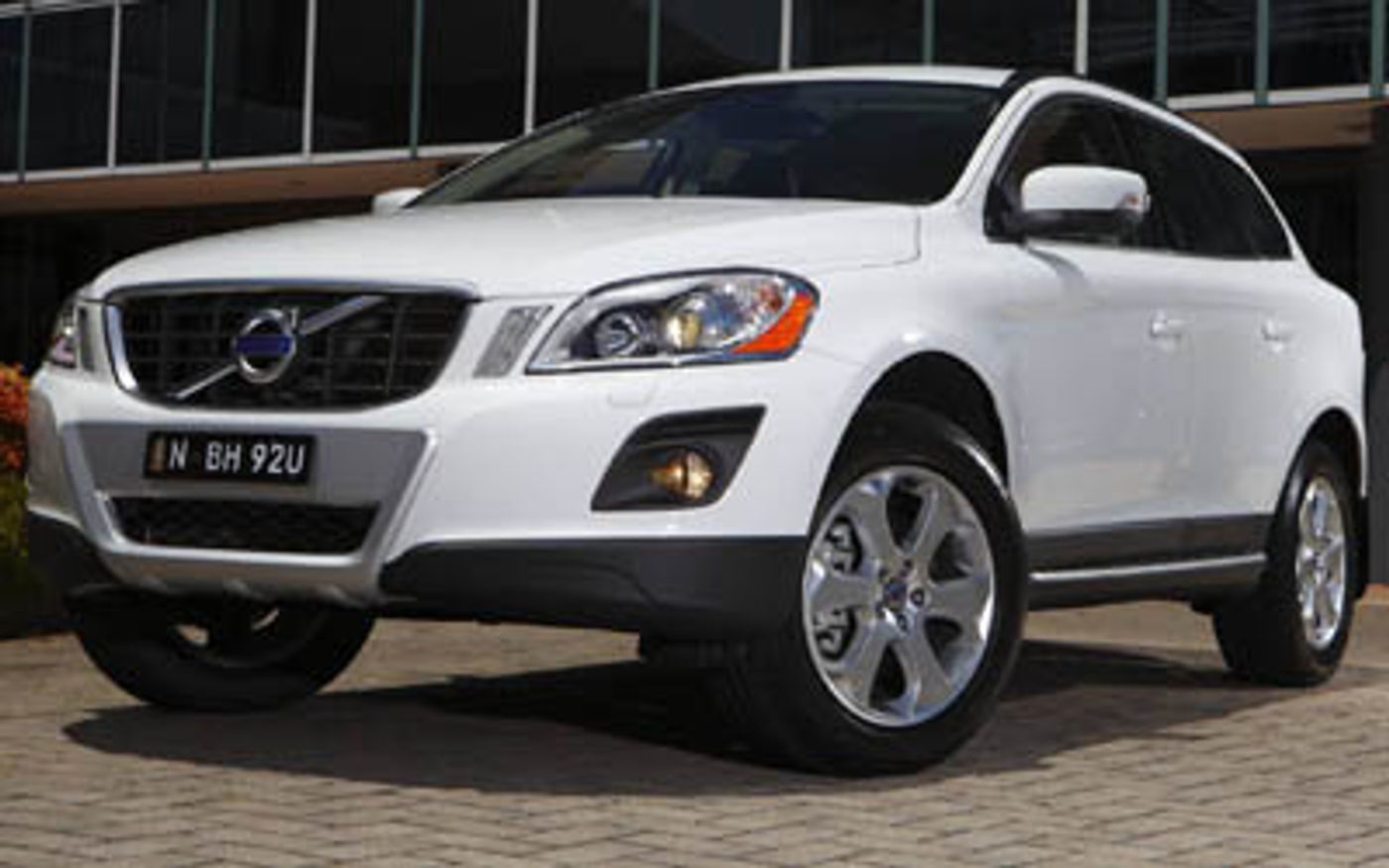

Volvo XC60 D5 (2011) price & specs
Save $$$ with CarExpert*
From
$60,450â€
Overview
The 2011 Volvo XC60 D5 is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th August 2010 classified as a 156. The Volvo XC60 is regarded as a Suv Medium Luxury built in Belgium with prices starting at $60,450 before on-road costs.
This Volvo XC60 is powered by a 2.4L 5-cylinder engine that has 151 kW of power (at 4000 rpm) and 420 Nm of torque (at 1500 rpm) via a Six-speed Automatic transmission. Volvo claims the XC60 D5 uses 7.6L/100km of Diesel in the combined city and highway cycle while putting out 219g of CO2. It has a 70L fuel tank, meaning it should be able to travel 921km per full tank
The Volvo XC60 measures 1713mm (67.4 inches) in height, 4627mm (182.2 inches) in length, 1891mm (74.4 inches) in width with a 2774mm (109.2 inches) wheelbase that brings about a total of 1887kg (4160.1 lbs) of unladen weight. The XC60 D5 comes standard with 235/65 R17 front tyres and 235/65 R17 rear tyres. It has a 36 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the XC60 compare?
Quickly see how the 2011 Volvo XC60 D5 stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
80.02 - 118.46 kW/t
68.49 kW/t
124.65 kW/t
Boot Space
495 litres
495 litres
550 litres
Fuel Efficiency
7.6 - 11.9 L/100km
5.6 L/100km
11.9 L/100km
Vehicle Range
588 - 921 km
588 km
1,196 km
Price
$54,150 - $70,650
$54,150
$77,900
Warranty (Years)
3 years
3 years
Warranty (Distance)
Unlimited
Unlimited
Years on Sale
1 - 4 years
1 year
4 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,430 - 2,505 kg
2,290 kg
2,505 kg
Braked Towing Capacity
1,800 - 2,000 kg
1,800 kg
2,400 kg
Approach Angle
22°
22°
26°
Departure Angle
27°
22.6°
27°
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,627 mm
1,891 mm
1,713 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,627 mm |
| Overall Width | 1,891 mm |
| Overall Height | 1,713 mm |
| Wheelbase | 2,774 mm |
| Turning Circle | 11,700 mm |
| Load Capacity | 618 mm |
Looking for complete Volvo XC60 size & space specs?
Our Volvo XC60 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Volvo XC60 Features & Specs
Bluetooth
Type: Bluetooth
Cruise Control
Speed Limiter: yes
Steering Wheel Mounted Controls: yes
Entertainment Display Screen
Location: Back Of Front Seats
Location: Front
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Remote Trunk Hatch Release
Operation: Remote Control
Smart Card/Smart Key
Type: Manual
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Compressor
Compressor: Turbo
Emission Control Level
Australia Air Pollution Rating: 5.0
Australia Greenhouse Rating: 5.5
Australia Overall Emission Control Level Rating: 3.0
CO2 Level (Combined): 219
Standard Met: EU5
Engine
Bore Engine: 81.0
Engine (cc): 2400
Engine Configuration: In-Line
Engine Code: 71
Engine (L): 2.4
Number of Cylinders: 5
Number of Valves per Cylinder: 4
Stroke Engine: 93.2
Valve Gear Type: Double Overhead Cam
Variable Valve Timing Camshaft: yes
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 18.5
Main Capacity (L): 70
Main Capacity Uk Gallons: 15.4
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 921
ADR 81/02 Calculated Vehicle Range (miles): 572
ADR 81/02 Combined (km/L): 13.2
ADR 81/02 Combined (L/100km): 7.6
ADR 81/02 Combined (miles per UK gallon): 37
ADR 81/02 Combined (mpg): 31
ADR 81/02 Country Highway (km/L): 16.1
ADR 81/02 Country Highway (L/100km): 6.2
ADR 81/02 Country Highway (miles per UK gallon): 46
ADR 81/02 Country Highway (mpg): 38
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 9.8
ADR 81/02 Urban (L/100km): 10.2
ADR 81/02 Urban (miles per UK gallon): 28
ADR 81/02 Urban (mpg): 23
Fuel Economy
ADR 81/02 (L/100km): 7.6
Performance
Acceleration 0 To 100 km/h: 8.9
Maximum Speed (km/h): 210
Maximum Speed (mph): 130
Power
Maximum Power (hp/PS): 205
Maximum Power (kW): 151
Maximum Torque (Nm): 420
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 1500
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Automatic
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Type: Hydraulic
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Alternate Suspension
Type: Other
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Suspension Levelling
Location: Front
Front Operation: Automatic
Location: Rear
Rear Operation: Automatic
Tires
Location: Front
Front Wheels Tire Profile: 65
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 235
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 65
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 235
Wheels
Location: Front
Front Locking Wheel Nuts: yes
Front Wheels Rim Diameter (In): 17
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Location: Rear
Rear Locking Wheel Nuts: yes
Rear Rim Diameter (In): 17
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.5
Cargo Capacity
Rear Seat Down (cu ft): 51.4
Rear Seat Down (L): 1455
Rear Seat Up to Lower Window (cu ft): 17.5
Rear Seat Up to Lower Window (L): 495
External Dimensions
Kerb to Kerb Turning Circle (mm): 11700
Front Track (in): 64.3
Front Track (mm): 1632
Kerb To Kerb Turning Circle (ft): 38.4
Overall Height (in): 67.4
Overall Height (mm): 1713
Overall Length (in): 182.2
Overall Length (mm): 4627
Overall Width (in): 74.4
Overall Width (mm): 1891
Rear Track (in): 62.4
Rear Track (mm): 1586
Wheelbase (in): 109.2
Wheelbase (mm): 2774
Internal Dimensions
Front Headroom (in): 39.0
Front Headroom (mm): 990
Rear Headroom (in): 39.5
Rear Headroom (mm): 1003
Front Hip Room (in): 54.2
Front Hip Room (mm): 1377
Rear Hip Room (in): 53.8
Rear Hip Room (mm): 1367
Front Leg Room (in): 41.2
Front Leg Room (mm): 1047
Rear Leg Room (in): 36.4
Rear Leg Room (mm): 924
Front Shoulder Room (in): 56.7
Front Shoulder Room (mm): 1439
Rear Shoulder Room (in): 55.2
Rear Shoulder Room (mm): 1403
Ramp Angles
Approach Angle: 22.0
Departure Angle: 27.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: C1+ Eucd
Spoiler
Location: Roof
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
Paint
External Colour: Blue
Type: Gloss
Roof Rails
Colour: Black
Sunroof
Front to Rear Sunroof Location: Front To Rear
Front to Rear Sunroof Operation: Electric
Front to Rear Sunroof Sliding: yes
Front to Rear Sunroof Sunshade: yes
Front to Rear Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Electrically Foldable Mirrors
Operation: Electric
Headlight Cleaners
Cleaners Type: High Pressure
Heat Reflective Glass
Location: ?
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Water Repellent Windows
Location: ?
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2505
Gross Vehicle Weight (lb): 5523
Published Kerb Weight (kg): 1887
Published Kerb Weight (lb): 4160
Tare Weight (kg): 1836
Audio System
Brand Name: Manufacturer'S Own
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Game Console Connection: yes
MP3 Devices Connection: yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 8
Upgraded Speakers: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Centre Floor Console: Alloy
Doors: Alloy
Gear Selector: Leather
Instrument Panel: Alloy
Child Safety Seat
Location: Rear Seats
Number: 2
Type: Integrated
Crash Test Results
ANCAP Date Tested: 20090217
ANCAP Overall: 5.0
ANCAP Pedestrian: 2
ANCAP Standard: Ancap
ANCAP Version Tested: 2.4 Diesel Lhd Momentum
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Dipping For Reverse: yes
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Adjustment: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Fully Automated Climate Control: yes
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Active Carbon Filter: yes
Digital Display: yes
Micro Filter: yes
Anti-Theft Protection
Anti-Lift: yes
Peripheral: yes
Remote Operation: yes
Power Locks
Operation: Remote
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
