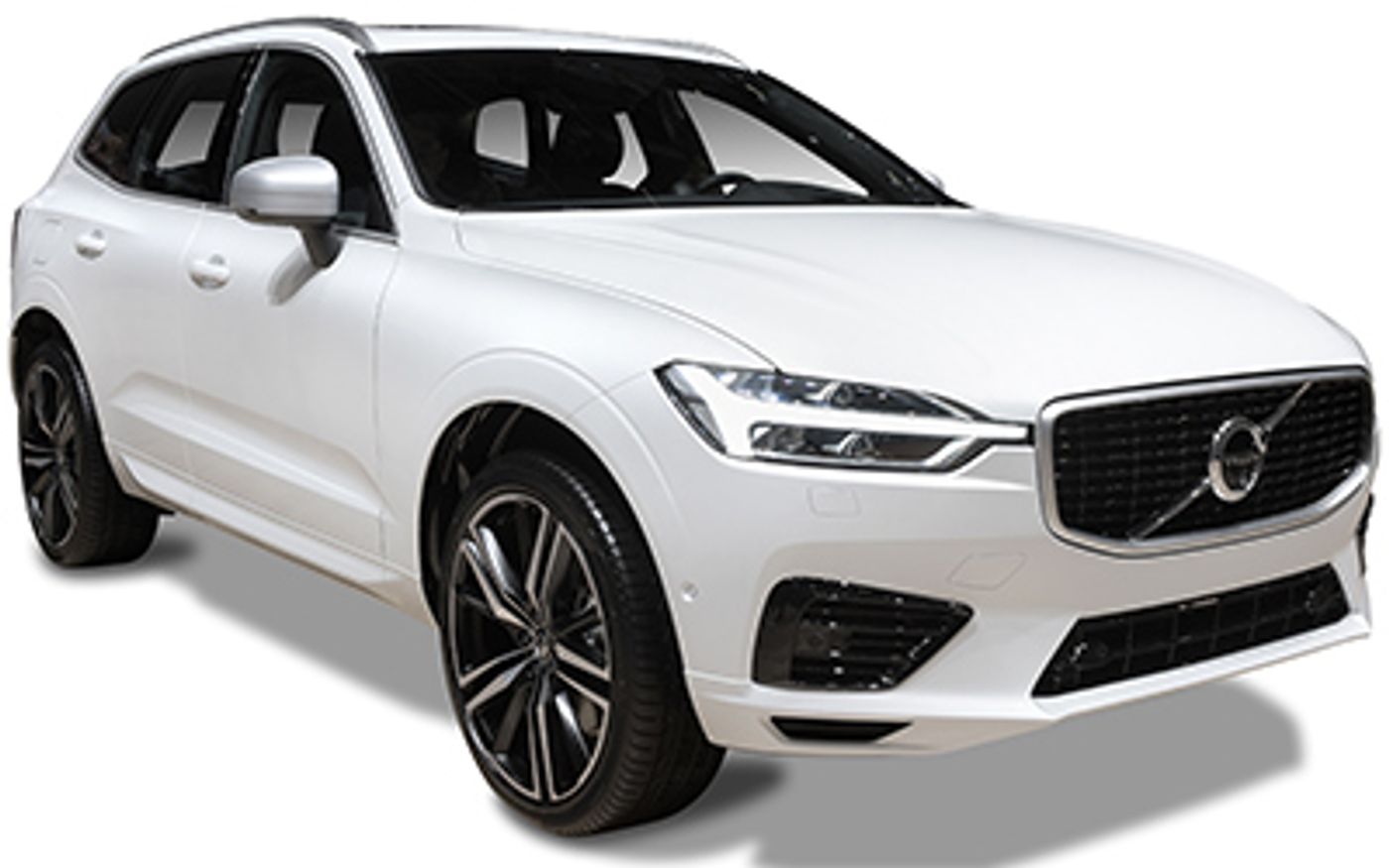

Volvo XC60 R-Design (2018) price & specs
Save $$$ with CarExpert*
From
$92,990â€
R-Design
Overview
The 2018 Volvo XC60 R-Design is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th January 1970. The Volvo XC60 is regarded as a Suv Medium Luxury built in Sweden with prices starting at $92,990 before on-road costs.
This Volvo XC60 uses a fully electric engine.
The Volvo XC60 measures 1658mm (65.3 inches) in height, 4688mm (184.6 inches) in length, 1902mm (74.9 inches) in width with a 2865mm (112.8 inches) wheelbase that brings about a total of 2150kg (4739.9 lbs) of unladen weight. The XC60 R-Design comes standard with 255/40 R21 front tyres and 255/40 R21 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 36 month, unlimited km warranty.
The 2018 Volvo XC60 R-Design has a 216mm ground clearance with a 2100kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the XC60 compare?
Quickly see how the 2018 Volvo XC60 R-Design stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
72.73 - 139.53 kW/t
59.82 kW/t
186.57 kW/t
Boot Space
468 - 505 litres
251 litres
780 litres
Fuel Efficiency
2.1 - 8 L/100km
2.1 L/100km
10.9 L/100km
Vehicle Range
769 - 1,268 km
606 km
1,333 km
Price
$59,990 - $92,990
$36,990
$171,900
Warranty (Years)
3 years
3 years
7 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
1 - 4 years
1 year
4 years
Service Interval
12 months
12 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,470 - 2,700 kg
2,160 kg
2,700 kg
Braked Towing Capacity
2,100 - 2,400 kg
600 kg
2,400 kg
Approach Angle
23.1°
17.2°
25°
Departure Angle
25.5°
18.3°
33°
Ground Clearance Unladen
216 mm
155 mm
236 mm
Battery & Charging
Max. battery kilowatt hour
10.4 kWh
1.6 kWh
10.4 kWh
AC Charging (max kW)
3.7 kW
3.7 kW
Vehicle Range (EV)
45 km
45 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,688 mm
1,902 mm
1,658 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,688 mm |
| Overall Width | 1,902 mm |
| Overall Height | 1,658 mm |
| Wheelbase | 2,865 mm |
| Turning Circle | 11,400 mm |
| Load Capacity | 550 mm |
Looking for complete Volvo XC60 size & space specs?
Our Volvo XC60 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Volvo XC60 Features & Specs
Ashtray
Location: Front
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cigar Lighter
Location: Front Seats
Cruise Control
Adaptive Cruise Control: yes
Driver Modes
Engine Mapping: yes
Steering: yes
Memorised Adjustment
Door Mirror Position: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Memory Seat Adjustments: yes
Includes Programmable Settings: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Air Conditioning: yes
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Compressor
Compressor: Turbo & Supercharger
Number of Compressors: 2
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 49
Standard Met: EU6
Energy Recuperation
Engine: yes
Engine
Bore Engine: 82.5
Engine (cc): 1969
Engine Configuration: In-Line
Engine Code: BA
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 93.2
Variable Valve Timing Camshaft: yes
Additional Fuel Types
Premium Unleaded Fuel: Premium Unleaded
Fuel
Generic Primary Fuel Type: Electric
Minimum Fuel Octane Number: 95
Other Fuel Type: Premium Unleaded
Fuel Type: Electric
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 13.2
Main Capacity (L): 50
Main Capacity Uk Gallons: 11.0
Main Type: Total
Charging Connector
Mode 2 (EVSE) Charging Cable Included: yes
Mode 2 (EVSE) Type: Mode 2 (Evse)
Type 2 (Mennekes) Charging Socket AC 1: yes
Type 2 (Mennekes) Location of AC 1 Socket: Front Side
Type 2 (Mennekes) Type: Type 2 (Mennekes)
Charging Information
Mode 2 Amps: 10
Mode 2 Duration: 4.00
Mode 2 Max kW Supplied To Vehicle: 2.30
Mode 2 Quoted kW Supplied To Vehicle: 2
Mode 2 Scenario: Mode 2
Mode 2 State of Charge Ends At (%): 100
Mode 2 State of Charge Starts At (%): 5
Mode 2 Voltage: 230
Mode 3 amps (A): 16
Mode 3 Duration: 3.00
Mode 3 Max kW Supplied To Vehicle: 3.70
Mode 3 Quoted kW Supplied To Vehicle: 4
Mode 3 Scenario: Mode 3
Mode 3 State of Charge Ends At (%): 100
Mode 3 State of Charge Starts At (%): 5
Mode 3 Voltage: 230
Electric Driven Wheels
Electric Driven Wheels: Rear
Electric Motor
Motor 1 Type: Ac Perm Magnet Synchronous
Motor 1 Max Torque Motor (Nm): 240
Motor 1 Number: 1
Motor 1 Power Output (hp/PS): 88.4
Motor 1 Power Output Motor (kW): 65.0
Electric Power Source
Battery (Ah): 0.0
Battery Supplier: Lg Energy Solution
Battery Type: Lithium Ion
Battery Voltage: 270
Maximum Battery (kWh): 10.4
Range (km): 45.00
Range (miles): 27.96
Hybrid Type
Hybrid Type: Active Hybrid
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Instrument Cluster
Head Up Display: Windscreen
Reconfigurable: yes
Fuel Consumption
ADR 81/02 Combined (km/L): 47.6
ADR 81/02 Combined (L/100km): 2.1
ADR 81/02 Combined (miles per UK gallon): 135
ADR 81/02 Combined (mpg): 112
ADR 81/02 Country Highway (km/L): 16.4
ADR 81/02 Country Highway (L/100km): 6.1
ADR 81/02 Country Highway (miles per UK gallon): 46
ADR 81/02 Country Highway (mpg): 39
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 2.1
Performance
Acceleration 0 To 100 km/h: 5.3
Maximum Speed (km/h): 230
Maximum Speed (mph): 143
Power
Maximum Power (hp/PS): 408
Maximum Power hp/PS Electric Motor: 88
Maximum Power (kW): 300
Maximum Power kW Electric Motor: 65
Maximum Torque (Nm): 640
Maximum Torque Electric Motor (Nm): 240
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Power Consumption
Combined (kWh/100km): 25.9
Secondary Power
Maximum Power (hp/PS): 320
Maximum Power (kW): 235
Maximum Torque (Nm): 400
Rpm For Maximum Power Low: 5700
Rpm For Maximum Torque Low: 2200
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Automatic
Limited Slip Differential
Location: Front
Front Type: Electronic
Transmission
Code: Aw Tg-81-Sc-C-Awd
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Variable Rack: yes
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Alternate Suspension
Type: Sport
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Suspension Levelling
Location: Front
Front Operation: Automatic
Location: Rear
Rear Operation: Automatic
Tires
Location: Front
Front Wheels Tire Profile: 40
Front Wheels Tire Speed Rating: V
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 255
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 40
Rear Wheels Tire Speed Rating: V
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 255
Wheels
Location: Front
Front Wheels Rim Diameter (In): 21
Front Wheels Rim Type: Alloy
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 21
Rear Rim Type: Alloy
Rear Two Tone: yes
Cargo Capacity
Measurement Standard: SAE
Rear Seat Down (cu ft): 49.3
Rear Seat Down (L): 1395
Rear Seat Up to Lower Window (cu ft): 16.5
Rear Seat Up to Lower Window (L): 468
External Dimensions
Kerb to Kerb Turning Circle (mm): 11400
Front Track (in): 65.2
Front Track (mm): 1655
Ground Clearance Unladen (in): 8.5
Ground Clearance Unladen (mm): 216
Kerb To Kerb Turning Circle (ft): 37.4
Overall Height (in): 65.3
Overall Height (mm): 1658
Overall Length (in): 184.6
Overall Length (mm): 4688
Overall Width (in): 74.9
Overall Width (mm): 1902
Rear Track (in): 65.3
Rear Track (mm): 1659
Wall to Wall Turning Circle (ft): 38.7
Wall to Wall Turning Circle (mm): 11800
Wheelbase (in): 112.8
Wheelbase (mm): 2865
Internal Dimensions
Front Headroom (in): 40.8
Front Headroom (mm): 1037
Rear Headroom (in): 38.9
Rear Headroom (mm): 988
Front Hip Room (in): 56.4
Front Hip Room (mm): 1433
Rear Hip Room (in): 55.4
Rear Hip Room (mm): 1408
Front Leg Room (in): 41.5
Front Leg Room (mm): 1055
Rear Leg Room (in): 38.0
Rear Leg Room (mm): 965
Front Shoulder Room (in): 58.2
Front Shoulder Room (mm): 1478
Rear Shoulder Room (in): 56.3
Rear Shoulder Room (mm): 1430
Ramp Angles
Approach Angle: 23.1
Departure Angle: 25.5
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: SPA
Wheelbase Type: Short
Spoiler
Location: Roof
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Active High Beam: yes
Directional Headlights: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Complex Surface
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: White
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Alloy
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors Tilting for Reverse: Automatic
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Auto-Dimming Passenger Door Mirrors: yes
Passenger Door Mirrors/Cameras Colour: Alloy
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2100
Gross Trailer Weight Braked (lb): 4630
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2700
Gross Vehicle Weight (lb): 5953
Published Kerb Weight (kg): 2150
Published Kerb Weight (lb): 4740
Tare Weight (kg): 2105
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 10
Surround Sound: yes
Upgraded Speakers: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Centre Floor Console: Alloy
Gear Selector: Alloy & Leather
Instrument Panel: Alloy & Leather
Airbags
Number of Airbags: 7
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Dipping For Reverse: yes
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: 2-Way Electric
Driver Front Seat Number of Electrical Adjustments: 6
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Thigh Support: yes
Driver Front Seat Thigh Support Type: Manual
Driver Front Seat Type: Sports
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Lumbar Type: 2-Way Electric
Passenger Front Seat Number of Electrical Adjustments: 6
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Thigh Support: yes
Passenger Front Seat Thigh Support Type: Manual
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Synthetic Suede
Manufacturer Name: Nappa
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 4
Rear Control For Climate Control: yes
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Rear Seats Location: Rear Seats
Ventilation System
Digital Display: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
