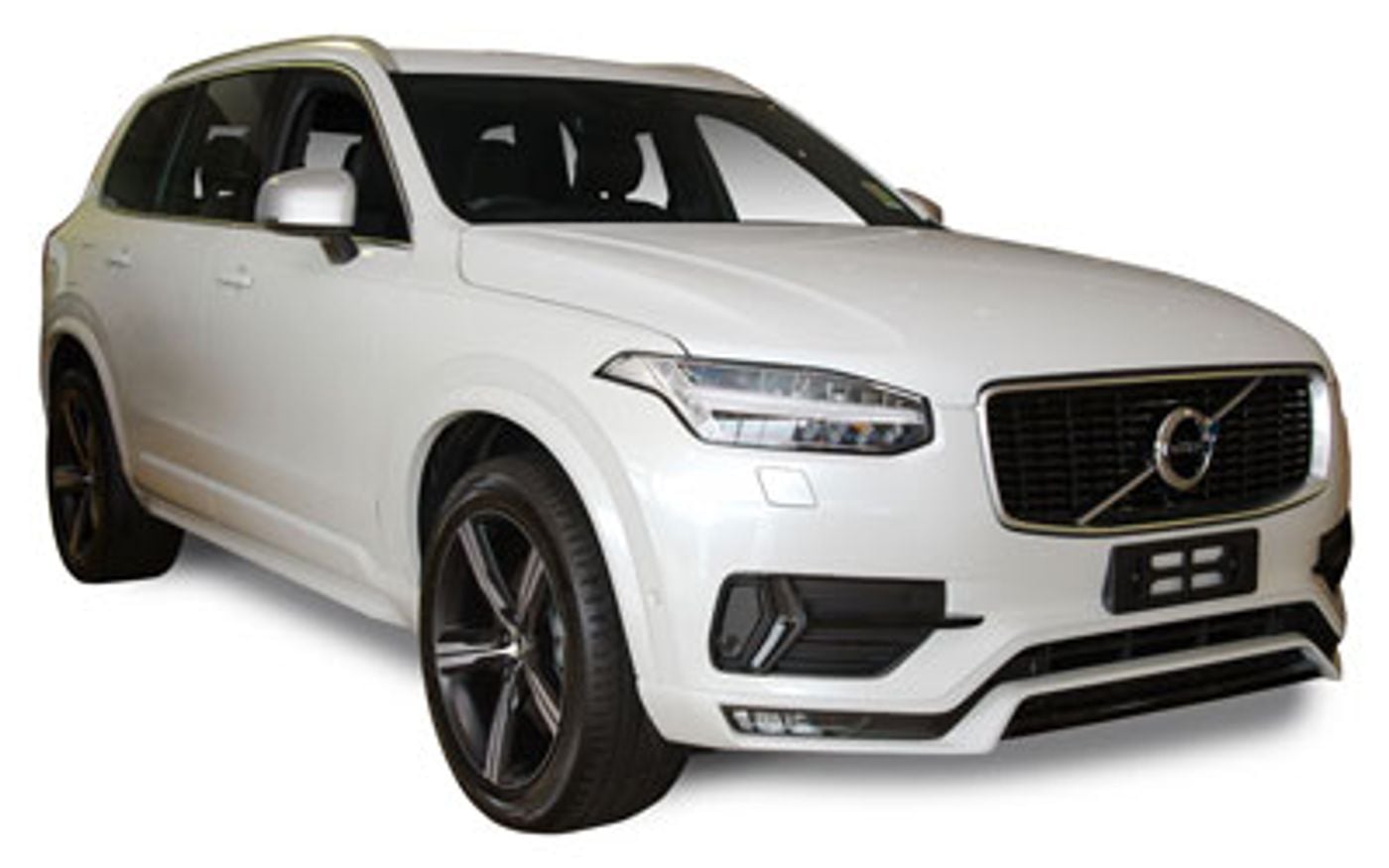

Volvo XC90 R-Design (2016) price & specs
Save $$$ with CarExpert*
From
$122,910â€
R-Design
Overview
The 2016 Volvo XC90 R-Design is a four-wheel drive, 5-door SUV that was released to the Australian market on 4th January 1970. The Volvo XC90 is regarded as a Suv Large Luxury built in Sweden with prices starting at $122,910 before on-road costs.
This Volvo XC90 uses a fully electric engine.
The Volvo XC90 measures 1776mm (69.9 inches) in height, 4950mm (194.9 inches) in length, 2008mm (79.1 inches) in width with a 2984mm (117.5 inches) wheelbase that brings about a total of 2296kg (5061.8 lbs) of unladen weight. The XC90 R-Design comes standard with 275/45 R20 front tyres and 275/45 R20 rear tyres. It has a 36 month, unlimited km warranty.
The 2016 Volvo XC90 R-Design has a 238mm ground clearance with a 2250kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the XC90 compare?
Quickly see how the 2016 Volvo XC90 R-Design stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
80.92 - 128.05 kW/t
67.36 kW/t
187.47 kW/t
Boot Space
262 - 314 litres
262 litres
670 litres
Fuel Efficiency
2.1 - 8.5 L/100km
2.1 L/100km
13.8 L/100km
Vehicle Range
835 - 1,145 km
750 km
1,471 km
Price
$89,910 - $122,950
$67,990
$284,700
Warranty (Years)
3 years
3 years
4 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
1 - 4 years
1 year
7 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,750 kg
2,500 kg
3,200 kg
Braked Towing Capacity
2,250 - 2,700 kg
1,000 kg
3,500 kg
Approach Angle
23.8°
16.5°
33°
Departure Angle
23.3°
14.4°
31°
Ground Clearance Unladen
238 mm
195 mm
278 mm
Battery & Charging
Max. battery kilowatt hour
9.2 kWh
1.8 kWh
10.8 kWh
Vehicle Range (EV)
40 - 43 km
1.61 km
43 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,950 mm
2,008 mm
1,776 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,950 mm |
| Overall Width | 2,008 mm |
| Overall Height | 1,776 mm |
| Wheelbase | 2,984 mm |
| Turning Circle | 11,900 mm |
Looking for complete Volvo XC90 size & space specs?
Our Volvo XC90 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Volvo XC90 Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Driver Modes
Engine Mapping: yes
Stability Control: yes
Steering: yes
Traction Control: yes
Entertainment Display Screen
Front DVD: yes
Location: Front
Front Screen Size (in): 9.0
Front Touch Screen: yes
Memorised Adjustment
Door Mirror Position: yes
Mobile Integration
Apple Carplay: yes
Parking Assistance
Location: Rear
Rear Type: Full Automatic Parking
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Start: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Air Conditioning: yes
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Compressor
Compressor: Turbo & Supercharger
Emission Control Level
CO2 Level (Combined): 49
Standard Met: EU6
Engine
Bore Engine: 82.0
Engine (cc): 1969
Engine Configuration: In-Line
Engine Code: BA
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 93.2
Variable Valve Timing Camshaft: yes
Additional Fuel Types
Unleaded Fuel: Unleaded
Fuel
Generic Primary Fuel Type: Electric
Minimum Fuel Octane Number: 95
Minimum Fuel Type: Premium Unleaded
Other Fuel Type: Premium Unleaded
Fuel Type: Electric
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 13.2
Main Capacity (L): 50
Main Capacity Uk Gallons: 11.0
Main Type: Total
Charging Information
Mode 2 Scenario: Mode 2
Electric Driven Wheels
Electric Driven Wheels: Rear
Electric Motor
Motor 1 Max Torque Motor (Nm): 240
Motor 1 Number: 1
Electric Power Source
Battery Type: Lithium Ion
Maximum Battery (kWh): 9.2
Range (km): 43.00
Range (miles): 26.72
Hybrid Type
Hybrid Type: Active Hybrid
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Number of Screens: 2
Screen Size (in): 9.0
Touch Screen: yes
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Combined (km/L): 47.6
ADR 81/02 Combined (L/100km): 2.1
ADR 81/02 Combined (miles per UK gallon): 135
ADR 81/02 Combined (mpg): 112
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 2.1
Performance
Acceleration 0 To 100 km/h: 5.6
Maximum Speed (km/h): 230
Maximum Speed (mph): 143
Power
Maximum Power (hp/PS): 400
Maximum Power hp/PS Electric Motor: 88
Maximum Power (kW): 294
Maximum Power kW Electric Motor: 65
Maximum Torque (Nm): 640
Maximum Torque Electric Motor (Nm): 240
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Secondary Power
Maximum Power (hp/PS): 311
Maximum Power (kW): 229
Maximum Torque (Nm): 400
Rpm For Maximum Power Low: 5400
Rpm For Maximum Torque Low: 2200
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Automatic
Limited Slip Differential
Location: Front
Front Type: Electronic
Transmission
Code: Aw Tg-81-Sc Awd
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Alloy & Leather
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Diameter: 22
Front Wheels Tire Load Index: 101
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Speed Rating: V
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 275
Rear Wheels Tire Diameter: 22
Rear Wheels Tire Load Index: 101
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 45
Rear Wheels Tire Speed Rating: V
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 275
Wheels
Location: Front
Front Wheels Rim Diameter (In): 20
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 9.0
Location: Rear
Rear Rim Diameter (In): 20
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 9.0
Cargo Capacity
Measurement Standard: ISO
Rear Seat Down (cu ft): 64.1
Rear Seat Down (L): 1816
Rear Seat Up to Lower Window (cu ft): 9.3
Rear Seat Up to Lower Window (L): 262
External Dimensions
Kerb to Kerb Turning Circle (mm): 11900
Front Track (in): 65.6
Front Track (mm): 1665
Ground Clearance Unladen (in): 9.4
Ground Clearance Unladen (mm): 238
Kerb To Kerb Turning Circle (ft): 39.0
Overall Height (in): 69.9
Overall Height (mm): 1776
Overall Length (in): 194.9
Overall Length (mm): 4950
Overall Width (in): 79.1
Overall Width (mm): 2008
Rear Track (in): 65.6
Rear Track (mm): 1667
Wheelbase (in): 117.5
Wheelbase (mm): 2984
Internal Dimensions
3rd Row Headroom (in): 36.3
3rd Row Headroom (mm): 923
Front Headroom (in): 39.3
Front Headroom (mm): 998
Rear Headroom (in): 39.3
Rear Headroom (mm): 997
3rd Row Hip Room (in): 44.9
3rd Row Hip Room (mm): 1140
Front Hip Room (in): 56.0
Front Hip Room (mm): 1422
Rear Hip Room (in): 56.5
Rear Hip Room (mm): 1435
Front Leg Room (in): 40.9
Front Leg Room (mm): 1038
Rear Leg Room (in): 37.0
Rear Leg Room (mm): 940
3rd Row Shoulder Room (in): 46.9
3rd Row Shoulder Room (mm): 1192
Front Shoulder Room (in): 57.7
Front Shoulder Room (mm): 1465
Rear Shoulder Room (in): 56.5
Rear Shoulder Room (mm): 1435
Ramp Angles
Approach Angle: 23.8
Departure Angle: 23.3
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: SPA
Wheelbase Type: Short
Spoiler
Location: Roof
Bumpers
Location: Front
Location: Rear
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Exterior Door Handles
Color: Body Colour
Rear Door
Type: Lifting Gate
Headlight Control
Active High Beam: yes
Directional Headlights: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: White
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Sliding: yes
Front Sunroof Sunshade: yes
Front Sunroof Tilting: yes
Front Sunroof Type: Glass
Blind
Location: Side
Side Blind Type: Manual
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Alloy
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors Tilting for Reverse: Automatic
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Auto-Dimming Passenger Door Mirrors: yes
Passenger Door Mirrors/Cameras Colour: Alloy
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2250
Gross Trailer Weight Braked (lb): 4960
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Published Kerb Weight (kg): 2296
Published Kerb Weight (lb): 5062
Audio System
Colour Screen: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 10
Upgraded Speakers: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Centre Floor Console: Alloy
Doors: Alloy
Instrument Panel: Alloy
Airbags
Number of Airbags: 7
Child Safety Seat
Location: Rear Seats
Number: 2
Type: Integrated
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Location: 3rd Row Seats
3rd Row Seats Number: 2
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Brakes: yes
Activates Steering: yes
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: All Three Rows
Third Row Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: 2-Way Electric
Driver Front Seat Number of Electrical Adjustments: 7
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Thigh Support Type: Electric
Driver Front Seat Type: Sports
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Height Type: Memory
Location: Passenger
Passenger Front Seat Lumbar Type: 2-Way Electric
Passenger Front Seat Number of Electrical Adjustments: 7
Passenger Front Seat Reach Type: Memory
Passenger Front Seat Reclining Type: Memory
Passenger Front Seat Thigh Support Type: Electric
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 7
Configuration: 2+3+2
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 4
Rear Control For Climate Control: yes
Secondary Ventilation Controls
3rd Row Location: 3rd Row
Passenger Seat Location: Passenger Seat
Rear Seats Location: Rear Seats
Ventilation System
Digital Display: yes
Anti-Theft Protection
Peripheral: yes
Remote Operation: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
