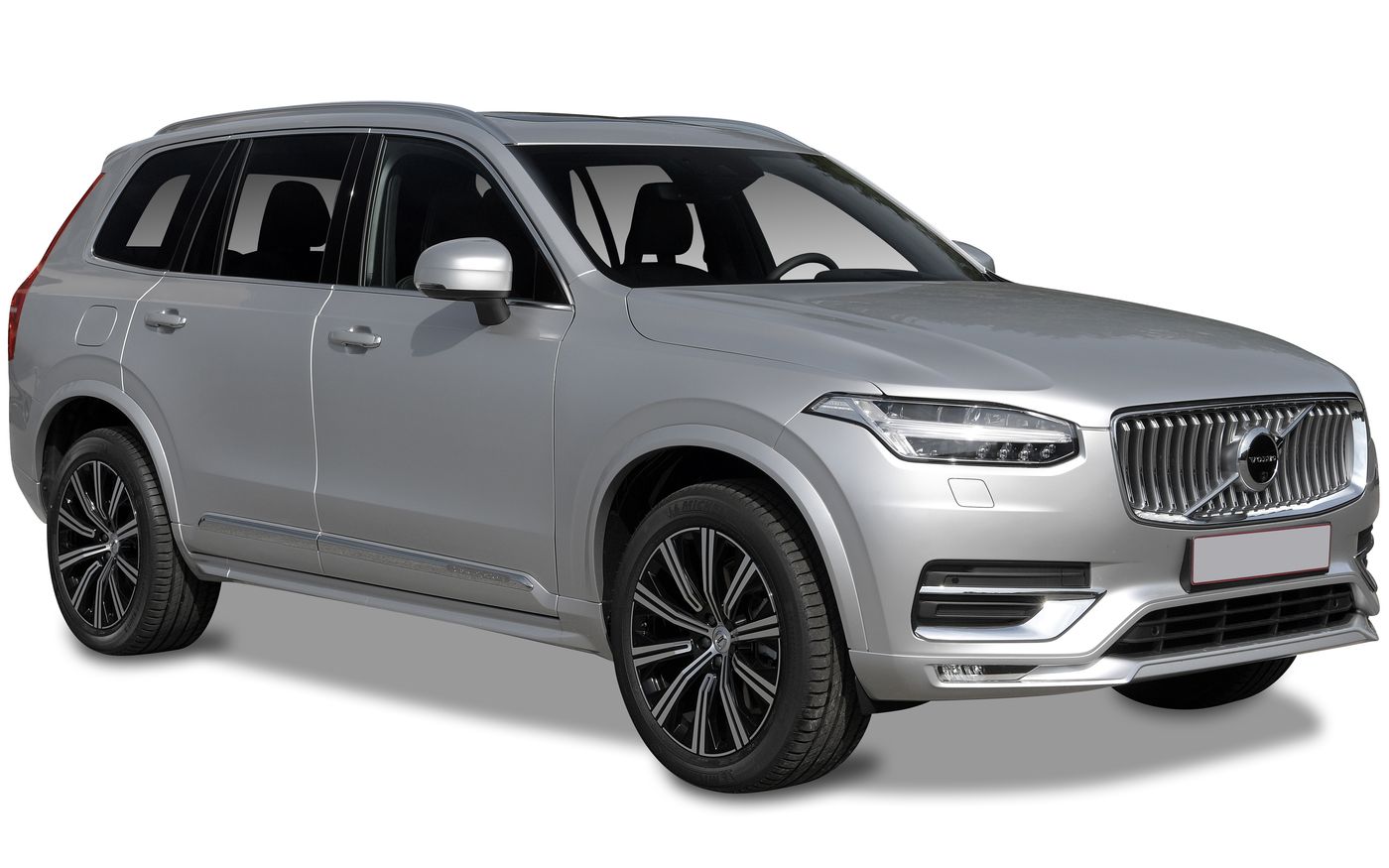

Volvo XC90 Recharge Ultimate (2024) price & specs
Save $$$ with CarExpert*
From
$128,390â€
Recharge Ultimate
Overview
The 2024 Volvo XC90 Recharge Ultimate is a four-wheel drive, 5-door SUV that was released to the Australian market on 1st July 2024. The Volvo XC90 is regarded as a Suv Large Luxury built in Sweden with prices starting at $128,390 before on-road costs.
This Volvo XC90 uses a fully electric engine.
The Volvo XC90 measures 1776mm (69.9 inches) in height, 4953mm (195.0 inches) in length, 1958mm (77.1 inches) in width with a 2984mm (117.5 inches) wheelbase that brings about a total of 2356kg (5194.1 lbs) of unladen weight. The XC90 Recharge Ultimate comes standard with 275/35 R22 front tyres and 275/35 R22 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
The 2024 Volvo XC90 Recharge Ultimate has a 205mm ground clearance with a 2400kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the XC90 compare?
Quickly see how the 2024 Volvo XC90 Recharge Ultimate stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
86.69 - 144.31 kW/t
75.47 kW/t
220.45 kW/t
Boot Space
262 - 314 litres
176 litres
857 litres
Fuel Efficiency
1.8 - 8.2 L/100km
1.6 L/100km
13 L/100km
Vehicle Range
866 - 3,944 km
420 km
4,722 km
Price
$99,940 - $128,990
$72,590
$366,200
Warranty (Years)
5 years
2 years
7 years
Warranty (Distance)
Unlimited
Unlimited
Years on Sale
1 - 4 years
1 year
7 years
Service Interval
12 months
12 months
24 months
Towing & Off-Road Capability
Gross Vehicle Weight
2,750 kg
2,435 kg
3,450 kg
Braked Towing Capacity
2,400 kg
750 kg
3,500 kg
Approach Angle
23.8°
14°
38°
Departure Angle
23.3°
14.4°
40°
Ground Clearance Unladen
205 - 216 mm
131 mm
291 mm
Battery & Charging
Max. battery kilowatt hour
0.4 - 18.8 kWh
0.2 kWh
114 kWh
AC Charging (max kW)
3.7 kW
3.7 kW
22 kW
Vehicle Range (EV)
77 km
51 km
620 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,953 mm
1,958 mm
inc mirror: 2,140 mm
inc mirror: 2,140 mm
1,776 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,953 mm |
| Overall Width | 1,958 mm |
| Overall Width (Inc Mirror) | 2,140 mm |
| Overall Height | 1,776 mm |
| Wheelbase | 2,984 mm |
| Turning Circle | 11,800 mm |
| Load Capacity | 394 mm |
Looking for complete Volvo XC90 size & space specs?
Our Volvo XC90 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Volvo XC90 Features & Specs
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Steering: yes
Suspension: yes
Transmission: yes
Embedded Infotainment User Interface
UI Number of Months Online Services: 48
Memorised Adjustment
Door Mirror Position: yes
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Mirrorlink Months Subscription Included: 0
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Telematics
Advanced Auto Collision Notification: yes
Breakdown Assistance: yes
Concierge Months Included: 0
Connection Type: Via Sim In Vehicle
Tracker System: yes
USB Charging Port
Location: Front
Number of Ports in Front: 2
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
AI-Powered: yes
Virtual Assistant: Google
Compressor
Compressor: Turbo & Supercharger
Number of Compressors: 2
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Country Highway): 164
CO2 Level (Combined): 40
Standard Met: EU6
Engine
Engine (cc): 1969
Engine Configuration: In-Line
Engine Code: B4204t53
Engine (L): 2.0
Number of Cylinders: 4
Interested in buying a Volvo XC90 Recharge Ultimate?
Save $$$ with CarExpert*
From
$128,390â€
Additional Fuel Types
Unleaded Fuel: Unleaded
Fuel
Generic Primary Fuel Type: Electric
Minimum Fuel Octane Number: 95
Minimum Fuel Type: Premium Unleaded
Other Fuel Type: Premium Unleaded
Fuel Type: Electric
Fuel Tanks
Main Capacity Gal: 18.8
Main Capacity (L): 71
Main Capacity Uk Gallons: 15.6
Main Type: Total
Charging Connector
Type 2 (Mennekes) Charging Socket AC 1: yes
Type 2 (Mennekes) Location of AC 1 Socket: Front Side
Type 2 (Mennekes) Type: Type 2 (Mennekes)
Charging Information
Mode 2 Amps: 10
Mode 2 Duration: 8.00
Mode 2 Quoted kW Supplied To Vehicle: 2.00
Mode 2 Scenario: Mode 2
Mode 2 State of Charge Ends At (%): 100
Mode 2 State of Charge Starts At (%): 5
Mode 2 Voltage: 230
Mode 3 amps (A): 16
Mode 3 Calc Duration Max Supplied 0% To 100%: 5.58
Mode 3 Calculated Duration 3.7 kW 0% To 100%: 5.61
Mode 3 Calculated Duration 7.4 kW 0% To 100%: 5.58
Mode 3 Duration: 5.00
Mode 3 Max kW Supplied To Vehicle: 3.70
Mode 3 Scenario: Mode 3
Mode 3 State of Charge Ends At (%): 100
Mode 3 State of Charge Starts At (%): 5
Mode 3 Voltage: 230
Electric Driven Wheels
Electric Driven Wheels: Rear
Electric Motor
Motor 1 Type: Ac Perm Magnet Synchronous
Motor 1 Max Torque Motor (Nm): 309
Motor 1 Location: Rear
Motor 1 Number: 1
Motor 1 Power Output (hp/PS): 145.5
Motor 1 Power Output Motor (kW): 107.0
Motor 2 Electric Motor Type: Integrated Starter Generator
Motor 2 Max Torque Motor (Nm): 160
Motor 2 Motor Location: Transmission-Integrated Motor Generator
Motor 2 Number: 2
Motor 2 Power Output Motor (hp/PS): 54.4
Motor 2 Power Output Motor (kW): 40.0
Electric Power Source
Battery Cell Count: 102
Battery Cell Type: Prismatic
Battery Supplier: Contemporary Amperex Tech
Battery Type: Lithium Ion
Battery Voltage: 428.0
Max Wireless Charging (kW): 0.0
Maximum Battery (kWh): 18.80
Number of kWh Included: 0
Number of Months Subscription Included: 0
Onboard Charger: 3.7
Range (km): 77.00
Range (miles): 47.85
Hybrid Type
Hybrid Type: Active Hybrid
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Orientation: Fixed
Dashboard Centre 1 Screen Size (in): 9.00
Dashboard Centre 1 Touch Screen: yes
Instrument Cluster 1 Screen Control Wheel: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 12.30
Instrument Cluster
Head Up Display: Windscreen
Reconfigurable: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 3944
ADR 81/02 Calculated Vehicle Range (miles): 2451
ADR 81/02 Combined (km/L): 55.6
ADR 81/02 Combined (L/100km): 1.8
ADR 81/02 Combined (miles per UK gallon): 157
ADR 81/02 Combined (mpg): 131
ADR 81/02 Country Highway (km/L): 13.9
ADR 81/02 Country Highway (L/100km): 7.2
ADR 81/02 Country Highway (miles per UK gallon): 39
ADR 81/02 Country Highway (mpg): 33
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 1.8
Performance
Acceleration 0 To 100 km/h: 5.3
Max Speed On Electric Power Only (km/h): 140
Maximum Speed (km/h): 180
Maximum Speed (mph): 112
Power
Maximum Power (hp/PS): 462
Maximum Power hp/PS Electric Motor: 88
Maximum Power (kW): 340
Maximum Power kW Electric Motor: 65
Maximum Torque (Nm): 709
Maximum Torque Electric Motor (Nm): 240
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 6000
Rpm For Maximum Torque Low: 3000
Power Consumption
Combined (km/kWh): 0.2
Combined (kWh/100 miles): 43.0
Combined (kWh/100km): 26.7
Combined (kWh/km): 0.6
Combined (kWh/mile): 0.4
Combined (miles/kWh): 0.4
Combined (Wh/km): 267
Combined (Wh/mile): 430
Secondary Fuel Economy
Combined (km/L): 55.6
Combined (L/100km): 1.8
Combined (mpg): 131
Secondary Power
Maximum Power (hp/PS): 317
Maximum Power (kW): 233
Maximum Torque (Nm): 400
Rpm For Maximum Power Low: 6000
Rpm For Maximum Torque Low: 3000
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Automatic
Limited Slip Differential
Location: Front
Front Type: Electronic
Transmission
Code: Aw Tg-81-Sc Awd
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Simulated Gears: 0
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Heated: yes
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Synthetic Leather
Alternate Suspension
Type: Sport
Responsive Suspension
Driver Selectable: yes
Type: Electronic
Suspension
Location: Front
Front Spring Type: air
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: air
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 104
Location: Front
Front Wheels Tire Profile: 35
Front Wheels Tire Speed Rating: W
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 275
Rear Wheels Tire Load Index: 104
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 35
Rear Wheels Tire Speed Rating: W
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 275
Wheels
Location: Front
Front Wheels Rim Diameter (In): 22
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 9.0
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 22
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 9.0
Rear Two Tone: yes
Cargo Capacity
Frunk Capacity (cu ft): 0.0
Frunk Capacity (L): 0
Measurement Standard: ISO
Rear Seat Down (cu ft): 64.1
Rear Seat Down (L): 1816
Rear Seat Up to Lower Window (cu ft): 9.3
Rear Seat Up to Lower Window (L): 262
External Dimensions
Kerb to Kerb Turning Circle (mm): 11800
Front Track (in): 65.6
Front Track (mm): 1665
Ground Clearance Unladen (in): 8.1
Ground Clearance Unladen (mm): 205
Kerb To Kerb Turning Circle (ft): 38.7
Overall Height (in): 69.9
Overall Height (mm): 1776
Overall Length (in): 195.0
Overall Length (mm): 4953
Overall Width Folded Mirror (in): 79.1
Overall Width Folded Mirror (mm): 2008
Overall Width (in): 77.1
Overall Width Inc Mirror (in): 84.3
Overall Width Inc Mirror (mm): 2140
Overall Width (mm): 1958
Rear Track (in): 65.6
Rear Track (mm): 1667
Wheelbase (in): 117.5
Wheelbase (mm): 2984
Internal Dimensions
3rd Row Headroom (in): 36.3
3rd Row Headroom (mm): 923
Front Headroom (in): 39.3
Front Headroom (mm): 998
Rear Headroom (in): 39.3
Rear Headroom (mm): 997
3rd Row Hip Room (in): 44.9
3rd Row Hip Room (mm): 1140
Front Hip Room (in): 56.0
Front Hip Room (mm): 1422
Rear Hip Room (in): 56.5
Rear Hip Room (mm): 1435
3rd Row Leg Room (in): 31.9
3rd Row Leg Room (mm): 811
Front Leg Room (in): 40.9
Front Leg Room (mm): 1038
Rear Leg Room (in): 37.0
Rear Leg Room (mm): 940
3rd Row Shoulder Room (in): 46.9
3rd Row Shoulder Room (mm): 1192
Front Shoulder Room (in): 57.7
Front Shoulder Room (mm): 1465
Rear Shoulder Room (in): 56.5
Rear Shoulder Room (mm): 1435
Ramp Angles
Approach Angle: 23.8
Departure Angle: 23.3
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: SPA
Wheelbase Type: Short
Spoiler
Location: Roof
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Active High Beam: yes
Directional Headlights: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Complex Surface
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Black
Type: Pearl
Glass Roof
Sunshade Type: Electric
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Remote
Front Sunroof Type: Glass
Blind
Location: Side
Side Blind Type: Manual
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Alloy
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors Tilting for Reverse: Automatic
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Auto-Dimming Passenger Door Mirrors: yes
Passenger Door Mirrors/Cameras Colour: Alloy
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2400
Gross Trailer Weight Braked (lb): 5291
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2750
Gross Vehicle Weight (lb): 6063
Published Kerb Weight (kg): 2356
Published Kerb Weight (lb): 5194
Tare Weight (kg): 2310
Audio System
Digital Radio: yes
Radio Type: FM
System Power (W): 600
Touch Screen: yes
External Connections
USB (Front): yes
Total 3rd Row USB Connections: 0
Total Front USB Connections: 2
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Bowers & Wilkins
Number of Speakers: 19
Subwoofer: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Door Sill Protector
Illuminated: yes
Luxury Trim
Centre Floor Console: Carbon Fibre
Doors: Carbon Fibre
Gear Selector: Leather
Instrument Panel: Carbon & Leather
Airbags
Number of Airbags: 7
Autonomous Drive
Active Lane Control: yes
Highway Assist: yes
Level: 2 - Partial Automation
Front Airbag
Location: Driver
Location: Passenger
Front Cross Traffic Collision Avoidance
Includes Braking: yes
Type: Sensor
Front Seat Belts
Driver Height Adjustable: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Location: 3rd Row Seats
3rd Row Seats Number: 2
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Brakes: yes
Activates Steering: yes
Overtaking Sensor
Active Without Turn Signal: yes
Includes Collision Avoidance: yes
Steering Vibration: yes
Rear Cross Traffic Collision Avoidance
Includes Braking: yes
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: All Three Rows
Third Row Seat Belts
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: 2-Way Electric
Driver Front Seat Number of Electrical Adjustments: 7
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Thigh Support Type: Electric
Driver Front Seat Type: Sports
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Memory
Location: Passenger
Passenger Front Seat Lumbar Type: 2-Way Electric
Passenger Front Seat Number of Electrical Adjustments: 7
Passenger Front Seat Reach Type: Memory
Passenger Front Seat Reclining Type: Memory
Passenger Front Seat Thigh Support Type: Electric
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Premium Leather
Main Seat Material: Premium Leather
Marketed As Sustainable Vegan: yes
Seating
Capacity: 7
Configuration: 2+3+2
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 4
Rear Control For Climate Control: yes
Secondary Ventilation Controls
3rd Row Location: 3rd Row
Individual Rear Location: Individual Rear
Passenger Seat Location: Passenger Seat
Ventilation System
Engine Heater: yes
Touch Screen Controls: yes
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
