BMW 5 Series M Sport (2012) price & specs
Save $$$ with CarExpert*
From
$97,800†
M Sport
Overview

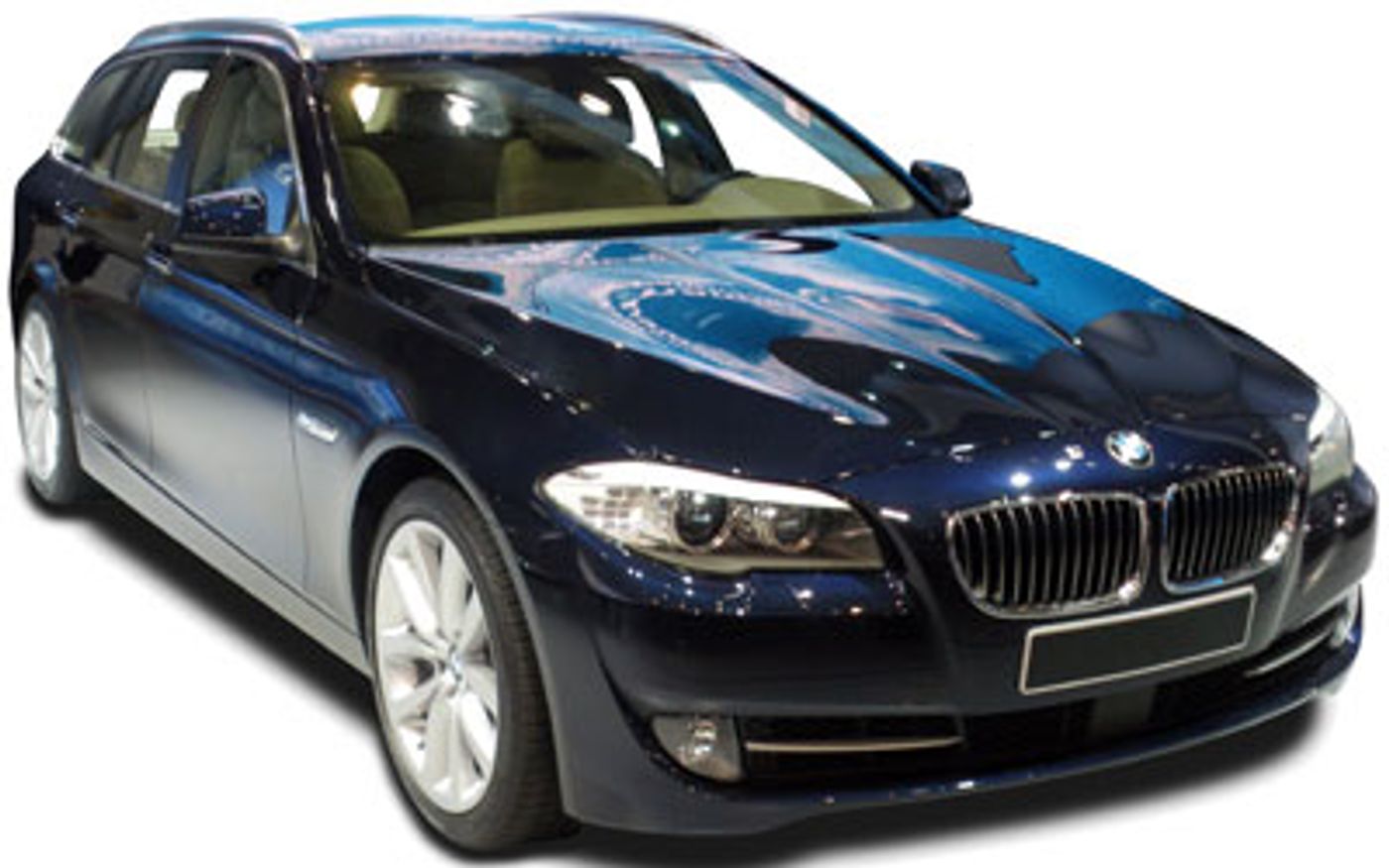

The 2012 BMW 5 Series M Sport is a rear-wheel drive, 5-door Station Wagon that was released to the Australian market on 3rd April 2010 classified as a F11. The BMW 5 Series is regarded as a Large Luxury built in Germany with prices starting at $97,800 before on-road costs.
This BMW 5 Series is powered by a 2.0L 4-cylinder engine that has 135 kW of power (at 4000 rpm) and 380 Nm of torque (at 1750 rpm) via an Eight-speed Automatic transmission. BMW claims the 5 Series M Sport uses 5.1L/100km of Diesel in the combined city and highway cycle while putting out 133g of CO2. It has a 70L fuel tank, meaning it should be able to travel 1373km per full tank
The BMW 5 Series measures 1462mm (57.6 inches) in height, 4907mm (193.2 inches) in length, 1860mm (73.2 inches) in width with a 2968mm (116.9 inches) wheelbase that brings about a total of 1715kg (3780.9 lbs) of unladen weight. The 5 Series M Sport comes standard with 245/40 R18 front tyres and 275/40 R18 rear tyres. It has a 36 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the 5 Series compare?
Quickly see how the 2012 BMW 5 Series M Sport stacks up against its competition.
Select any benchmark to see more details.
Power to Weight
78.72 - 163.93 kW/t
72.05 kW/t
211.83 kW/t
Boot Space
520 - 560 litres
465 litres
695 litres
Fuel Efficiency
4.7 - 10.4 L/100km
4.7 L/100km
12.5 L/100km
Vehicle Range
673 - 1,489 km
560 km
1,569 km
Price
$77,900 - $184,800
$77,400
$244,500
Warranty (Years)
3 years
3 years
4 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
2 - 3 years
2 years
3 years
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,907 mm
1,860 mm
1,462 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,907 mm |
| Overall Width | 1,860 mm |
| Overall Height | 1,462 mm |
| Wheelbase | 2,968 mm |
| Turning Circle | 11,950 mm |
| Load Capacity | 650 mm |
Looking for complete BMW 5 Series size & space specs?
Our BMW 5 Series Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
BMW 5 Series Sales rolling 12-months#
Explore BMW 5 Series Features & Specs
Compressor
Compressor: Turbo
Emission Control Level
CO2 Level (Combined): 133
Standard Met: EU5
Engine
Bore Engine: 84.0
Engine (cc): 1995
Engine Configuration: In-Line
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 90.0
Valve Gear Type: Double Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 18.5
Main Capacity (L): 70
Main Capacity Uk Gallons: 15.4
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Range for Remaining Fuel: yes
Display Screen
Location: ?
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1373
ADR 81/02 Calculated Vehicle Range (miles): 853
ADR 81/02 Combined (km/L): 19.6
ADR 81/02 Combined (L/100km): 5.1
ADR 81/02 Combined (miles per UK gallon): 55
ADR 81/02 Combined (mpg): 46
ADR 81/02 Country Highway (km/L): 22.7
ADR 81/02 Country Highway (L/100km): 4.4
ADR 81/02 Country Highway (miles per UK gallon): 64
ADR 81/02 Country Highway (mpg): 53
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 16.4
ADR 81/02 Urban (L/100km): 6.1
ADR 81/02 Urban (miles per UK gallon): 46
ADR 81/02 Urban (mpg): 39
Fuel Economy
ADR 81/02 (L/100km): 5.1
Performance
Acceleration 0 To 100 km/h: 8.3
Maximum Speed (km/h): 220
Maximum Speed (mph): 137
Power
Maximum Power (hp/PS): 184
Maximum Power (kW): 135
Maximum Torque (Nm): 380
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 1750
Drive
Driven Wheels: Rear
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Code: 8hp70
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Floor
Sports Or Close Ratio: yes
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Heated: yes
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Alternate Suspension
Type: Sport
Responsive Suspension
Driver Selectable: yes
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: air
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Suspension Levelling
Location: Rear
Tires
Location: Front
Front Wheels Tire Official Brochure Tire Size: yes
Front Wheels Tire Profile: 45
Front Wheels Tire Run Flat: yes
Front Wheels Tire Speed Rating: Y
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 245
Rear Wheels Tire Location: Rear
Rear Wheels Tire Official Brochure Tire Size: yes
Rear Wheels Tire Profile: 40
Rear Wheels Tire Run Flat: yes
Rear Wheels Tire Speed Rating: Y
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 275
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 8.0
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 9.0
Body Style
Body Type: Station Wagon
Local Body Type: Station Wagon
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Capacity
Rear Seat Down (cu ft): 59.0
Rear Seat Down (L): 1670
Rear Seat Up to Lower Window (cu ft): 19.8
Rear Seat Up to Lower Window (L): 560
External Dimensions
Kerb to Kerb Turning Circle (mm): 11950
Front Track (in): 63.0
Front Track (mm): 1600
Kerb To Kerb Turning Circle (ft): 39.2
Overall Height (in): 57.6
Overall Height (mm): 1462
Overall Length (in): 193.2
Overall Length (mm): 4907
Overall Width (in): 73.2
Overall Width (mm): 1860
Rear Track (in): 64.0
Rear Track (mm): 1626
Wheelbase (in): 116.9
Wheelbase (mm): 2968
Internal Dimensions
Front Headroom (in): 40.5
Front Headroom (mm): 1028
Rear Headroom (in): 39.1
Rear Headroom (mm): 993
Front Hip Room (in): 59.8
Front Hip Room (mm): 1518
Rear Hip Room (in): 58.5
Rear Hip Room (mm): 1486
Front Shoulder Room (in): 58.3
Front Shoulder Room (mm): 1480
Rear Shoulder Room (in): 56.2
Rear Shoulder Room (mm): 1427
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Height Adjustment: Manual
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
Paint
External Colour: Silver
Type: Gloss
Roof Rails
Colour: Chrome/Silver
Sunroof
Front Sunroof Location: Front
Front Sunroof One Touch Opening: yes
Front Sunroof Operation: Electric
Front Sunroof Sliding: yes
Front Sunroof Sunshade: yes
Front Sunroof Tilting: yes
Front Sunroof Type: Glass
Blind
Location: Side
Side Blind Type: Manual
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Electrically Foldable Mirrors
Operation: Electric
Headlight Cleaners
Cleaners Type: High Pressure
Heat Reflective Glass
Location: ?
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 2000
Gross Trailer Weight Braked (lb): 4409
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 2365
Gross Vehicle Weight (lb): 5214
Published Kerb Weight (kg): 1715
Published Kerb Weight (lb): 3781
Audio System
CD Player Reads MP3: yes
In-Dash CD: yes
Radio Type: Am/Fm
Disc Player
Glove Box Capacity: 6
Location: Glove Box
Glove Box Media Type: DVD
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Bang & Olufsen
Number of Speakers: 6
Upgraded Speakers: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Ashtray
Illuminated Front Ashtray: yes
Location: Front
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cigar Lighter
Illuminated Front Seat Lighter: yes
Location: Front Seats
Entertainment Display Screen
Location: Back Of Front Seats
Location: Front
Memorised Adjustment
Door Mirror Position: yes
Number of Memorised Driver Seat Positions: 4
Adjustment Settings: 3
Parking Assistance
Location: Front
Front Type: Full Automatic Parking
Location: Rear
Rear Type: Full Automatic Parking
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Front & Rear
Number of Outlets in Front Rear (12V): 2
Location (12V): Rear
Reading Lights
Location: Rear
Smart Card/Smart Key
Type: Manual
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Luxury Trim
Centre Floor Console: Alloy
Doors: Alloy
Gear Selector: Alloy & Leather
Instrument Panel: Alloy
Crash Test Results
ANCAP Overall: 5.0
ANCAP Standard: Ancap
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Number of Electrical Adjustments: 2
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Electric
Driver Front Seat Type: Sports
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Lumbar Adjustment: yes
Passenger Front Seat Number of Electrical Adjustments: 2
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Tilt Adjustment: yes
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Rear Outlet: yes
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Rear Seats Digital Display: yes
Rear Seats Location: Rear Seats
Ventilation System
Automatic Recirculation: yes
Digital Display: yes
Anti-Theft Protection
Anti-Lift: yes
Interior Monitoring: yes
Peripheral: yes
Remote Operation: yes
Power Locks
Includes Sunroof: yes
Operation: Remote
Intermediate Service
Variable Distance Period: yes
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
† Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
