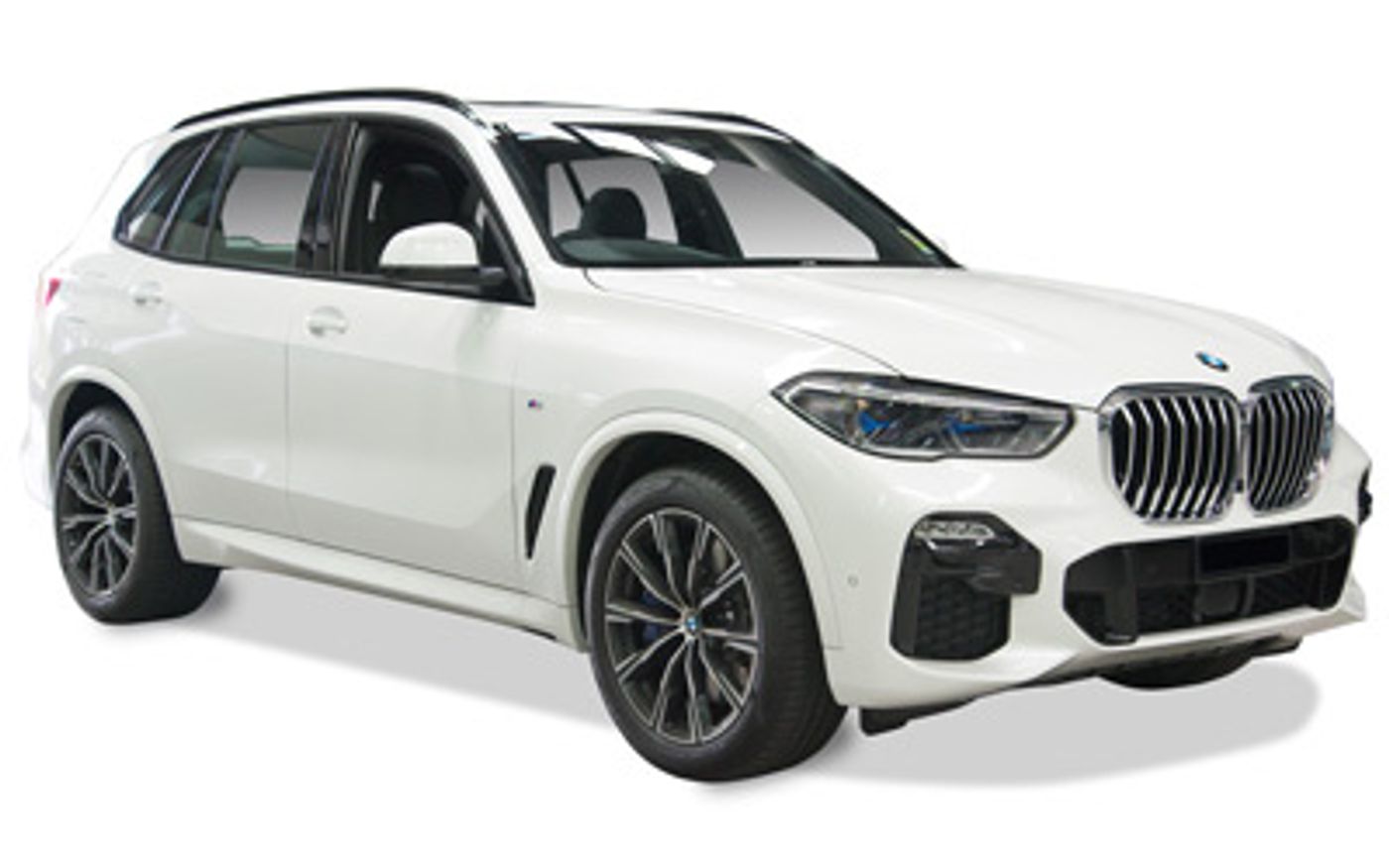

BMW X5 M Sport (2020) price & specs
Save $$$ with CarExpert*
From
$109,800â€
M Sport
Overview
The 2020 BMW X5 M Sport is a four-wheel drive, 5-door SUV that was released to the Australian market on 2nd August 2019 classified as a G05. The BMW X5 is regarded as a Suv Large Luxury built in USA with prices starting at $109,800 before on-road costs.
This BMW X5 is powered by a 2.0L 4-cylinder engine that has 170 kW of power and 450 Nm of torque via an Eight-speed Automatic transmission. BMW claims the X5 M Sport uses 6.7L/100km of Diesel in the combined city and highway cycle while putting out nullg of CO2. It has a 80L fuel tank, meaning it should be able to travel 1194km per full tank
The BMW X5 measures 1745mm (68.7 inches) in height, 4922mm (193.8 inches) in length, 2004mm (78.9 inches) in width with a 2975mm (117.1 inches) wheelbase that brings about a total of 2145kg (4728.9 lbs) of unladen weight. The X5 M Sport comes standard with 275/40 R20 front tyres and 305/40 R20 rear tyres. It has a 36 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the X5 compare?
Quickly see how the 2020 BMW X5 M Sport stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
79.25 - 192.87 kW/t
61.69 kW/t
203.23 kW/t
Boot Space
645 - 650 litres
176 litres
857 litres
Fuel Efficiency
2.3 - 12.5 L/100km
2.1 L/100km
13.5 L/100km
Vehicle Range
664 - 1,194 km
593 km
1,351 km
Price
$99,900 - $209,900
$69,626
$330,000
Warranty (Years)
3 years
3 years
5 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
1 - 3 years
1 year
7 years
Towing & Off-Road Capability
Gross Vehicle Weight
2,800 - 3,150 kg
2,380 kg
3,200 kg
Braked Towing Capacity
2,700 - 3,500 kg
1,000 kg
3,500 kg
Approach Angle
25.2°
16°
38°
Departure Angle
22.2°
14.4°
40°
Ground Clearance Unladen
213 mm
185 mm
291 mm
Battery & Charging
Max. battery kilowatt hour
24 kWh
0.2 kWh
95 kWh
Vehicle Range (EV)
86 km
36 km
446 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,922 mm
2,004 mm
1,745 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,922 mm |
| Overall Width | 2,004 mm |
| Overall Height | 1,745 mm |
| Wheelbase | 2,975 mm |
Looking for complete BMW X5 size & space specs?
Our BMW X5 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
BMW X5 Sales rolling 12-months#
Explore BMW X5 Features & Specs
Automatic Door Closing
Rear Boot Hatch: yes
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Driver Modes
Engine Mapping: yes
Stability Control: yes
Steering: yes
Traction Control: yes
Memorised Adjustment
Door Mirror Position: yes
Adjustment Head Restraint: yes
Adjustment Settings: 3
Wheel Position: yes
Mobile Integration
Apple Carplay: yes
Parking Assistance
Location: Rear
Rear Type: Full Auto Park & Perpendicular & Exit
Parking Distance System
Location: Front
Front Type: Sensor & Camera
Location: Rear
Rear Type: Sensor & Camera
Location: Side
Side Type: Sensor & Camera
Power Outlet 12V
Location (12V): Boot/Cargo
Location (12V): Front
Location (12V): Rear
Remote HVAC Control
Includes Phone: yes
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Memory Seat Adjustments: yes
Telematics
Advanced Auto Collision Notification: yes
Concierge Service: yes
Connection Type: Via Sim In Vehicle
Tracker System: yes
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Compressor
Compressor: Turbo
Electrical System
Voltage: 12
Emission Control Level
Standard Met: EU5
Engine
Bore Engine: 84.0
Engine (cc): 1995
Engine Configuration: In-Line
Engine (L): 2.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 90.0
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Type: Total
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 12.30
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 12.30
Instrument Cluster
Head Up Display: Windscreen
Reconfigurable: yes
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 1194
ADR 81/02 Calculated Vehicle Range (miles): 742
ADR 81/02 Combined (km/L): 14.9
ADR 81/02 Combined (L/100km): 6.7
ADR 81/02 Combined (miles per UK gallon): 42
ADR 81/02 Combined (mpg): 35
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 6.7
Performance
Acceleration 0 To 100 km/h: 7.5
Power
Maximum Power (hp/PS): 231
Maximum Power (kW): 170
Maximum Torque (Nm): 450
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Full-Time
Limited Slip Differential
Location: Front
Front Type: Electronic
Location: Rear
Rear Type: Electronic
Transmission
Code: 8hp76
Description: Automatic With Manual Mode
Gear Change Paddles: yes
Manual Mode: yes
Number of Speeds: 8
Shift Lever Location: Steering Wheel
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 4
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Electric Adjustment: yes
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Responsive Suspension
Driver Selectable: yes
Type: Electronic
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Suspension Levelling
Location: Front
Front Operation: Automatic
Location: Rear
Rear Operation: Automatic
Tires
Front Wheels Tire Diameter: 22
Front Wheels Tire Load Index: 110
Location: Front
Front Wheels Tire Profile: 45
Front Wheels Tire Run Flat: yes
Front Wheels Tire Speed Rating: Y
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 275
Rear Wheels Tire Diameter: 22
Rear Wheels Tire Load Index: 112
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 40
Rear Wheels Tire Run Flat: yes
Rear Wheels Tire Speed Rating: Y
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 305
Wheels
Location: Front
Front Wheels Rim Diameter (In): 20
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 9.0
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 20
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 10.5
Rear Two Tone: yes
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: G05
Wheelbase Type: Short
Cargo Capacity
Measurement Standard: ISO
Rear Seat Down (cu ft): 65.7
Rear Seat Down (L): 1860
Rear Seat Up to Lower Window (cu ft): 22.8
Rear Seat Up to Lower Window (L): 645
External Dimensions
Front Track (in): 66.1
Front Track (mm): 1680
Overall Height (in): 68.7
Overall Height (mm): 1745
Overall Length (in): 193.8
Overall Length (mm): 4922
Overall Width (in): 78.9
Overall Width (mm): 2004
Rear Track (in): 66.5
Rear Track (mm): 1689
Wall to Wall Turning Circle (ft): 41.3
Wall to Wall Turning Circle (mm): 12600
Wheelbase (in): 117.1
Wheelbase (mm): 2975
Internal Dimensions
Front Headroom (in): 40.8
Front Headroom (mm): 1037
Rear Headroom (in): 39.4
Rear Headroom (mm): 1001
Front Hip Room (in): 61.4
Front Hip Room (mm): 1560
Rear Hip Room (in): 60.0
Rear Hip Room (mm): 1525
Front Shoulder Room (in): 60.0
Front Shoulder Room (mm): 1525
Rear Shoulder Room (in): 58.1
Rear Shoulder Room (mm): 1476
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Split Gate
Headlight Control
Auto Highbeam: yes
Directional Headlights: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: White
Type: Gloss
Sunroof
Front Sunroof Location: Front
Front Sunroof One Touch Opening: yes
Front Sunroof Operation: Remote
Front Sunroof Sliding: yes
Front Sunroof Sunshade: yes
Front Sunroof Tilting: yes
Front Sunroof Type: Glass
Blind
Location: Side
Side Blind Type: Manual
Door Mirrors/Cameras
Auto-Dimming Driver Door Mirrors: yes
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors Tilting for Reverse: Automatic
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Privacy Glass
Location: Rear Side
Rear View Mirror Camera
Auto Dimming: yes
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Kerb Weight Inc Driver (kg): 2145
Kerb Weight Inc Driver (lb): 4729
Kerb Weight Includes Driver: yes
Published Kerb Weight (kg): 2145
Published Kerb Weight (lb): 4729
Tare Weight (kg): 2086
Audio System
Colour Screen: yes
Digital Radio: yes
In-Dash CD: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
USB (Rear): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 10
Subwoofer: yes
Surround Sound: yes
Upgraded Speakers: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Load Restraint
Sliding Anchorage Points: yes
Heated Door Panels
Location: Front
Luxury Trim
Centre Floor Console: Alloy
Doors: Alloy
Instrument Panel: Alloy
Airbags
Number of Airbags: 7
Autonomous Drive
Active Lane Control: yes
Level: 2 - Partial Automation
Front Airbag
Location: Driver
Location: Passenger
Front Cross Traffic Collision Avoidance
Type: Sensor
Front Seat Belts
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Location: 3rd Row Seats
3rd Row Seats Number: 2
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Third Row Seat Belts
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Fore/Aft Adjustment: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Adjustment: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Lumbar Type: 2-Way Electric
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining: yes
Driver Front Seat Reclining Type: Memory
Driver Front Seat Shoulder Adjustment: yes
Driver Front Seat Thigh Support: yes
Driver Front Seat Tilt Adjustment: yes
Driver Front Seat Tilt Type: Memory
Driver Front Seat Type: Sports
Passenger Front Seat Power Adjustable: yes
Passenger Front Seat Fore/Aft Adjustment: yes
Passenger Front Seat Heated: yes
Passenger Front Seat Height Adjustment: yes
Passenger Front Seat Height Type: Electric
Location: Passenger
Passenger Front Seat Lumbar Adjustment: yes
Passenger Front Seat Lumbar Type: 2-Way Electric
Passenger Front Seat Number of Electrical Adjustments: 5
Passenger Front Seat Reach Type: Electric
Passenger Front Seat Reclining: yes
Passenger Front Seat Reclining Type: Electric
Passenger Front Seat Shoulder Adjustment: yes
Passenger Front Seat Thigh Support: yes
Passenger Front Seat Tilt Adjustment: yes
Passenger Front Seat Tilt Type: Memory
Passenger Front Seat Type: Sports
Seat Upholstery
Additional Seat Material: Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 3
Rear Control For Climate Control: yes
Rear Outlet: yes
Secondary Ventilation Controls
Individual Rear Digital Display: yes
Individual Rear Location: Individual Rear
Passenger Seat Digital Display: yes
Passenger Seat Location: Passenger Seat
Rear Seats Location: Rear Seats
Ventilation System
Active Carbon Filter: yes
Automatic Recirculation: yes
Digital Display: yes
Micro Filter: yes
Anti-Theft Protection
Anti-Lift: yes
Interior Monitoring: yes
Peripheral: yes
Remote Operation: yes
Power Locks
Includes Power Windows: yes
Operation: Card Key
Intermediate Service
Variable Distance Period: yes
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
