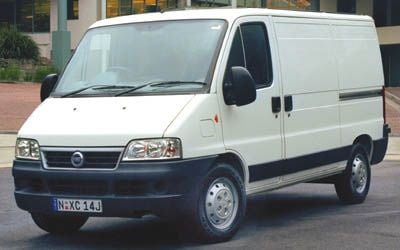

2006 Fiat Ducato

Base

• Audio
  • Antenna Type: Roof
  • Anti-theft Protection Concealable Type: Concealable
  • Number Of Speakers: 4
  • System In-dash Cd
  • System Radio Type: Am/fm
• Body exterior
  • Body Type: Panel Van
  • Cab Type: Single Cab
  • Driver Location: Rhd
  • Local Body Type: Panel Van
  • Local Number Of Doors: 4
  • Number Of Doors: 4
  • Rear Step Location: Rear
  • Roof Type: Semi-high
  • Wheelbase Type: Long
• Brakes
  • Abs Four-wheel Location: 4-wheel
  • Number Of Disc Brakes: 4
  • Number Of Ventilated Disc Brakes: 4
• Bumpers
  • Front Colour: Black
  • Front Location: Front
  • Front Material: Plastic
  • Rear Colour: Black
  • Rear Location: Rear
  • Rear Material: Plastic
• Calculated
  • Power-to-weight Ratio (kw/t): 46.53
• Cargo area
  • Bulkhead Solid Height: Full
  • Bulkhead Solid Type: Solid
  • Bulkhead Solid Width: Full
  • Bulkhead Solid Window
  • Load Restraint Type: Hooks
• Convenience
  • Cigar Lighter Front Seat Location: Front Seats
  • Power Outlet Front Location (12v): Front
• Dimensions
  • Cargo Area Cargo Volume (l): 12000
  • Cargo Area Cargo Volume (cu Ft): 423.8
  • Cargo Area Height (in): 74.1
  • Cargo Area Height (mm): 1808
  • Cargo Area Length (in): 132.3
  • Cargo Area Length (mm): 3360
  • Cargo Area Loading Floor Height (in): 21.3
  • Cargo Area Loading Floor Height (mm): 540
  • Cargo Area Standard Measurement: Manufacturer's Own
  • Cargo Area Width (in): 71.2
  • Cargo Area Width (mm): 1808
  • Cargo Area Width Between Wheelhouses (in): 54.6
  • Cargo Area Width Between Wheelhouses (mm): 1388
  • External Dimensions Front Overhang (in): 35.5
  • External Dimensions Rear Overhang (in): 39.3
  • External Dimensions Wall To Wall Turning Circle (ft): 46.4
  • Front Overhang (mm): 901
  • Front Track (mm): 1720
  • Kerb To Kerb Turning Circle (mm): 13700
  • Overall Height (mm): 2470
  • Overall Length (mm): 5599
  • Overall Width (mm): 2024
  • Rear Overhang (mm): 998
  • Rear Track (mm): 1720
  • Wall To Wall Turning Circle (mm): 14140
  • Wheelbase (mm): 3700
• Doors
  • Cargo Doors Passenger Height (mm): 1769
  • Cargo Doors Passenger Height In: 69.6
  • Cargo Doors Passenger Internal Handles
  • Cargo Doors Passenger Location: Passenger
  • Cargo Doors Passenger Operation: Sliding
  • Cargo Doors Passenger Width (mm): 1265
  • Cargo Doors Passenger Width In: 49.8
  • Cargo Doors Rear Height (mm): 1760
  • Cargo Doors Rear Height In: 69.3
  • Cargo Doors Rear Internal Handles
  • Cargo Doors Rear Location: Rear
  • Cargo Doors Rear Opening Angle: 270
  • Cargo Doors Rear Operation: Double Hinged
  • Cargo Doors Rear Width (mm): 1562
  • Cargo Doors Rear Width In: 61.5
  • Driver Door Location: Driver
  • Driver Door Type: Front Hinged
  • Passenger Door Location: Passenger
  • Passenger Door Type: Front Hinged
• Engine
  • Bore Engine: 94.4
  • Compression Ratio: 19
  • Compressor: Turbo
  • Engine (l): 2.8
  • Engine (cc): 2796
  • Engine Configuration: In-line
  • Number Of Cylinders: 4
  • Number Of Vavles Per Cylinder: 2
  • Stroke Engine: 100
  • Vavle Gear Type: Overhead Cam
• Fuel
  • Fuel System Injection Carburetion: Diesel Common Rail
  • Fuel Tank Main Capacity (l): 80
  • Fuel Tanks Main Fuel Type: Diesel
  • Fuel Tanks Main Type: Total
  • Fuel Type: Diesel
  • Generic Primary Fuel Type: Diesel
• Interior trim
  • Floor Covering Vehicle Cab Compartment: Plastic/rubber
  • Upholstery Color: Blue
• Lights
  • Headlight Control Internal Height Adjustment
  • Headlights Bulb Type Low Beam: Halogen
  • Headlights Lens Type: Complex Surface
• Locks
  • Power Locks Operation: Remote
• Paint
  • External Color: Blue
  • Type: Gloss
• Performance
  • Fuel Consumption Adr 81/02 Combined (l/100km): 9
  • Fuel Consumption Adr 81/02 Standard: Adr 81/02
  • Fuel Consumption As 2877 Combined (l/100km): 9
  • Fuel Consumption As 2877 Combined (mpg): 26
  • Fuel Consumption As 2877 Standard: As 2877
  • Fuel Economy Adr 81/02 (l/100km): 9
  • Power Maximum Power (hp/ps): 128
  • Power Maximum Power (kw): 94
  • Power Maximum Torque (nm): 300
  • Power Measurement Standard: Eec
  • Power Rpm For Maximum Power Low: 3600
  • Power Rpm For Maximum Torque Low: 1800
• Safety
  • Crash Test Results Ancap Standard: Ancap
  • Front Airbag Driver Location: Driver
  • Front Airbag Passenger Location: Passenger
  • Front Seat Belts Driver Height Adjustable
  • Front Seat Belts Driver Operation: Reel
  • Front Seat Belts Driver Seat Position: Driver
  • Front Seat Belts Driver Type: 3-point
  • Front Seat Belts Passenger Height Adjustable
  • Front Seat Belts Passenger Operation: Reel
  • Front Seat Belts Passenger Seat Position: Passenger
  • Front Seat Belts Passenger Type: 3-point
  • Head Restraints Front Seats Height Adjustable
  • Head Restraints Front Seats Location: Front Seats
  • Head Restraints Front Seats Number: 2
• Seats
  • Driver Front Seat Height Adjustment
  • Driver Front Seat Location: Driver
  • Driver Front Seat Lumbar Adjustment
  • Driver Front Seat Type: Bucket
  • Passenger Front Seat Location: Passenger
  • Passenger Front Seat Type: Bucket
  • Seat Upholstery Additional Seat Material: Cloth
  • Seat Upholstery Main Seat Material: Cloth
  • Seating Capacity: 2
  • Seating Configuration: 2+0
• Steering
  • Steering Wheel Height Adjustment
• Storage
  • Cup Holders Front Seats Location: Front Seats
  • Cup Holders Front Seats Type: Fixed
  • Door Pockets Bins Driver Location: Driver
  • Door Pockets Bins Passenger Location: Passenger
• Suspension
  • Suspension Front Location: Front
  • Suspension Front Spring Type: Coil
  • Suspension Front Stabilizer Bar
  • Suspension Front Type: Strut
  • Suspension Front Wheel Dependence: Independent
  • Suspension Rear Location: Rear
  • Suspension Rear Spring Type: Leaf
  • Suspension Rear Type: Beam
  • Suspension Rear Wheel Dependence: Rigid
• Transmission
  • Drive Driven Wheels: Front
  • Transmission Description: Manual
  • Transmission Number Of Speeds: 5
  • Transmission Type: Manual
• Ventilation
  • Fully Automated Climate Control
• Visibility
  • Driver Door Mirrors/cameras Colour: Black
  • Driver Door Mirrors/cameras Location: Driver
  • Driver Door Mirrors/cameras Type: Electrically Adjustable
  • Front Electric Windows: Front
  • Intermittent Wipe Windshield Wipers: Fixed
  • Passenger Door Mirrors/cameras Colour: Black
  • Passenger Door Mirrors/cameras Location: Passenger
  • Passenger Door Mirrors/cameras Type: Electrically Adjustable
  • Rear View Window Rear Window Defogger
  • Wide Angle Driver Door Mirrors/cameras
  • Wide Angle Passenger Door Mirrors/cameras
• Warranty
  • Anti-corrosion Distance (km): Unlimited
  • Anti-corrosion Duration (months): 60
  • Roadside Assistance Distance (km): 180000
  • Roadside Assistance Duration (months): 36
  • Total Powertrain Distance (km): 180000
  • Total Powertrain Duration (months): 36
  • Total Whole Vehicle Distance (km): 180000
  • Total Whole Vehicle Duration (months): 36
• Weights
  • Front Axle Weight (kg): 1850
  • Front Axle Weight (lb): 4079
  • Gross Trailer Weight Braked (kg): 2000
  • Gross Trailer Weight Unbraked (kg): 750
  • Gross Train Weight (kg): 5510
  • Gross Vehicle Weight (kg): 3510
  • Payload Allowance (kg): 1480
  • Published Kerb Weight (kg): 2020
  • Rear Axle Weight (kg): 2120
• Wheels
  • Front Wheels Covers: Partial
  • Front Wheels Location: Front
  • Front Wheels Rim Diameter Inch: 16
  • Front Wheels Rim Type: Steel
  • Front Wheels Rim Width Inch: 6
  • Front Wheels Tire Location: Front
  • Front Wheels Tire Official Brochure Tire Size
  • Front Wheels Tire Profile: 75
  • Front Wheels Tire Width: 205
  • Rear Wheels Covers: Partial
  • Rear Wheels Location: Rear
  • Rear Wheels Rim Diameter Inch: 16
  • Rear Wheels Rim Type: Steel
  • Rear Wheels Rim Width Inch: 6
  • Rear Wheels Tire Location: Rear
  • Rear Wheels Tire Official Brochure Tire Size
  • Rear Wheels Tire Profile: 75
  • Rear Wheels Tire Width: 205
