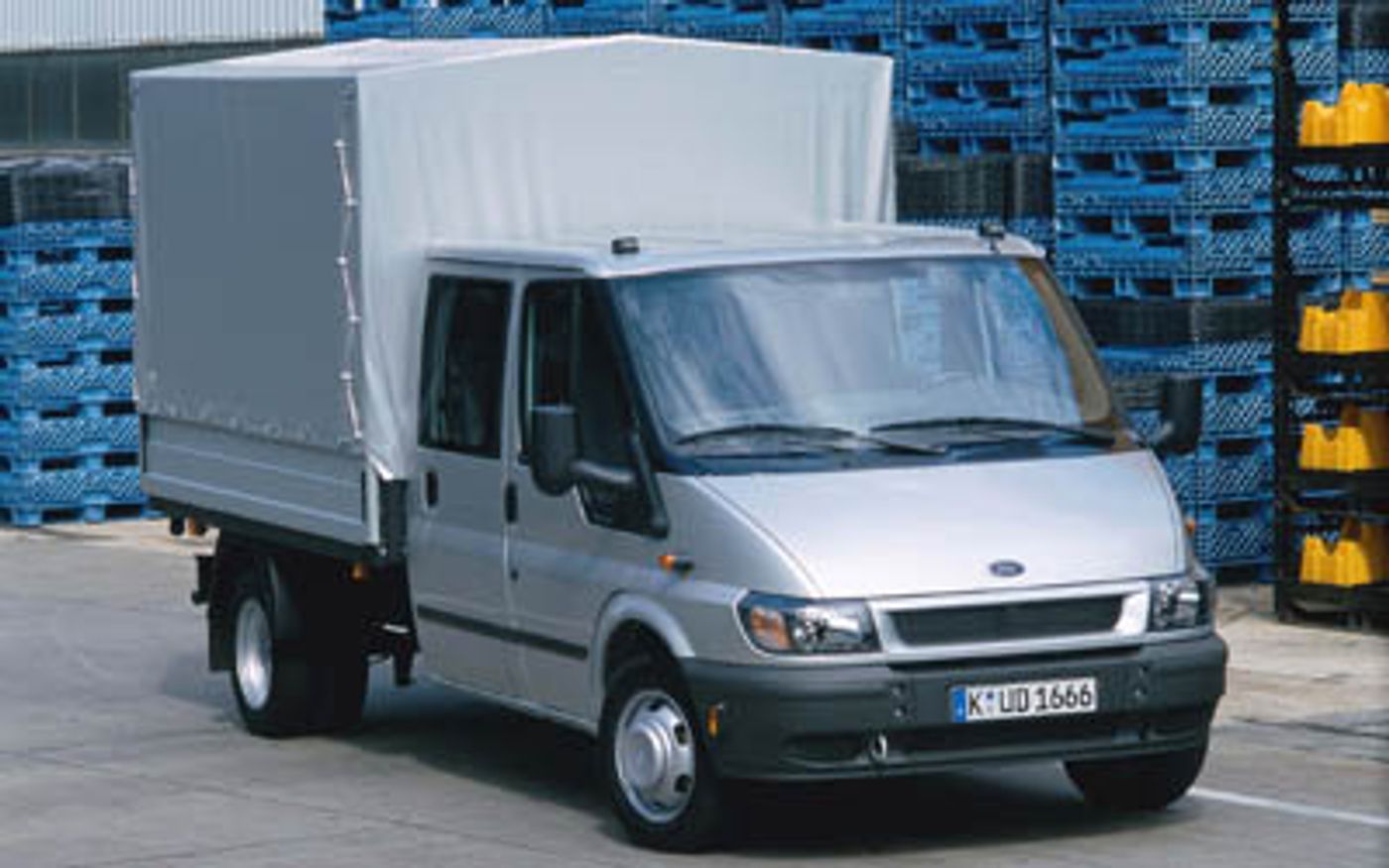

Ford Transit Base (2001) price & specs
Save $$$ with CarExpert*
From
$40,750â€
Base
Overview
The 2001 Ford Transit Base is a rear-wheel drive, 4-door Cab Chassis that was released to the Australian market on 4th January 1970 classified as a VH. The Ford Transit is regarded as a Van Over 3.5t built in Great Britain with prices starting at $40,750 before on-road costs.
This Ford Transit is powered by a 2.4L 4-cylinder engine that has 66 kW of power (at 4000 rpm) and 200 Nm of torque (at 1700 rpm) via a Five-speed Manual transmission. It has a 80L fuel tank
The Ford Transit measures 2037mm (80.2 inches) in height, 5902mm (232.4 inches) in length, 1974mm (77.7 inches) in width with a 3954mm (155.7 inches) wheelbase that brings about a total of 1738kg (3831.6 lbs) of unladen weight. The Transit Base comes standard with 175/75 R16 front tyres and 175/75 R16 rear tyres. It has a 36 month, 100,000 km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Transit compare?
Quickly see how the 2001 Ford Transit Base stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
33.07 - 71.81 kW/t
29.34 kW/t
71.81 kW/t
Price
$28,400 - $47,780
$28,400
$51,985
Warranty (Years)
3 years
3 years
Warranty (Distance)
100,000 km
100,000 km
Years on Sale
6 - 7 years
1 year
5 years
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,902 mm
1,974 mm
2,037 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,902 mm |
| Overall Width | 1,974 mm |
| Overall Height | 2,037 mm |
| Wheelbase | 3,954 mm |
| Turning Circle | 13,900 mm |
| Load Capacity | 1,762 mm |
Looking for complete Ford Transit size & space specs?
Our Ford Transit Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Ford Transit Features & Specs
Compressor
Compressor: Turbo
Engine
Bore Engine: 89.9
Engine (cc): 2402
Compression Ratio: 19
Engine Configuration: In-Line
Engine (L): 2.4
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 94.6
Valve Gear Type: Overhead Cam
Fuel
Generic Primary Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Direct Injection
Fuel Tanks
Main Capacity Gal: 21.1
Main Capacity (L): 80
Main Fuel Type: Diesel
Main Type: Total
Power
Maximum Power (hp/PS): 90
Maximum Power (kW): 66
Maximum Torque (Nm): 200
Measurement Standard: SAE
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 1700
Drive
Driven Wheels: Rear
Electronic Traction Control
Controlled By: Abs & Engine Management
Transmission
Automatic Clutch Manual: yes
Automatic Mode: yes
Code: Smartshift
Manual Sequential: yes
Number of Speeds: 5
Type: Manual
ABS
Location: 4-Wheel
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Location: Front
Front Wheels Tire Profile: 75
Front Wheels Tire Width: 175
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 75
Rear Wheels Tire Width: 175
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Steel
Front Wheels Rim Width (In): 5
Rear Axle Location: 1
Rear Axle Dual Wheel: yes
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Steel
Rear Wheels Rim Width (In): 5
Body Style
Body Type: Cab Chassis
Cab Type: Single Cab
Driver Location: RHD
Local Body Type: Cab Chassis
Roof Type: Standard
Wheelbase Type: Long
Mud Flaps
Front Mud Flaps Location: Front
Bumpers
Front Bumper Colour: Black
Location: Front
Front Bumper Material: Plastic
Rear Bumper Colour: Black
Location: Rear
Rear Bumper Material: Metal
External Dimensions
Kerb to Kerb Turning Circle (mm): 13900
Front Overhang (in): 35.6
Front Overhang (mm): 904
Front Track (in): 66.9
Front Track (mm): 1700
Kerb To Kerb Turning Circle (ft): 45.6
Overall Height (in): 80.2
Overall Height (mm): 2037
Overall Length (in): 232.4
Overall Length (mm): 5902
Overall Width (in): 77.7
Overall Width (mm): 1974
Rear Overhang (in): 41.1
Rear Overhang (mm): 1044
Rear Track (in): 64.8
Rear Track (mm): 1645
Wheelbase (in): 155.7
Wheelbase (mm): 3954
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Internal Height Adjustment: yes
Headlights
Low Beam Bulb Type: Halogen
Lens Type: Complex Surface
Paint
Type: Gloss
Door Mirrors/Cameras
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Externally Adjustable
Wide Angle Driver Door Mirrors/Cameras: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Externally Adjustable
Wide Angle Passenger Door Mirrors/Cameras: yes
Power Windows
Front Electric Windows: Front
Rear Side Windows
Location: Driver
Driver Type: Fixed
Location: Passenger
Passenger Type: Fixed
Windshield Wipers
Intermittent Wipe Windshield Wipers: Fixed
Weights
Front Axle Weight (kg): 1461
Front Axle Weight (lb): 3221
Gross Trailer Weight Braked (kg): 2500
Gross Trailer Weight Braked (lb): 5512
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Vehicle Weight (kg): 3500
Gross Vehicle Weight (lb): 7716
Payload Allowance (kg): 1762
Payload Allowance (lb): 3885
Published Kerb Weight (kg): 1738
Published Kerb Weight (lb): 3832
Rear Axle Weight (kg): 2039
Rear Axle Weight (lb): 4495
Audio Anti-Theft Protection
Type: Detachable Panel
Type: Code
Audio System
In-Dash CD: yes
Radio Type: Am/Fm
Speakers
Number of Speakers: 2
Cigar Lighter
Location: Front Seats
Floor Covering
Vehicle Cab Compartment: Plastic/Rubber
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Center Operation: Reel
Center Seat Position: Center
Center Type: 3-Point
Driver Height Adjustable: yes
Driver Operation: Reel
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Head Restraints
Front Seats Height Adjustable: yes
Front Seats Location: Front Seats
Front Seats Number: 3
Rear Seat Belts
Center Operation: Reel
Center Seat Position: Centre
Center Type: 3-Point
Driver Operation: Reel
Driver Seat Position: Driver
Driver Type: 3-Point
Passenger Operation: Reel
Passenger Seat Position: Passenger
Passenger Type: 3-Point
Front Seat
Location: Centre
Center Front Seat Type: Bench
Driver Front Seat Height Adjustment: yes
Location: Driver
Driver Front Seat Lumbar Adjustment: yes
Driver Front Seat Type: Bucket
Passenger Front Seat Fore/Aft Adjustment: yes
Location: Passenger
Passenger Front Seat Reclining: yes
Passenger Front Seat Type: Bench
Seat Upholstery
Main Seat Material: Cloth
Seating
Capacity: 6
Configuration: 3+3
Cup Holders
Location: Front Seats
Front Seats Type: Pop Out
Door Pockets Bins
Location: Driver
Location: Passenger
Glove Compartment
Lid: yes
Power Locks
Includes Trunk Hatch: yes
Operation: key
