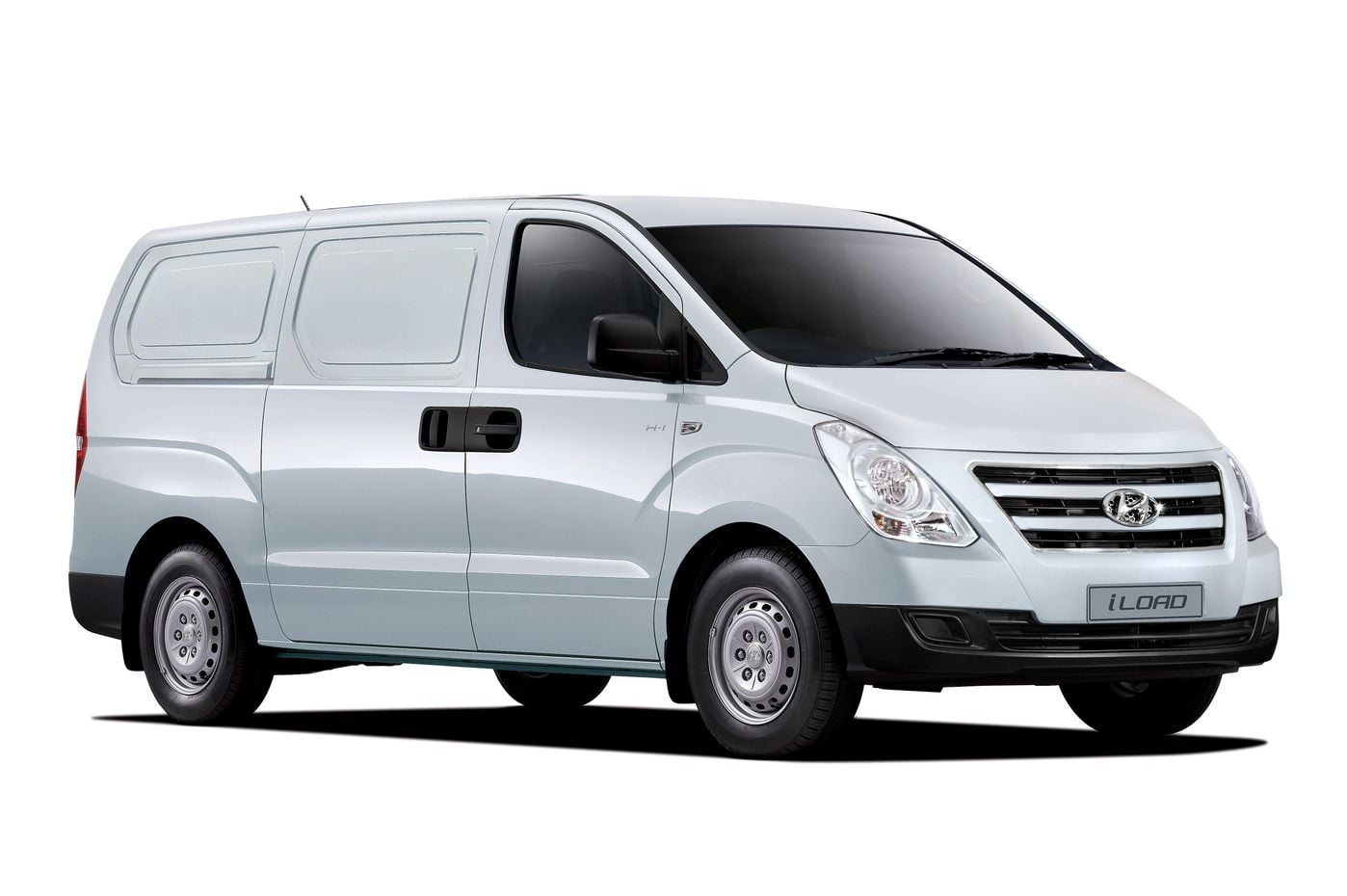

Hyundai iLoad

New from

$39,680 excl. on-roads

Review Rating

Not Available

Safety Rating

Warranty

5 year, 160,000 km

Fuel Efficiency

7.6 - 8.8 L / 100km

About the Hyundai iLoad

Last updated Sep 27, 2025

The new Hyundai iLoad is a Van Under 3.5t offered in both None Panel Van and Double Combi body styles. Available in Australia from $39,680 (MLRP, excl. on-roads) for the Base variant and topping out at $44,730 for the Base.

There is 1 variant of the iLoad available in Australia and this generation went on sale in January of 2021.

The Hyundai iLoad is only available with an diesel motor that produces 100kW and 343Nm of torque. All variants feature rear-wheel drive.

The new 2021 iLoad is offered with a 5 year, 160,000 km warranty.

See Hyundai iLoad models from other years

2021 2020 2019 2018 2017 2016 2015 2014 2013 2012 2011 2010 2009 2008

Comparative Rating

Quickly see how this car stacks up against its competition. Select any benchmark to see more details.

Power to Weight

47.19 - 60.62 kW/t

27.76 kW/t

81.55 kW/t

Fuel Efficiency

7.6 - 8.8 L/100km

4.9 L/100km

11.1 L/100km

Vehicle Range

852 - 987 km

649 km

1,290 km

Price

$39,680 - $44,730

$25,990

$70,606

Warranty (Years)

5 years

3 years

10 years

Warranty (Distance)

160,000 km

100,000 km

Unlimited

Service Interval

12 months

6 months

24 months

Towing & Off-Road Capability

Gross Vehicle Weight

3,160 - 3,230 kg

1,810 kg

3,500 kg

Gross Comb. Mass

4,660 - 5,230 kg

2,295 kg

5,550 kg

Braked Towing Capacity

1,500 - 2,000 kg

322 kg

2,800 kg

Ground Clearance Unladen

190 mm

134 mm

212 mm

Payload Capacity

1,096 - 1,113 kg

540 kg

1,387 kg

Hyundai iLoad News

William Stopford

Every car discontinued in 2021

In 2021, we lost two brands and 18 nameplates in the Australian market, and there were a handful of other discontinuations worth noting.

4 Years Ago

2022 Hyundai Staria Load price and specs - UPDATE

William Stopford

2022 Hyundai Staria Load price and specs - UPDATE

The Hyundai Staria Load is more car-like than its predecessor but packs a larger cargo hold. It’s on sale in September.

4 Years Ago

Scott Collie

2021 Hyundai Staria initial details

Hello from the future. Hyundai's new Staria van will touch down in Australia before the end of 2021 with up to nine seats.

4 Years Ago

View all Hyundai iLoad news

2021 Hyundai iLoad Price

Configuration	Price From*
2.5L, 6-speed manual, 5-door Combi, Diesel, RWD	$39,680
2.5L, 5-speed auto, 5-door Combi, Diesel, RWD	$42,710
2.5L, 6-speed manual, 5-door Combi, Diesel, RWD	$41,700
2.5L, 5-speed auto, 5-door Combi, Diesel, RWD	$44,730

*excl. on-roads

All Hyundai iLoad Pricing

Year	Price From*	Price To*
2021	$39,680	$44,730
2020	$38,790	$44,730
2019	$38,790	$43,790
2018	$38,790	$43,790
2017	$32,790	$43,790

*excl. on-roads

See all Hyundai iLoad Pricing

2021 Hyundai iLoad Specs

See our comprehensive details for the Hyundai iLoad

Base

Audio
- Connection External Usb Front
- Number Of Speakers: 2
- Remote Control Type: Steering Wheel Mounted
- System Colour Screen
- System Radio Type: Am/fm
- System Touch Screen
- Total Number Of Front Usb Connections: 1
Body exterior
- Body Length: Regular
- Body Type: Panel Van
- Front Mud Flaps Location: Front
- Local Body Type: Panel Van
- Local Number Of Doors: 5
- Number Of Doors: 5
- Platform Code: Ck
- Rear Mud Flaps Location: Rear
- Roof Type: Standard
- Wheelbase Type: Short
Brakes
- Number Of Disc Brakes: 4
- Number Of Ventilated Disc Brakes: 2
Bumpers
- Front Colour: Painted
- Front Location: Front
- Rear Colour: Black
- Rear Location: Rear
Calculated
- Power-to-weight Ratio (kw/t): 48.85
Convenience
- Bluetooth Includes Music Streaming
- Bluetooth Includes Phone Connection
- Front Usb Charging Port Location: Front
- Mobile Integration Android Auto
- Mobile Integration Android Number Of Months Subscription: Unlimited
- Mobile Integration Apple Carplay
- Mobile Integration Apple Number Of Months Subscription Inc: Unlimited
- Number Of Front Usb Charging Port: 1
- Parking Distance System Rear Location: Rear
- Parking Distance System Rear Type: Camera
- Power Outlet Front Location (12v): Front
Dimensions
- Cargo Area Cargo Volume (l): 4426
- Cargo Area Cargo Volume (cu Ft): 156.3
- Cargo Area Height (in): 52.8
- Cargo Area Height (mm): 1620
- Cargo Area Length (in): 93.5
- Cargo Area Length (mm): 2375
- Cargo Area Loading Floor Height (in): 23.8
- Cargo Area Loading Floor Height (mm): 605
- Cargo Area Standard Measurement: Manufacturer's Own
- Cargo Area Width (in): 63.8
- Cargo Area Width (mm): 1620
- Cargo Area Width Between Wheelhouses (in): 50.1
- Cargo Area Width Between Wheelhouses (mm): 1272
- Front Track (mm): 1685
- Ground Clearance Unladen (mm): 190
- Kerb To Kerb Turning Circle (mm): 11220
- Overall Height (mm): 1935
- Overall Length (mm): 5150
- Overall Width (mm): 1920
- Rear Track (mm): 1660
- Wheelbase (mm): 3200
Doors
- Cargo Doors Driver Height (mm): 1580
- Cargo Doors Driver Height In: 62.2
- Cargo Doors Driver Location: Driver
- Cargo Doors Driver Operation: Sliding
- Cargo Doors Driver Width (mm): 1225
- Cargo Doors Driver Width In: 48.2
- Cargo Doors Passenger Height (mm): 1580
- Cargo Doors Passenger Height In: 62.2
- Cargo Doors Passenger Location: Passenger
- Cargo Doors Passenger Operation: Sliding
- Cargo Doors Passenger Width (mm): 1225
- Cargo Doors Passenger Width In: 48.2
- Cargo Doors Rear Height (mm): 1390
- Cargo Doors Rear Height In: 54.7
- Cargo Doors Rear Location: Rear
- Cargo Doors Rear Opening Angle: 90
- Cargo Doors Rear Operation: Lifting Gate
- Cargo Doors Rear Width (mm): 1540
- Cargo Doors Rear Width In: 60.6
- Driver Door Location: Driver
- Driver Door Type: Front Hinged
- Passenger Door Location: Passenger
- Passenger Door Type: Front Hinged
- Rear Door Type: Double Hinged
Engine
- Bore Engine: 91.0
- Co2 Level (combined): 199
- Co2 Level (country Highway): 173
- Co2 Level (urban): 244
- Compressor: Turbo
- Electrical System Voltage: 12
- Emission Control Level Standard Met: Eu5
- Engine (l): 2.5
- Engine (cc): 2497
- Engine Code: Vgt
- Engine Configuration: In-line
- Number Of Compressors: 1
- Number Of Cylinders: 4
- Number Of Vavles Per Cylinder: 4
- Stroke Engine: 96.0
Fuel
- Fuel System Injection Carburetion: Diesel Common Rail
- Fuel Tank Main Capacity (l): 75
- Fuel Tanks Main Type: Total
- Fuel Type: Diesel
- Generic Primary Fuel Type: Diesel
- Minimum Fuel Type: Diesel
Instrumentation
- Dashboard Centre 1 Display Screen Location: Dashboard Centre 1
- Dashboard Centre 1 Touch Screen Display
- Display Screen Dashboard Centre1 Screen Size (in): 7.00
Interior trim
- Luxury Trim On Gear Selector: Alloy Look
- Upholstery Color: Gray
Lights
- Headlight Control Dusk Sensor
- Headlights Bulb Type High Beam: Halogen
- Headlights Bulb Type Low Beam: Halogen
- Headlights Lens Type: Ellipsoidal
Locks
- Power Locks Operation: Remote
Paint
- External Color: White
- Type: Gloss
Performance
- Fuel Consumption Adr 81/02 Calculated Vehicle Range (km): 987
- Fuel Consumption Adr 81/02 Combined (l/100km): 7.6
- Fuel Consumption Adr 81/02 Combined (km/l): 13.2
- Fuel Consumption Adr 81/02 Country Highway (l/100km): 6.5
- Fuel Consumption Adr 81/02 Country Highway (km/l): 15.4
- Fuel Consumption Adr 81/02 Standard: Adr 81/02
- Fuel Consumption Adr 81/02 Urban (l/100km): 9.3
- Fuel Consumption Adr 81/02 Urban (km/l): 10.8
- Fuel Economy Adr 81/02 (l/100km): 7.6
- Power Maximum Power (hp/ps): 136
- Power Maximum Power (kw): 100
- Power Maximum Torque (nm): 343
- Power Measurement Standard: Eec
- Power Primary Or Secondary Fuel Power Figure: Primary
- Power Rpm For Maximum Power Low: 3800
- Power Rpm For Maximum Torque Low: 1500
Safety
- Crash Test Results Ancap Date Tested: 20110101
- Crash Test Results Ancap Overall: 4.0
- Crash Test Results Ancap Pedestrian: Poor
- Crash Test Results Ancap Rating Year: 2011
- Crash Test Results Ancap Standard: Ancap
- Crash Test Results Ancap Version Tested: 2.4 Manual Van
- Front Airbag Driver Location: Driver
- Front Airbag Passenger Location: Passenger
- Front Seat Belts Center Seat Position: Center
- Front Seat Belts Driver Height Adjustable
- Front Seat Belts Driver Pre Tensioners
- Front Seat Belts Driver Seat Position: Driver
- Front Seat Belts Passenger Height Adjustable
- Front Seat Belts Passenger Pre Tensioners
- Front Seat Belts Passenger Seat Position: Passenger
- Head Restraints Front Seats Location: Front Seats
- Number Of Airbags: 4
- Side Airbag Front Location: Front
Seats
- Center Front Seat Location: Centre
- Center Front Seat Type: Bench
- Driver Front Seat Height Type: Manual
- Driver Front Seat Location: Driver
- Driver Front Seat Reach Type: Manual
- Driver Front Seat Reclining Type: Manual
- Driver Front Seat Type: Bucket
- Passenger Front Seat Location: Passenger
- Passenger Front Seat Reach Type: Manual
- Passenger Front Seat Type: Bench
- Seat Upholstery Additional Seat Material: Cloth
- Seat Upholstery Main Seat Material: Cloth
- Seating Capacity: 3
- Seating Configuration: 3+0
Service
- Intermediate Service Distance (km): 15000
- Intermediate Service Period (months): 12
Steering
- Steering Wheel Height Adjustment
- Steering Wheel Telescopic Adjustment
- Steering Wheel Type: Plastic
Storage
- Cup Holders Front Seats Location: Front Seats
Suspension
- Suspension Front Location: Front
- Suspension Front Spring Type: Coil
- Suspension Front Stabilizer Bar
- Suspension Front Type: Strut
- Suspension Front Wheel Dependence: Independent
- Suspension Rear Location: Rear
- Suspension Rear Spring Type: Leaf
- Suspension Rear Type: Beam
- Suspension Rear Wheel Dependence: Rigid
Transmission
- Axle Ratio: 3.615
- Drive Driven Wheels: Rear
- Transmission Description: Manual
- Transmission Number Of Speeds: 6
- Transmission Shift Lever Location: Dash
- Transmission Type: Manual
Ventilation
- Air Conditioning Type: Manual
Visibility
- Driver Door Mirrors/cameras Colour: Black
- Driver Door Mirrors/cameras Location: Driver
- Driver Door Mirrors/cameras Type: Electrically Adjustable
- Front Electric Windows: Front
- Intermittent Wipe Windshield Wipers: Variable
- Passenger Door Mirrors/cameras Colour: Black
- Passenger Door Mirrors/cameras Location: Passenger
- Passenger Door Mirrors/cameras Type: Electrically Adjustable
- Rear View Window Wipers: Constant
Warranty
- Anti-corrosion Distance (km): 100000
- Anti-corrosion Duration (months): 36
- Oem Powertrain Distance (km): 160000
- Oem Powertrain Duration (months): 60
- Roadside Assistance Distance (km): Unlimited
- Roadside Assistance Duration (months): 12
- Total Powertrain Distance (km): 160000
- Total Powertrain Duration (months): 60
- Total Whole Vehicle Distance (km): 160000
- Total Whole Vehicle Duration (months): 60
- Whole Vehicle Oem Distance (km): 160000
- Whole Vehicle Oem Duration (months): 60
Weights
- Gross Trailer Weight Braked (kg): 2000
- Gross Trailer Weight Unbraked (kg): 750
- Gross Train Weight (kg): 5160
- Gross Vehicle Weight (kg): 3160
- Payload Allowance (kg): 1113
- Published Kerb Weight (kg): 2047
- Tare Weight (kg): 1992
Wheels
- Front Wheels Location: Front
- Front Wheels Rim Diameter Inch: 16
- Front Wheels Rim Type: Steel
- Front Wheels Rim Width Inch: 6.5
- Front Wheels Tire Load Index: 108
- Front Wheels Tire Location: Front
- Front Wheels Tire Profile: 70
- Front Wheels Tire Speed Rating: T
- Front Wheels Tire Type: Conventional/summer
- Front Wheels Tire Width: 215
- Rear Wheels Axle 1 Location: 1
- Rear Wheels Location: Rear
- Rear Wheels Rim Diameter Inch: 16
- Rear Wheels Rim Type: Steel
- Rear Wheels Rim Width Inch: 6.5
- Rear Wheels Tire Load Index: 108
- Rear Wheels Tire Location: Rear
- Rear Wheels Tire Profile: 70
- Rear Wheels Tire Speed Rating: T
- Rear Wheels Tire Type: Conventional/summer
- Rear Wheels Tire Width: 215

See all 2021 Hyundai iLoad Specs

2021 Hyundai iLoad Dimensions

1935mm

1920mm

5150mm

The dimensions shown above are for the base model.

See all 2021 Hyundai iLoad Dimensions

2021 Hyundai iLoad Towing Capacity

Year	Braked Capacity from	Braked Capacity to
2021	1500Kg	2000Kg
2020	1500Kg	2000Kg
2019	1500Kg	2000Kg
2018	1500Kg	2000Kg
2017	1500Kg	2000Kg

See all Hyundai iLoad Towing Capacity

2021 Hyundai iLoad Gallery

CarExpert High Resolution Photos of the Hyundai iLoad

2021 Hyundai iLoad Fuel Economy

There are 2 different fuel economy figures for the Hyundai iLoad

The most fuel efficient Hyundai iLoad is the Base with a 6-speed Manual which is powered by a 2.5L Turbo Diesel Common Rail and uses 7.6L of Diesel per 100km on the combined cycle.

Hyundai iLoad	Fuel Type	Combined
2.5L, 6-speed manual, 5-door Combi, Diesel, RWD	Diesel	7.6 L/100km
2.5L, 5-speed auto, 5-door Combi, Diesel, RWD	Diesel	8.8 L/100km

See all Hyundai iLoad Fuel Economy

Cost of ownership

What are the running and servicing costs of a Hyundai iLoad?

The Hyundai iLoad has a recommended service interval of 12 months or 15,000 km, whichever comes first.

2021 Hyundai iLoad Warranty

What is the warranty on a Hyundai iLoad?

The Hyundai iLoad offers a 5 year 160,000 km limit warranty. This is separate to the warranty on offer under Australian Consumer Law which can be greater for certain parts based on what is deemed as a reasonable period of time.
