    View 1 image

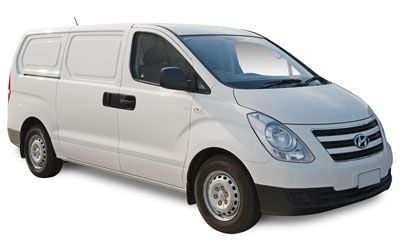

    2016 Hyundai iLoad

    New from

    $31,990 excl. on-roads

    Review Rating

    Not Available

    Safety Rating

    4

    Warranty

    5 year, 160,000 km

    Fuel Efficiency

    8 - 10.1 L / 100km

    About the Hyundai iLoad

    Last updated Sep 27, 2025

    The new Hyundai iLoad is a Van Under 3.5t offered in both None Panel Van and Double Combi body styles. Available in Australia from $31,990 (MLRP, excl. on-roads) for the Base variant and topping out at $43,790 for the Base.

    There is 1 variant of the iLoad available in Australia.

    Engine options include 2.5L turbo diesel common rail (125kW/441Nm) and 2.4L multi-point injection (127kW/224Nm). Available with 5-speed automatic, 6-speed manual or 5-speed manual transmissions. All variants feature rear-wheel drive.

    The new 2016 iLoad is offered with a 5 year, 160,000 km warranty.

    See Hyundai iLoad models from other years

    20212020201920182017201620152014201320122011201020092008

    Comparative Rating

    Quickly see how this car stacks up against its competition. Select any benchmark to see more details.

    Power to Weight
    47.19 - 65.33 kW/t
    39.64 kW/t
    76.79 kW/t
    Fuel Efficiency
    8 - 10.1 L/100km
    4.7 L/100km
    10.5 L/100km
    Vehicle Range
    743 - 938 km
    667 km
    1,319 km
    Price
    $31,990 - $43,790
    $21,990
    $58,670
    Warranty (Years)
    5 years
    3 years
    5 years
    Warranty (Distance)
    160,000 km
    100,000 km
    Unlimited
    Service Interval
    12 months
    6 months
    12 months

    Towing & Off-Road Capability

    Gross Vehicle Weight
    2,950 - 3,230 kg
    1,917 kg
    3,500 kg
    Gross Comb. Mass
    4,450 - 5,160 kg
    2,967 kg
    5,325 kg
    Braked Towing Capacity
    1,500 - 2,000 kg
    1,050 kg
    2,800 kg
    Ground Clearance Unladen
    190 mm
    155 mm
    234 mm
    Payload Capacity
    1,006 - 1,113 kg
    608 kg
    1,700 kg

    All Hyundai iLoad Pricing

    YearPrice From*Price To*
    2021$39,680$44,730
    2020$38,790$44,730
    2019$38,790$43,790
    2018$38,790$43,790
    2017$32,790$43,790
    *excl. on-roads
    See all Hyundai iLoad Pricing

    2016 Hyundai iLoad Specs

    See our comprehensive details for the Hyundai iLoad

    Base

    • Audio
      • Connection External Aux Jack Front
      • Connection External Usb Front
      • Connection External Ipod Front
      • Number Of Speakers: 2
      • Remote Control Type: Steering Wheel Mounted
      • System Colour Screen
      • System Radio Type: Am/fm
      • System Touch Screen
    • Body exterior
      • Body Length: Regular
      • Body Type: Panel Van
      • Front Mud Flaps Location: Front
      • Local Body Type: Panel Van
      • Local Number Of Doors: 5
      • Number Of Doors: 5
      • Platform Code: Ck
      • Rear Mud Flaps Location: Rear
      • Roof Type: Standard
      • Wheelbase Type: Short
    • Brakes
      • Number Of Disc Brakes: 4
      • Number Of Ventilated Disc Brakes: 2
    • Bumpers
      • Front Colour: Painted
      • Front Location: Front
      • Rear Colour: Black
      • Rear Location: Rear
    • Calculated
      • Power-to-weight Ratio (kw/t): 60.62
    • Convenience
      • Bluetooth Includes Music Streaming
      • Bluetooth Includes Phone Connection
      • Parking Distance System Rear Location: Rear
      • Parking Distance System Rear Type: Camera
      • Power Outlet Front Location (12v): Front
    • Dimensions
      • Cargo Area Cargo Volume (l): 4426
      • Cargo Area Cargo Volume (cu Ft): 156.3
      • Cargo Area Height (in): 52.8
      • Cargo Area Height (mm): 1620
      • Cargo Area Length (in): 93.5
      • Cargo Area Length (mm): 2375
      • Cargo Area Loading Floor Height (in): 23.8
      • Cargo Area Loading Floor Height (mm): 605
      • Cargo Area Standard Measurement: Manufacturer's Own
      • Cargo Area Width (in): 63.8
      • Cargo Area Width (mm): 1620
      • Cargo Area Width Between Wheelhouses (in): 49.6
      • Cargo Area Width Between Wheelhouses (mm): 1260
      • Front Track (mm): 1685
      • Ground Clearance Unladen (mm): 190
      • Kerb To Kerb Turning Circle (mm): 11220
      • Overall Height (mm): 1935
      • Overall Length (mm): 5150
      • Overall Width (mm): 1920
      • Rear Track (mm): 1660
      • Wheelbase (mm): 3200
    • Doors
      • Cargo Doors Driver Height (mm): 1580
      • Cargo Doors Driver Height In: 62.2
      • Cargo Doors Driver Location: Driver
      • Cargo Doors Driver Operation: Sliding
      • Cargo Doors Driver Width (mm): 1225
      • Cargo Doors Driver Width In: 48.2
      • Cargo Doors Passenger Height (mm): 1580
      • Cargo Doors Passenger Height In: 62.2
      • Cargo Doors Passenger Location: Passenger
      • Cargo Doors Passenger Operation: Sliding
      • Cargo Doors Passenger Width (mm): 1225
      • Cargo Doors Passenger Width In: 48.2
      • Cargo Doors Rear Height (mm): 1390
      • Cargo Doors Rear Height In: 54.7
      • Cargo Doors Rear Location: Rear
      • Cargo Doors Rear Opening Angle: 90
      • Cargo Doors Rear Operation: Lifting Gate
      • Cargo Doors Rear Width (mm): 1540
      • Cargo Doors Rear Width In: 60.6
      • Driver Door Location: Driver
      • Driver Door Type: Front Hinged
      • Passenger Door Location: Passenger
      • Passenger Door Type: Front Hinged
      • Rear Door Type: Double Hinged
    • Engine
      • Australia Air Pollution Rating: 3.0
      • Australia Greenhouse Rating: 5.5
      • Australia Overall Emission Control Level Rating: 2.5
      • Bore Engine: 91.0
      • Co2 Level (combined): 232
      • Compressor: Turbo
      • Emission Control Level Standard Met: Eu4
      • Engine (l): 2.5
      • Engine (cc): 2497
      • Engine Code: Vgt
      • Engine Configuration: In-line
      • Number Of Cylinders: 4
      • Number Of Vavles Per Cylinder: 4
      • Stroke Engine: 96.0
    • Fuel
      • Fuel System Injection Carburetion: Diesel Common Rail
      • Fuel Tank Main Capacity (l): 75
      • Fuel Tanks Main Type: Total
      • Fuel Type: Diesel
      • Generic Primary Fuel Type: Diesel
      • Minimum Fuel Type: Diesel
    • Instrumentation
      • Display Screen Location: ?
      • Display Screen Size (in): 7.0
      • Number Of Display Screens: 1
      • Touch Screen Display
    • Interior trim
      • Luxury Trim On Gear Selector: Alloy Look
      • Upholstery Color: Gray
    • Lights
      • Headlights Bulb Type High Beam: Halogen
      • Headlights Bulb Type Low Beam: Halogen
      • Headlights Lens Type: Complex Surface
    • Locks
      • Power Locks Operation: Remote
    • Paint
      • External Color: White
      • Type: Gloss
    • Performance
      • Fuel Consumption Adr 81/02 Calculated Vehicle Range (km): 852
      • Fuel Consumption Adr 81/02 Combined (l/100km): 8.8
      • Fuel Consumption Adr 81/02 Combined (km/l): 11.4
      • Fuel Consumption Adr 81/02 Country Highway (l/100km): 7.4
      • Fuel Consumption Adr 81/02 Country Highway (km/l): 13.5
      • Fuel Consumption Adr 81/02 Standard: Adr 81/02
      • Fuel Consumption Adr 81/02 Urban (l/100km): 11.2
      • Fuel Consumption Adr 81/02 Urban (km/l): 8.9
      • Fuel Economy Adr 81/02 (l/100km): 8.8
      • Power Maximum Power (hp/ps): 170
      • Power Maximum Power (kw): 125
      • Power Maximum Torque (nm): 441
      • Power Measurement Standard: Eec
      • Power Primary Or Secondary Fuel Power Figure: Primary
      • Power Rpm For Maximum Power Low: 3600
      • Power Rpm For Maximum Torque Low: 2000
    • Safety
      • Crash Test Results Ancap Date Tested: 20090721
      • Crash Test Results Ancap Overall: 4.00
      • Crash Test Results Ancap Pedestrian: Poor
      • Crash Test Results Ancap Standard: Ancap
      • Crash Test Results Ancap Version Tested: 2.4 Manual Van
      • Front Airbag Driver Location: Driver
      • Front Airbag Passenger Location: Passenger
      • Front Seat Belts Center Seat Position: Center
      • Front Seat Belts Driver Height Adjustable
      • Front Seat Belts Driver Pre Tensioners
      • Front Seat Belts Driver Seat Position: Driver
      • Front Seat Belts Passenger Height Adjustable
      • Front Seat Belts Passenger Pre Tensioners
      • Front Seat Belts Passenger Seat Position: Passenger
      • Head Restraints Front Seats Location: Front Seats
      • Number Of Airbags: 4
      • Side Airbag Front Location: Front
    • Seats
      • Center Front Seat Location: Centre
      • Center Front Seat Type: Bench
      • Driver Front Seat Height Type: Manual
      • Driver Front Seat Location: Driver
      • Driver Front Seat Reach Type: Manual
      • Driver Front Seat Type: Bucket
      • Passenger Front Seat Location: Passenger
      • Passenger Front Seat Reach Type: Manual
      • Passenger Front Seat Type: Bench
      • Seat Upholstery Additional Seat Material: Cloth
      • Seat Upholstery Main Seat Material: Cloth
      • Seating Capacity: 3
      • Seating Configuration: 3+0
    • Service
      • Intermediate Service Distance (km): 15000
      • Intermediate Service Period (months): 12
    • Steering
      • Power Steering Type: Hydraulic
      • Steering Wheel Height Adjustment
      • Steering Wheel Type: Plastic
    • Storage
      • Cup Holders Front Seats Location: Front Seats
    • Suspension
      • Suspension Front Location: Front
      • Suspension Front Spring Type: Coil
      • Suspension Front Stabilizer Bar
      • Suspension Front Type: Strut
      • Suspension Front Wheel Dependence: Independent
      • Suspension Rear Location: Rear
      • Suspension Rear Spring Type: Leaf
      • Suspension Rear Type: Beam
      • Suspension Rear Wheel Dependence: Rigid
    • Transmission
      • Axle Ratio: 2.929
      • Drive Driven Wheels: Rear
      • Transmission Description: Automatic With Manual Mode
      • Transmission Manual Mode
      • Transmission Number Of Speeds: 5
      • Transmission Type: Automatic
    • Ventilation
      • Air Conditioning Type: Manual
    • Visibility
      • Driver Door Mirrors/cameras Colour: Black
      • Driver Door Mirrors/cameras Location: Driver
      • Driver Door Mirrors/cameras Type: Electrically Adjustable
      • Front Electric Windows: Front
      • Intermittent Wipe Windshield Wipers: Variable
      • Passenger Door Mirrors/cameras Colour: Black
      • Passenger Door Mirrors/cameras Location: Passenger
      • Passenger Door Mirrors/cameras Type: Electrically Adjustable
      • Rear View Window Wipers: Constant
    • Warranty
      • Anti-corrosion Distance (km): 130000
      • Anti-corrosion Duration (months): 60
      • Oem Powertrain Distance (km): 160000
      • Oem Powertrain Duration (months): 60
      • Roadside Assistance Distance (km): Unlimited
      • Roadside Assistance Duration (months): 12
      • Total Powertrain Distance (km): 160000
      • Total Powertrain Duration (months): 60
      • Total Whole Vehicle Distance (km): 160000
      • Total Whole Vehicle Duration (months): 60
      • Whole Vehicle Oem Distance (km): 160000
      • Whole Vehicle Oem Duration (months): 60
    • Weights
      • Gross Trailer Weight Braked (kg): 1500
      • Gross Trailer Weight Unbraked (kg): 750
      • Gross Train Weight (kg): 4730
      • Gross Vehicle Weight (kg): 3160
      • Payload Allowance (kg): 1098
      • Published Kerb Weight (kg): 2062
      • Tare Weight (kg): 2007
    • Wheels
      • Front Wheels Location: Front
      • Front Wheels Rim Diameter Inch: 16
      • Front Wheels Rim Type: Steel
      • Front Wheels Rim Width Inch: 6.5
      • Front Wheels Tire Load Index: 108
      • Front Wheels Tire Location: Front
      • Front Wheels Tire Profile: 70
      • Front Wheels Tire Type: Extra Load
      • Front Wheels Tire Width: 215
      • Rear Wheels Axle 1 Location: 1
      • Rear Wheels Location: Rear
      • Rear Wheels Rim Diameter Inch: 16
      • Rear Wheels Rim Type: Steel
      • Rear Wheels Rim Width Inch: 6.5
      • Rear Wheels Tire Load Index: 108
      • Rear Wheels Tire Location: Rear
      • Rear Wheels Tire Profile: 70
      • Rear Wheels Tire Type: Extra Load
      • Rear Wheels Tire Width: 215
    See all 2016 Hyundai iLoad Specs

    2016 Hyundai iLoad Dimensions

    1935mm
    1920mm
    5150mm

    The dimensions shown above are for the base model.

    See all 2016 Hyundai iLoad Dimensions

    2016 Hyundai iLoad Towing Capacity

    YearBraked Capacity fromBraked Capacity to
    20211500Kg2000Kg
    20201500Kg2000Kg
    20191500Kg2000Kg
    20181500Kg2000Kg
    20171500Kg2000Kg
    See all Hyundai iLoad Towing Capacity

    2016 Hyundai iLoad Fuel Economy

    There are 3 different fuel economy figures for the Hyundai iLoad

    The most fuel efficient Hyundai iLoad is the Base with a 6-speed Manual which is powered by a 2.5L Turbo Diesel Common Rail and uses 8L of Diesel per 100km on the combined cycle.

    The Hyundai iLoad that uses the most amount of fuel is the Base with a 5-speed Manual which is powered by a 2.4L Multi-Point Injection and uses 10.1L of Unleaded per 100km on the combined rural and urban test cycle.

    Hyundai iLoadFuel TypeCombined
    2.5L, 5-speed auto, 5-door Panel Van, Diesel, RWDDiesel8.8 L/100km
    2.5L, 6-speed manual, 5-door Panel Van, Diesel, RWDDiesel8.0 L/100km
    2.4L, 5-speed manual, 5-door Panel Van, Petrol, RWDUnleaded10.1 L/100km
    See all Hyundai iLoad Fuel Economy

    Cost of ownership

    What are the running and servicing costs of a Hyundai iLoad?

    The Hyundai iLoad has a recommended service interval of 12 months or 15,000 km, whichever comes first.

    2016 Hyundai iLoad Warranty

    What is the warranty on a Hyundai iLoad?

    The Hyundai iLoad offers a 5 year 160,000 km limit warranty. This is separate to the warranty on offer under Australian Consumer Law which can be greater for certain parts based on what is deemed as a reasonable period of time.

    Hyundai iLoad FAQs

    The cheapest Hyundai iLoad is the Base that starts from $31,990.

    The most expensive Hyundai iLoad is the Base that starts from $43,790.

    The best towing capacity of a Hyundai iLoad is offered by the Base which can tow 2000 kg

    The largest Hyundai iLoad is the Base which measures 1920mm wide, 5150mm in length and sits 1935mm tall.

    The most powerful Hyundai iLoad is the Base which has 127kW of power from its 2.4L Multi-Point Injection engine.

    The Hyundai iLoad is built in Turkey and shipped to Australia.

    The heaviest Hyundai iLoad is the Base which weighs 3230 kg (kerb weight).

    The Hyundai iLoad may use different fuel/energy types based on the variant which includes Diesel or Unleaded.

    Â
