    Hyundai iLoad Base (2009) price & specs

    Save $$$ with CarExpert*
    From
    $36,490†
    2.5L Diesel5D Combi5 SP MANUALRWD

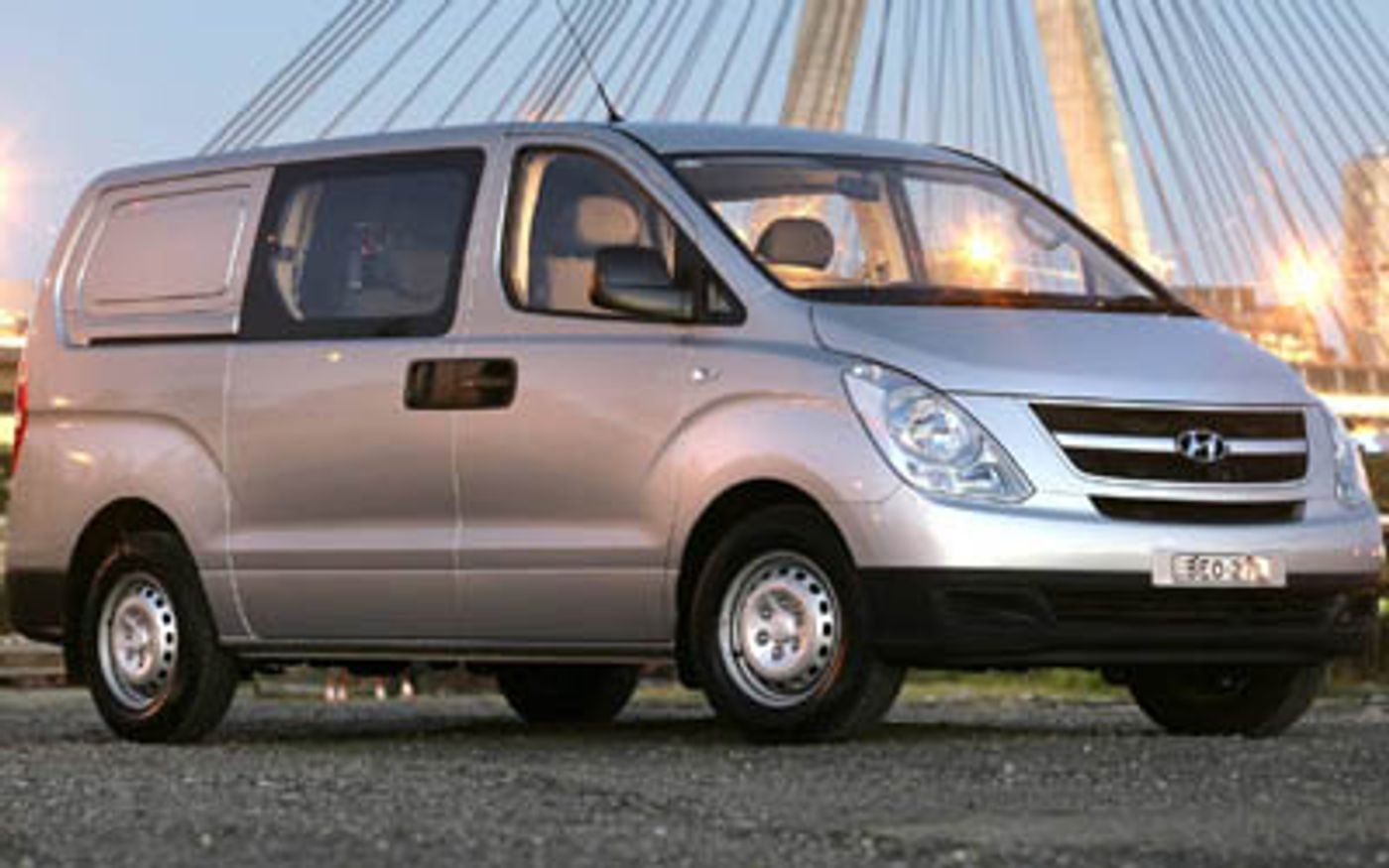

    Hero image of a new Hyundai iLoad Base (2009) price & specs available with CarExpert deals.

    Base

    Find a deal

    Overview

    The 2009 Hyundai iLoad Base is a rear-wheel drive, 5-door Combi that was released to the Australian market on 2nd February 2008. The Hyundai iLoad is regarded as a Van Under 3.5t built in Turkey with prices starting at $36,490 before on-road costs.

    This Hyundai iLoad is powered by a 2.5L 4-cylinder engine that has 125 kW of power (at 3800 rpm) and 392 Nm of torque (at 2000 rpm) via a Five-speed Manual transmission. Hyundai claims the iLoad Base uses 8.5L/100km of Diesel in the combined city and highway cycle while putting out 225g of CO2. It has a 75L fuel tank, meaning it should be able to travel 882km per full tank

    The Hyundai iLoad measures 1935mm (76.2 inches) in height, 5125mm (201.8 inches) in length, 1920mm (75.6 inches) in width with a 3200mm (126.0 inches) wheelbase that brings about a total of 2156kg (4753.2 lbs) of unladen weight. The iLoad Base comes standard with 215/70 R16 front tyres and 215/70 R16 rear tyres. It has a 60 month, 160,000 km warranty.

    The 2009 Hyundai iLoad Base has a 190mm ground clearance with a 2000kg braked and 750kg unbraked towing capacity.

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    How does the iLoad compare?

    Quickly see how the 2009 Hyundai iLoad Base stacks up against its competition.
     Select any benchmark to see more details.

    Power to Weight
    57.58 - 66.39 kW/t
    35.6 kW/t
    78.13 kW/t
    Fuel Efficiency
    8.5 - 10.1 L/100km
    5.8 L/100km
    11 L/100km
    Price
    $29,990 - $38,990
    $21,990
    $58,490
    Warranty (Years)
    5 years
    3 years
    5 years
    Warranty (Distance)
    160,000 km
    100,000 km
    Unlimited

    Towing & Off-Road Capability

    Gross Vehicle Weight
    2,950 - 3,230 kg
    2,130 kg
    3,230 kg
    Gross Comb. Mass
    4,450 - 5,230 kg
    2,935 kg
    5,300 kg
    Braked Towing Capacity
    1,500 - 2,000 kg
    750 kg
    2,000 kg
    Ground Clearance Unladen
    190 mm
    175 mm
    190 mm
    Payload Capacity
    1,055 - 1,132 kg
    715 kg
    1,238 kg

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    Dimensions

    5,125 mm
    1,920 mm
    1,935 mm
    SpecificationMeasurement
    Overall Length5,125 mm
    Overall Width1,920 mm
    Overall Height1,935 mm
    Wheelbase3,200 mm
    Turning Circle11,220 mm
    Load Capacity1,074 mm

    Looking for complete Hyundai iLoad size & space specs?

    Our Hyundai iLoad Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.

    Explore Hyundai iLoad Features & Specs

    Base

    2.5L, 5-speed manual, 5-door Combi, Diesel, RWD

    Save $$$ with CarExpert*
    $36,490†
    Find a deal

    Compressor

    Compressor: Turbo

    Emission Control Level

    Australia Air Pollution Rating: 3.0
    Australia Greenhouse Rating: 5.5
    Australia Overall Emission Control Level Rating: 2.5
    CO2 Level (Combined): 225
    Standard Met: EU4

    Engine

    Bore Engine: 91.0
    Engine (cc): 2497
    Compression Ratio: 17.6
    Engine Configuration: In-Line
    Engine (L): 2.5
    Number of Cylinders: 4
    Number of Valves per Cylinder: 4
    Stroke Engine: 96.0
    Valve Gear Type: Double Overhead Cam

    Fuel

    Generic Primary Fuel Type: Diesel
    Minimum Fuel Type: Diesel
    Fuel Type: Diesel

    Fuel System

    Injection Carburetion: Diesel Common Rail

    Fuel Tanks

    Main Capacity Gal: 19.8
    Main Capacity (L): 75
    Main Capacity Uk Gallons: 16.5
    Main Type: Total

    Interested in buying a Hyundai iLoad Base?

    Save $$$ with CarExpert*
    From
    $36,490†
    Find a deal

    Fuel Consumption

    ADR 81/02 Combined (km/L): 11.8
    ADR 81/02 Combined (L/100km): 8.5
    ADR 81/02 Combined (miles per UK gallon): 33
    ADR 81/02 Combined (mpg): 28
    ADR 81/02 Country Highway (km/L): 14.1
    ADR 81/02 Country Highway (L/100km): 7.1
    ADR 81/02 Country Highway (miles per UK gallon): 40
    ADR 81/02 Country Highway (mpg): 33
    ADR 81/02 Standard: Adr 81/02
    ADR 81/02 Urban (km/L): 9.2
    ADR 81/02 Urban (L/100km): 10.9
    ADR 81/02 Urban (miles per UK gallon): 26
    ADR 81/02 Urban (mpg): 22

    Fuel Economy

    ADR 81/02 (L/100km): 8.5

    Power

    Maximum Power (hp/PS): 170
    Maximum Power (kW): 125
    Maximum Torque (Nm): 392
    Measurement Standard: EEC
    Rpm For Maximum Power Low: 3800
    Rpm For Maximum Torque Low: 2000

    Differential Lock

    Location: Rear

    Drive

    Driven Wheels: Rear

    Electronic Traction Control

    Controlled By: Abs & Engine Management

    Transmission

    Description: Manual
    Number of Speeds: 5
    Type: Manual

    Disc Brakes

    Number of Disc Brakes: 4
    Number of Ventilated Disc Brakes: 4

    Power Steering

    Type: Hydraulic

    Steering Wheel

    Height Adjustment: yes
    Type: Plastic

    Suspension

    Location: Front
    Front Spring Type: Coil
    Front Stabilizer Bar: yes
    Front Type: Strut
    Front Wheel Dependence: Independent
    Location: Rear
    Rear Spring Type: Leaf
    Rear Type: Beam
    Rear Wheel Dependence: Rigid

    Tires

    Front Wheels Tire Extra Load: yes
    Location: Front
    Front Wheels Tire Profile: 70
    Front Wheels Tire Type: Extra Load
    Front Wheels Tire Width: 215
    Rear Wheels Tire Extra Load: yes
    Rear Wheels Tire Location: Rear
    Rear Wheels Tire Profile: 70
    Rear Wheels Tire Type: Extra Load
    Rear Wheels Tire Width: 215

    Wheels

    Location: Front
    Front Wheels Rim Diameter (In): 16
    Front Wheels Rim Type: Steel
    Front Wheels Rim Width (In): 6.5
    Location: Rear
    Rear Rim Diameter (In): 16
    Rear Rim Type: Steel
    Rear Wheels Rim Width (In): 6.5

    Body Style

    Body Type: Combi
    Cab Type: Double Cab
    Driver Location: RHD
    Local Body Type: Combi
    Platform Code: CK
    Roof Type: Standard
    Wheelbase Type: Short

    Mud Flaps

    Front Mud Flaps Location: Front
    Rear Mud Flaps Location: Rear

    Bumpers

    Front Bumper Colour: Painted
    Location: Front
    Rear Bumper Colour: Black
    Location: Rear

    Cargo Area Dimensions

    Cargo Volume (cu ft): 88.3
    Cargo Volume (L): 2500
    Height (in): 53.1
    Height (mm): 1620
    Length (in): 62.4
    Length (mm): 1585
    Loading Floor Height (in): 23.8
    Loading Floor Height (mm): 605
    Standard Measurement: Manufacturer'S Own
    Width Between Wheelhouses (in): 49.6
    Width Between Wheelhouses (mm): 1260
    Width (in): 63.8
    Width (mm): 1620

    External Dimensions

    Kerb to Kerb Turning Circle (mm): 11220
    Front Track (in): 66.3
    Front Track (mm): 1685
    Ground Clearance Unladen (in): 7.5
    Ground Clearance Unladen (mm): 190
    Kerb To Kerb Turning Circle (ft): 36.8
    Overall Height (in): 76.2
    Overall Height (mm): 1935
    Overall Length (in): 201.8
    Overall Length (mm): 5125
    Overall Width (in): 75.6
    Overall Width (mm): 1920
    Rear Track (in): 65.4
    Rear Track (mm): 1660
    Wheelbase (in): 126.0
    Wheelbase (mm): 3200

    Cargo Doors

    Driver Height (in): 62.2
    Driver Height (mm): 1580
    Driver Location: Driver
    Driver Operation: Sliding
    Driver Width (in): 48.2
    Driver Width (mm): 1225
    Passenger Height (in): 62.2
    Passenger Height (mm): 1580
    Location: Passenger
    Passenger Operation: Sliding
    Passenger Width (in): 48.2
    Passenger Width (mm): 1225
    Rear Height (in): 54.7
    Rear Height (mm): 1390
    Location: Rear
    Rear Opening Angle: 90
    Rear Operation: Lifting Gate
    Rear Width (in): 60.6
    Rear Width (mm): 1540

    Rear Door

    Type: Double Hinged

    Headlights

    Low Beam Bulb Type: Halogen

    Paint

    External Colour: Blue
    Type: Gloss

    Door Mirrors/Cameras

    Driver Door Mirrors/Cameras Colour: Black
    Mirrors/Cameras Location: Driver
    Driver Door Mirrors/Cameras Type: Electrically Adjustable
    Passenger Door Mirrors/Cameras Colour: Black
    Mirrors/Cameras Location: Passenger
    Passenger Door Mirrors/Cameras Type: Electrically Adjustable

    Power Windows

    Front Electric Windows: Front

    Rear Side Windows

    Location: Driver
    Driver Type: Hinged
    Location: Passenger
    Passenger Type: Hinged

    Windshield Wipers

    Intermittent Wipe Windshield Wipers: Variable

    Weights

    Gross Trailer Weight Braked (kg): 2000
    Gross Trailer Weight Braked (lb): 4409
    Gross Trailer Weight Unbraked (kg): 750
    Gross Trailer Weight Unbraked (lb): 1653
    Gross Train Weight (kg): 5230
    Gross Train Weight (lb): 11530
    Gross Vehicle Weight (kg): 3230
    Gross Vehicle Weight (lb): 7121
    Payload Allowance (kg): 1130
    Payload Allowance (lb): 2491
    Published Kerb Weight (kg): 2156
    Published Kerb Weight (lb): 4753

    Audio System

    CD Player Reads MP3: yes
    In-Dash CD: yes
    Radio Type: Am/Fm

    External Connections

    Aux Jack (Front): yes

    Speakers

    Number of Speakers: 4

    Bulkhead

    Solid Bulkhead Height: Full
    Type: Solid
    Solid Bulkhead Width: Full
    Solid Bulkhead Window: yes

    Overall Bulkhead Size

    Full Height: yes
    Full Width: yes

    Power Outlet 12V

    Location (12V): Front

    Luxury Trim

    Gear Selector: Alloy Look

    Crash Test Results

    ANCAP Standard: Ancap

    Front Airbag

    Location: Driver
    Location: Passenger

    Front Seat Belts

    Center Seat Position: Center
    Driver Height Adjustable: yes
    Driver Pre Tensioners: yes
    Driver Seat Position: Driver
    Passenger Height Adjustable: yes
    Passenger Pre Tensioners: yes
    Passenger Seat Position: Passenger

    Head Restraints

    Front Seats Location: Front Seats
    Rear Seats Location: Rear Seats
    Rear Seats Number: 3

    Rear Seat Belts

    Center Operation: Static
    Center Seat Position: Centre
    Center Type: lap
    Driver Seat Position: Driver
    Passenger Seat Position: Passenger

    Front Seat

    Location: Centre
    Center Front Seat Type: Bench
    Driver Front Seat Height Adjustment: yes
    Driver Front Seat Height Type: Manual
    Location: Driver
    Driver Front Seat Reach Type: Manual
    Driver Front Seat Type: Bucket
    Location: Passenger
    Passenger Front Seat Reach Type: Manual
    Passenger Front Seat Type: Bench

    Seat Upholstery

    Additional Seat Material: Cloth
    Main Seat Material: Cloth

    Seating

    Capacity: 6
    Configuration: 3+3

    Cup Holders

    Location: Front Seats

    Air Conditioning

    Type: Manual

    Power Locks

    Operation: Remote

    Intermediate Service

    Distance (km): 15000
    Distance (miles): 9321
