Overview

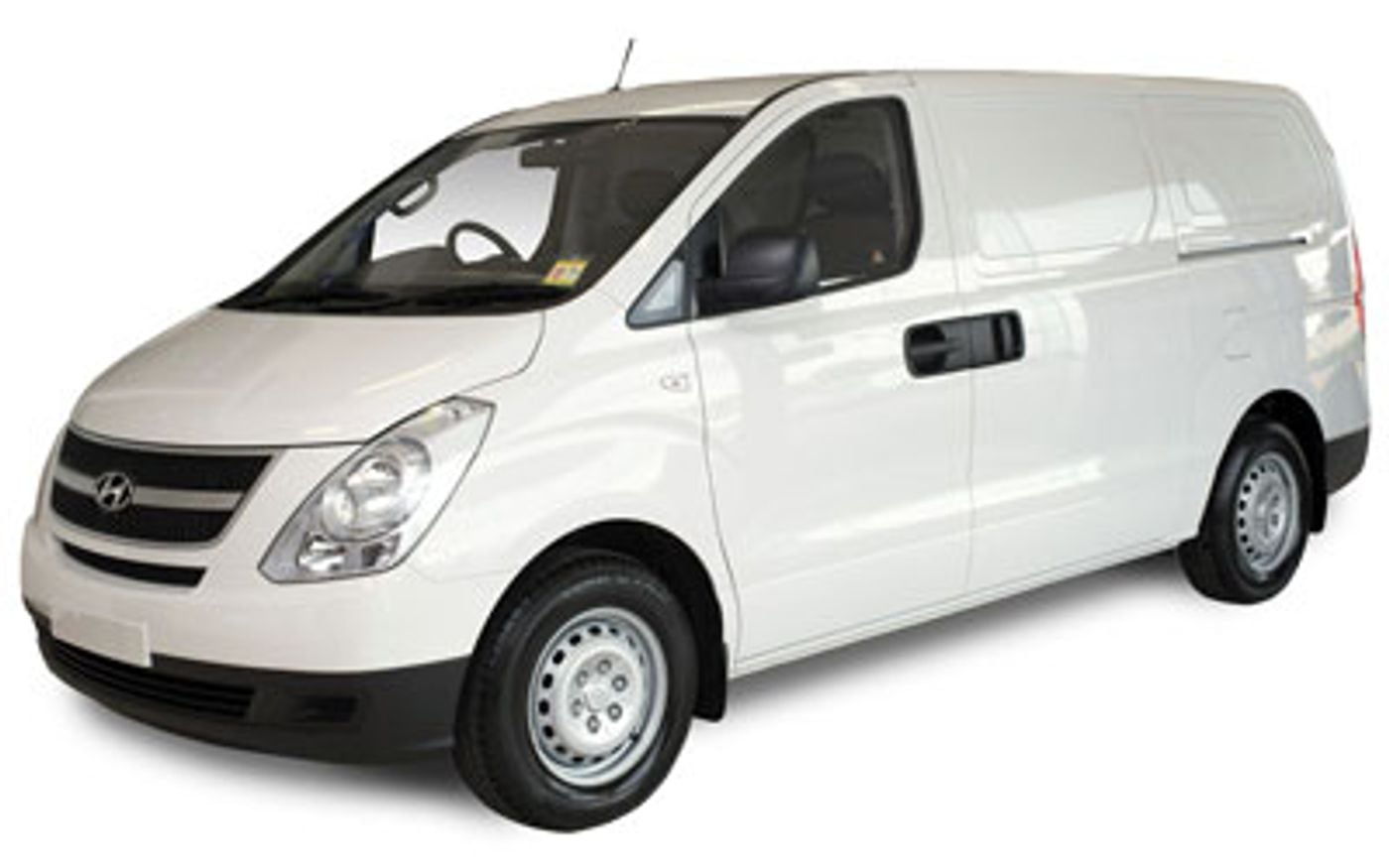

The 2013 Hyundai iLoad Base is a rear-wheel drive, 5-door Panel Van that was released to the Australian market on 2nd August 2012 classified as a TQ2. The Hyundai iLoad is regarded as a Van Under 3.5t built in Turkey with prices starting at $29,990 before on-road costs.
This Hyundai iLoad is powered by a 2.4L 4-cylinder engine that has 129 kW of power (at 6000 rpm) and 228 Nm of torque (at 4200 rpm) via a Five-speed Manual transmission. Hyundai claims the iLoad Base uses 10.1L/100km of Unleaded in the combined city and highway cycle while putting out 238g of CO2. It has a 75L fuel tank, meaning it should be able to travel 743km per full tank
The Hyundai iLoad measures 1935mm (76.2 inches) in height, 5125mm (201.8 inches) in length, 1920mm (75.6 inches) in width with a 3200mm (126.0 inches) wheelbase that brings about a total of 1943kg (4283.6 lbs) of unladen weight. The iLoad Base comes standard with 215/70 R16 front tyres and 215/70 R16 rear tyres. It has a 60 month, 160,000 km warranty.
The 2013 Hyundai iLoad Base has a 190mm ground clearance with a 1500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Towing & Off-Road Capability
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | In-Line |
|---|---|
| Size (cc) | 2359 |
| Size (L) | 2.4L |
| Cylinders | 4 |
| Camshaft | - |
| Valves/Ports per Cylinder | - |
| Power | 129kW |
| Power RPM | 6000 |
| Torque | 228Nm |
| Torque RPM | 4200 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | - |
| Suspension Rear | - |
| Steering Mechanism | Plastic |
| Drive | rear |
| Fuel Combined (L/100km) | 10.1 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 75 |
| Fuel Type | Unleaded |
| e10 Compatible | - |
| CO2 Combined | 238 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | - |
|---|---|
| Brake Rear | - |
| Tyre Front | 215/70 R16 |
| Tyre Rear | 215/70 R16 |
| Front Rim Size | - |
| Rear Rim Size | - |
| Vehicle Height (mm) | 1935 |
|---|---|
| Vehicle Length (mm) | 5125 |
| Vehicle Width (mm) | 1920 |
| Ground Clearance (mm) | 190 |
| Wheelbase (mm) | 3200 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | 1943 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2950 |
| Track Front (mm) | 1685 |
| Track Rear (mm) | 1660 |
| Towing Capacity Brake (kg) | 1500 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Turkey |
|---|---|
| Number of Doors | 5 |
| Seats | 3 |
| Service Interval KMs | 15000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 160 |
| Warranty Months | 60 |
| Discontinued Date | 2012-09-26 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
