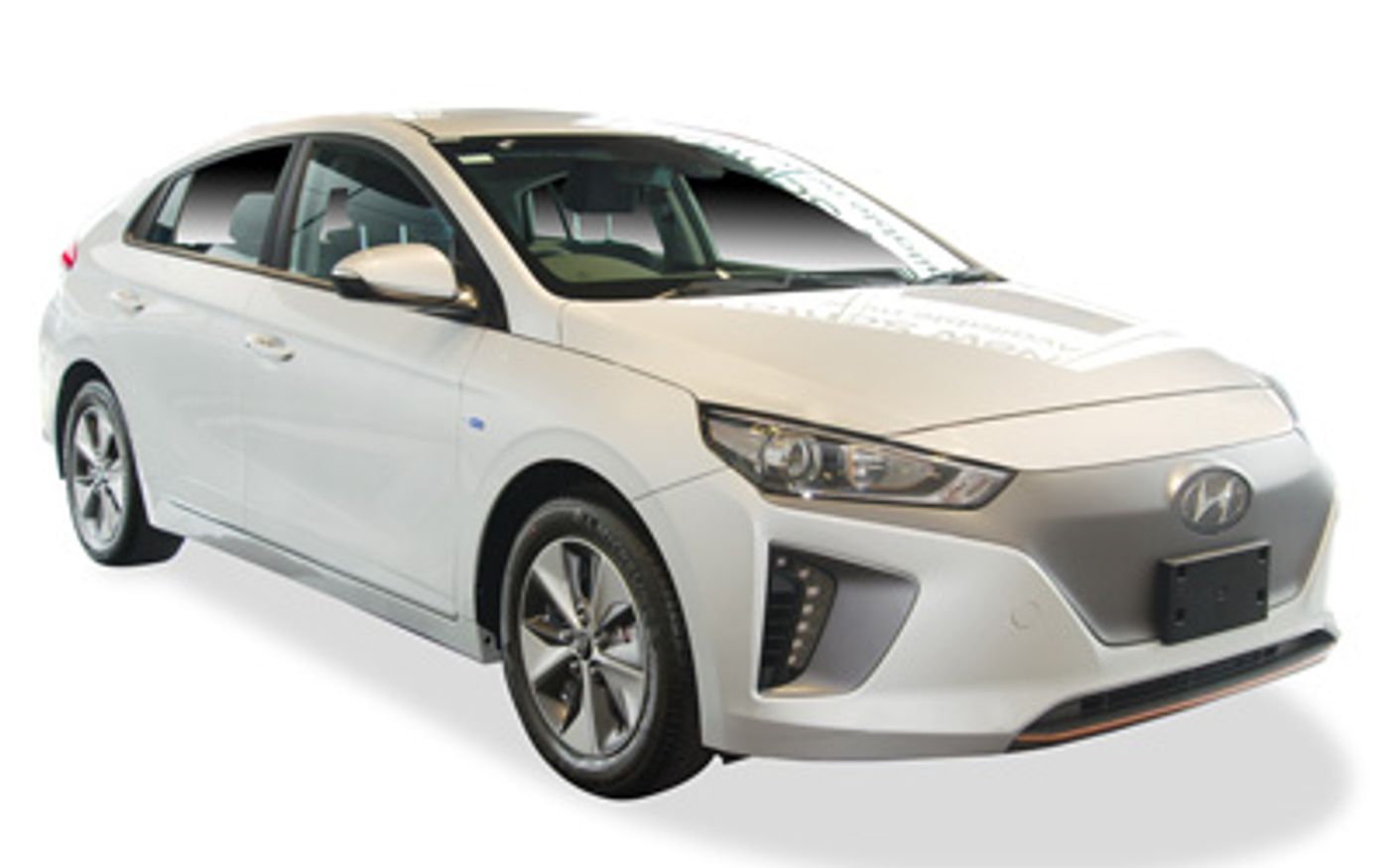

Hyundai Ioniq Elite (2019) price & specs
Save $$$ with CarExpert*
From
$41,400â€
Elite
Overview
The 2019 Hyundai Ioniq Elite is a front-wheel drive, 5-door Hatchback that was released to the Australian market on 5th May 2020 classified as a Ae.2. The Hyundai Ioniq is regarded as a small car built in Korea with prices starting at $41,400 before on-road costs.
This Hyundai Ioniq uses a fully electric engine.
The Hyundai Ioniq measures 1450mm (57.1 inches) in height, 4470mm (176.0 inches) in length, 1820mm (71.7 inches) in width with a 2700mm (106.3 inches) wheelbase that brings about a total of 1550kg (3417.2 lbs) of unladen weight. The Ioniq Elite comes standard with 205/55 R16 front tyres and 205/55 R16 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 60 month, unlimited km warranty.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the Ioniq compare?
Quickly see how the 2019 Hyundai Ioniq Elite stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
59.66 - 70.89 kW/t
58.2 kW/t
155.04 kW/t
Fuel Efficiency
1.1 - 3.9 L/100km
1.1 L/100km
8.1 L/100km
Vehicle Range
1,154 - 1,324 km
617 km
1,324 km
Price
$33,990 - $49,480
$19,990
$52,490
Warranty (Years)
5 years
3 years
7 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
1,880 - 1,970 kg
1,705 kg
2,115 kg
Ground Clearance Unladen
142 mm
102 mm
163 mm
Battery & Charging
Max. battery kilowatt hour
1.6 - 28 kWh
0.7 kWh
28 kWh
AC Charging (max kW)
7 kW
7 kW
DC Fast Charging (max kW)
100 kW
100 kW
Vehicle Range (EV)
63 - 230 km
63 km
230 km
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,470 mm
1,820 mm
1,450 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,470 mm |
| Overall Width | 1,820 mm |
| Overall Height | 1,450 mm |
| Wheelbase | 2,700 mm |
| Turning Circle | 10,600 mm |
| Load Capacity | 420 mm |
Looking for complete Hyundai Ioniq size & space specs?
Our Hyundai Ioniq Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Hyundai Ioniq Sales rolling 12-months#
Explore Hyundai Ioniq Features & Specs
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Cruise Control
Adaptive Cruise Control: yes
Driver Modes
Engine Mapping: yes
Media Control
Touch Screen: yes
Mobile Integration
Android Auto: yes
Apple Carplay: yes
Parking Assistance
Location: Rear
Rear Type: Guidance Display
Parking Distance System
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Vanity Mirror
Driver Mirror Illuminated: yes
Driver Mirror Location: Driver
Passenger Mirror Illuminated: yes
Location: Passenger
Electrical System
Voltage: 48
Emission Control Level
CO2 Level (Combined): 26
Standard Met: EU5
Energy Recuperation
Engine: yes
Engine
Bore Engine: 72.0
Engine (cc): 1580
Engine Configuration: In-Line
Engine (L): 1.6
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 97.0
Variable Valve Timing Camshaft: yes
Additional Fuel Types
Unleaded Fuel: Unleaded
Fuel
Generic Primary Fuel Type: Electric
Minimum Fuel Octane Number: 91
Minimum Fuel Type: Unleaded
Other Fuel Type: Unleaded
Fuel Type: Electric
Fuel System
Injection Carburetion: Petrol Direct Injection
Fuel Tanks
Main Capacity Gal: 11.4
Main Capacity (L): 43
Main Capacity Uk Gallons: 9.5
Main Type: Total
Charging Connector
Mode 2 (EVSE) Type: Mode 2 (Evse)
Type 2 (Mennekes) Charging Socket AC 1: yes
Type 2 (Mennekes) Location of AC 1 Socket: Front Side
Type 2 (Mennekes) Type: Type 2 (Mennekes)
Charging Information
Mode 2 Duration: 2.25
Mode 2 Scenario: Mode 2
Mode 2 Voltage: 240
Mode 3 Scenario: Mode 3
Electric Motor
Motor 1 Type: Ac Perm Magnet Synchronous
Motor 1 Max Torque Motor (Nm): 170
Motor 1 Number: 1
Motor 1 Power Output (hp/PS): 61.2
Motor 1 Power Output Motor (kW): 45.0
Electric Power Source
Battery Supplier: Lg Energy Solution
Battery Type: Lithium-Ion Polymer
Battery Voltage: 360
Maximum Battery (kWh): 8.9
Onboard Charger: 3.3
Range (km): 63.00
Range (miles): 39.15
Hybrid Type
Hybrid Type: Active Hybrid
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 8.0
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 4.2
Low Tire Pressure Indicator
Displays Pressure Reading: yes
Fuel Consumption
ADR 81/02 Combined (km/L): 90.9
ADR 81/02 Combined (L/100km): 1.1
ADR 81/02 Combined (miles per UK gallon): 257
ADR 81/02 Combined (mpg): 214
ADR 81/02 Standard: Adr 81/02
Fuel Economy
ADR 81/02 (L/100km): 1.1
Power
Maximum Power (hp/PS): 141
Maximum Power hp/PS Electric Motor: 61
Maximum Power (kW): 104
Maximum Power kW Electric Motor: 45
Maximum Torque (Nm): 265
Maximum Torque Electric Motor (Nm): 170
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Power Consumption
Combined (km/kWh): 0.1
Combined (kWh/100 miles): 15.1
Combined (kWh/100km): 9.4
Combined (kWh/km): 0.3
Combined (kWh/mile): 0.2
Combined (miles/kWh): 0.2
Combined (Wh/km): 94
Combined (Wh/mile): 151
Secondary Fuel Economy
Combined (km/L): 90.9
Combined (L/100km): 1.1
Combined (mpg): 214
Secondary Power
Maximum Power (hp/PS): 105
Maximum Power (kW): 77
Maximum Torque (Nm): 147
Rpm For Maximum Power Low: 5700
Rpm For Maximum Torque Low: 4000
Drive
Driven Wheels: Front
Transmission
Automatic Mode: yes
Description: Dual Clutch Sequential Trans (Dct)
Manual Sequential: yes
Number of Speeds: 6
Shift Lever Location: Floor
Type: Manual
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Multi Function: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Stabilizer Bar: yes
Rear Type: Multi-Link
Rear Wheel Dependence: Independent
Tires
Front Wheels Tire Load Index: 91
Location: Front
Front Wheels Tire Low Rolling Resistance: yes
Front Wheels Tire Profile: 55
Front Wheels Tire Speed Rating: H
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 205
Rear Wheels Tire Load Index: 91
Rear Wheels Tire Location: Rear
Rear Wheels Tire Low Rolling Resistance: yes
Rear Wheels Tire Profile: 55
Rear Wheels Tire Speed Rating: H
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 205
Wheels
Location: Front
Front Wheels Rim Diameter (In): 16
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 6.5
Front Wheels Two Tone: yes
Location: Rear
Rear Rim Diameter (In): 16
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 6.5
Rear Two Tone: yes
Body Style
Body Type: Hatchback
Local Body Type: Hatchback
Wheelbase Type: Short
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 49.5
Rear Seat Down (L): 1401
External Dimensions
Kerb to Kerb Turning Circle (mm): 10600
Front Track (in): 61.2
Front Track (mm): 1555
Ground Clearance Unladen (in): 5.6
Ground Clearance Unladen (mm): 142
Kerb To Kerb Turning Circle (ft): 34.8
Overall Height (in): 57.1
Overall Height (mm): 1450
Overall Length (in): 176.0
Overall Length (mm): 4470
Overall Width (in): 71.7
Overall Width (mm): 1820
Rear Track (in): 61.8
Rear Track (mm): 1569
Wheelbase (in): 106.3
Wheelbase (mm): 2700
Internal Dimensions
Front Headroom (in): 39.1
Front Headroom (mm): 994
Rear Headroom (in): 37.4
Rear Headroom (mm): 950
Front Hip Room (in): 53.8
Front Hip Room (mm): 1366
Rear Hip Room (in): 52.9
Rear Hip Room (mm): 1344
Front Leg Room (in): 42.2
Front Leg Room (mm): 1073
Rear Leg Room (in): 35.7
Rear Leg Room (mm): 906
Front Shoulder Room (in): 56.1
Front Shoulder Room (mm): 1425
Rear Shoulder Room (in): 55.0
Rear Shoulder Room (mm): 1396
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Dusk Sensor: yes
Height Adjustment: Automatic
Headlights
High Beam Bulb Type: Halogen
Low Beam Bulb Type: Halogen
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: Rear Lights
Paint
External Colour: White
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Variable
Weights
Gross Trailer Weight Braked (kg): 0
Gross Trailer Weight Braked (lb): 0
Gross Trailer Weight Unbraked (kg): 0
Gross Trailer Weight Unbraked (lb): 0
Gross Vehicle Weight (kg): 1970
Gross Vehicle Weight (lb): 4343
Published Kerb Weight (kg): 1550
Published Kerb Weight (lb): 3417
Tare Weight (kg): 1525
Audio System
Brand Name: Infinity
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Brand: Infinity
Number of Speakers: 8
Subwoofer: yes
Cargo Area Cover Rear Parcel Shelf
Type: Flexible
Luxury Trim
Gear Selector: Leather
Airbags
Number of Airbags: 7
Crash Test Results
ANCAP Date Tested: 20160101
ANCAP Overall: 5.00
ANCAP Pedestrian: Acceptable
ANCAP Standard: Ancap
ANCAP Version Tested: Hybrid (Lhd)
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Active: yes
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Height Type: Manual
Location: Driver
Driver Front Seat Reach Type: Manual
Driver Front Seat Reclining Type: Manual
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Cloth
Main Seat Material: Cloth
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 2
Secondary Ventilation Controls
Passenger Seat Location: Passenger Seat
Ventilation System
Digital Display: yes
Heater Type: Electric
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
