Overview

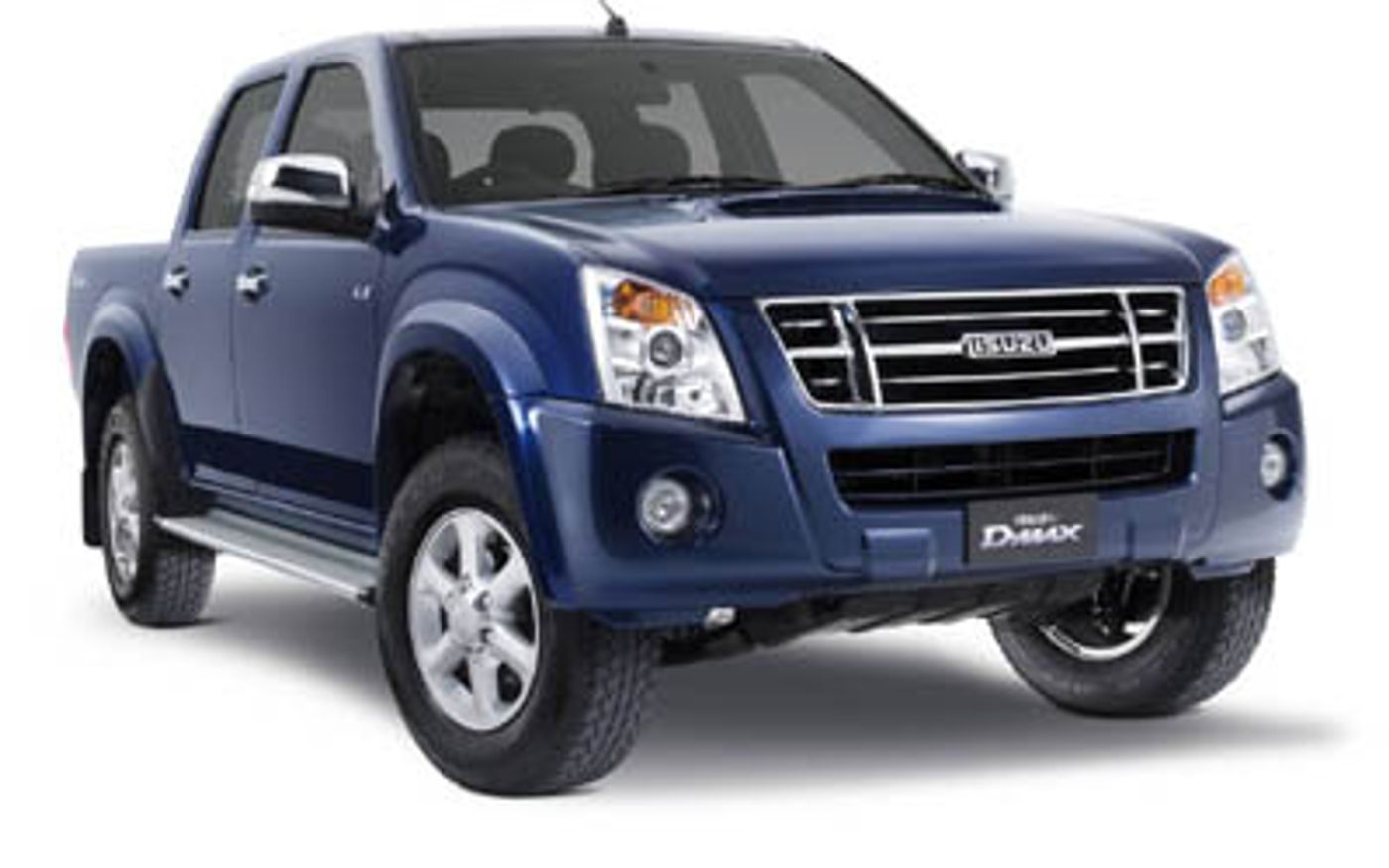

The 2009 Isuzu D-Max Ls-U is a four-wheel drive, 4-door Utility that was released to the Australian market on 4th January 1970. The Isuzu D-Max is regarded as a Pickup built in Thailand with prices starting at $41,800 before on-road costs.
This Isuzu D-Max is powered by a 3.0L 4-cylinder engine that has 120 kW of power (at 3600 rpm) and 360 Nm of torque (at 1800 rpm) via a Five-speed Manual transmission. Isuzu claims the D-Max Ls-U uses 8.4L/100km of Diesel in the combined city and highway cycle while putting out 222g of CO2. It has a 76L fuel tank, meaning it should be able to travel 905km per full tank
The Isuzu D-Max measures 1735mm (68.3 inches) in height, 5030mm (198.0 inches) in length, 1800mm (70.9 inches) in width with a 3050mm (120.1 inches) wheelbase that brings about a total of 1915kg (4221.8 lbs) of unladen weight. The D-Max Ls-U comes standard with 245/70 R16 front tyres and 245/70 R16 rear tyres. It has a 36 month, 100,000 km warranty.
The 2009 Isuzu D-Max Ls-U has a 225mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Comparative Rating
Quickly see how this car stacks up against its competition. Select any benchmark to see more details.
Towing & Off-Road Capability
Dimensions
The dimensions shown above are for the base model.
Specifications
| Type | In-Line |
|---|---|
| Size (cc) | 2999 |
| Size (L) | 3.0L |
| Cylinders | 4 |
| Camshaft | - |
| Valves/Ports per Cylinder | - |
| Power | 120kW |
| Power RPM | 3600 |
| Torque | 360Nm |
| Torque RPM | 1800 |
| Bore Stroke | - |
| Compression Ratio | - |
| Transmission | 5 SP MANUAL |
|---|---|
| Final Gear Ratio | - |
| Suspension Front | - |
| Suspension Rear | - |
| Steering Mechanism | Leather Covered |
| Drive | 4x4 |
| Fuel Combined (L/100km) | 8.4 |
|---|---|
| Fuel Urban (L/100km) | - |
| Fuel Extra Urban (L/100km) | - |
| Tank Size (L) | 76 |
| Fuel Type | Diesel |
| e10 Compatible | - |
| CO2 Combined | 222 |
| CO2 Urban | - |
| CO2 Extra Urban | - |
| Brake Front | - |
|---|---|
| Brake Rear | - |
| Tyre Front | 245/70 R16 |
| Tyre Rear | 245/70 R16 |
| Front Rim Size | - |
| Rear Rim Size | - |
| Vehicle Height (mm) | 1735 |
|---|---|
| Vehicle Length (mm) | 5030 |
| Vehicle Width (mm) | 1800 |
| Ground Clearance (mm) | 225 |
| Wheelbase (mm) | 3050 |
| Turning Circle (m) | - |
| Unladen Weight (kg) | 1915 |
| Gross Combined Weight (kg) | - |
| Gross Vehicle Weight (kg) | 2900 |
| Track Front (mm) | 1520 |
| Track Rear (mm) | 1525 |
| Towing Capacity Brake (kg) | 3000 |
| Towing Capacity Unbraked (kg) | 750 |
| Country Of Origin | Thailand |
|---|---|
| Number of Doors | 4 |
| Seats | 5 |
| Service Interval KMs | 10000 |
| Service Interval Months | - |
| VIN Location | - |
| VIN Number | - |
| Warranty KMs | 100 |
| Warranty Months | 36 |
| Discontinued Date | 2009-09-08 |
| ANCAP Rating | - |
|---|---|
| Euro Air Pollution Standard | - |
