    Isuzu D-Max SX (2012) price & specs

    Save $$$ with CarExpert*
    From
    $41,300†
    3.0L Diesel2D Cab Chassis5 SP AUTOMATIC4x4

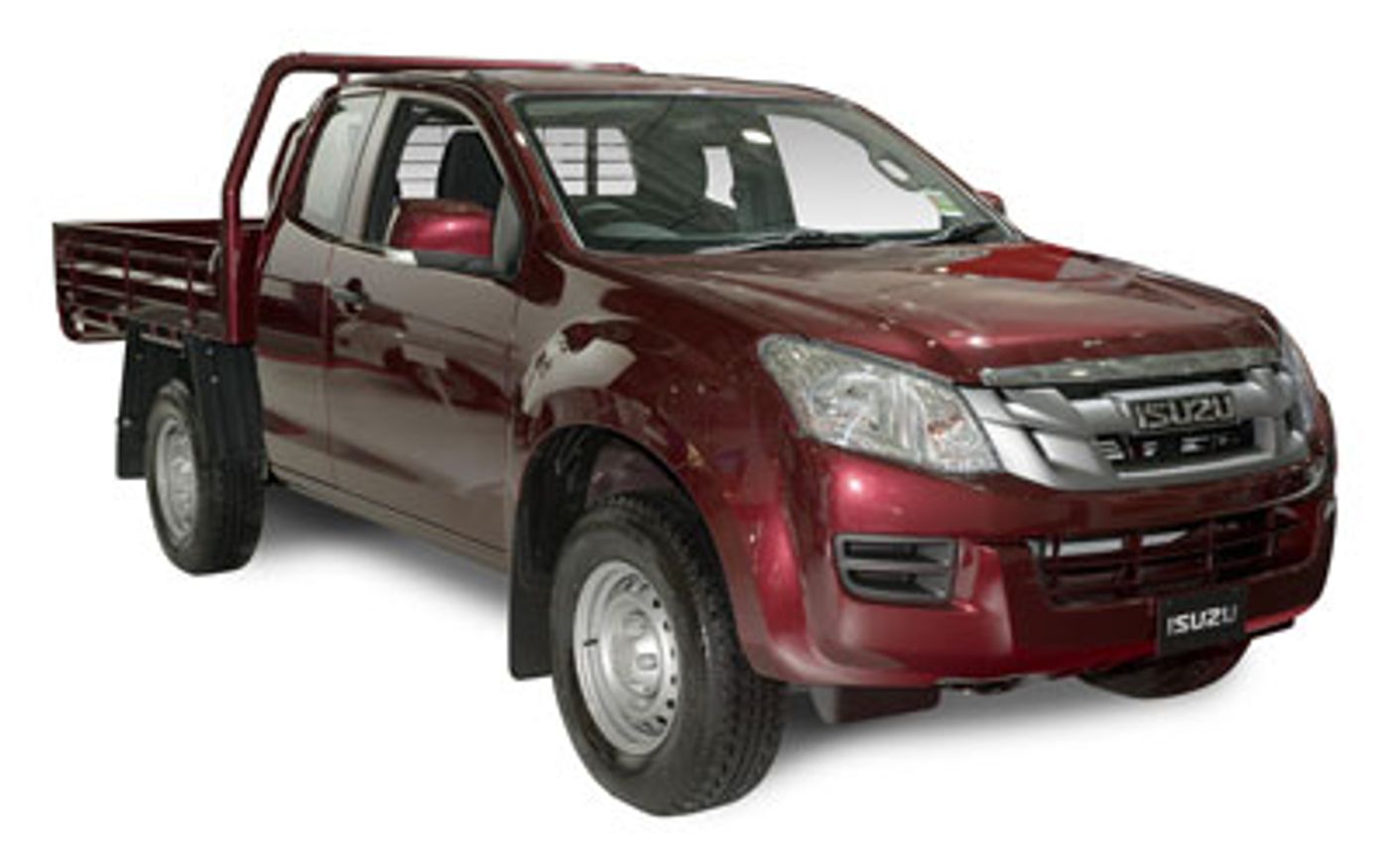

    Hero image of a new Isuzu D-Max SX (2012) price & specs available with CarExpert deals.

    SX

    Find a deal

    Overview

    The 2012 Isuzu D-Max SX is a four-wheel drive, 2-door Cab Chassis that was released to the Australian market on 2nd January 2013. The Isuzu D-Max is regarded as a Pickup built in Thailand with prices starting at $41,300 before on-road costs.

    This Isuzu D-Max is powered by a 3.0L 4-cylinder engine that has 130 kW of power (at 3600 rpm) and 380 Nm of torque (at 1800 rpm) via a Five-speed Automatic transmission. Isuzu claims the D-Max SX uses 8.1L/100km of Diesel in the combined city and highway cycle while putting out 214g of CO2. It has a 76L fuel tank, meaning it should be able to travel 938km per full tank

    The Isuzu D-Max measures 1790mm (70.5 inches) in height, 5020mm (197.6 inches) in length, 1860mm (73.2 inches) in width with a 3095mm (121.9 inches) wheelbase that brings about a total of 1819kg (4010.2 lbs) of unladen weight. The D-Max SX comes standard with 245/70 R16 front tyres and 245/70 R16 rear tyres. It has a 60 month, 130,000 km warranty.

    The 2012 Isuzu D-Max SX has a 225mm ground clearance with a 3000kg braked and 750kg unbraked towing capacity.

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    How does the D-Max compare?

    Quickly see how the 2012 Isuzu D-Max SX stacks up against its competition.
     Select any benchmark to see more details.

    Power to Weight
    64.58 - 81.25 kW/t
    42 kW/t
    114.01 kW/t
    Fuel Efficiency
    8 - 8.3 L/100km
    7.3 L/100km
    13.1 L/100km
    Vehicle Range
    916 - 950 km
    580 km
    1,096 km
    Price
    $27,200 - $51,700
    $18,990
    $67,990
    Warranty (Years)
    3 - 5 years
    2 years
    5 years
    Warranty (Distance)
    100,000 - 130,000 km
    100,000 km
    Unlimited
    Years on Sale
    1 - 2 years
    1 year
    4 years

    Towing & Off-Road Capability

    Gross Vehicle Weight
    2,850 - 2,950 kg
    2,710 kg
    3,500 kg
    Gross Comb. Mass
    5,350 - 5,950 kg
    4,480 kg
    6,800 kg
    Braked Towing Capacity
    2,500 - 3,000 kg
    1,800 kg
    3,500 kg
    Ground Clearance Unladen
    190 - 235 mm
    135 mm
    314 mm
    Payload Capacity
    937 - 1,250 kg
    726 kg
    1,648 kg

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    Dimensions

    5,020 mm
    1,860 mm
    1,790 mm
    SpecificationMeasurement
    Overall Length5,020 mm
    Overall Width1,860 mm
    Overall Height1,790 mm
    Wheelbase3,095 mm
    Turning Circle12,600 mm
    Load Capacity1,131 mm

    Looking for complete Isuzu D-Max size & space specs?

    Our Isuzu D-Max Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.

    Explore Isuzu D-Max Features & Specs

    SX

    3.0L, 5-speed auto, 2-door Cab Chassis, Diesel, 4x4

    Save $$$ with CarExpert*
    $41,300†
    Find a deal

    Compressor

    Compressor: Turbo

    Emission Control Level

    CO2 Level (Combined): 214
    Standard Met: EU4

    Engine

    Bore Engine: 95.4
    Engine (cc): 2999
    Engine Configuration: In-Line
    Engine Code: 4jj1-Tc
    Engine (L): 3.0
    Number of Cylinders: 4
    Number of Valves per Cylinder: 4
    Stroke Engine: 104.9
    Valve Gear Type: Double Overhead Cam

    Fuel

    Generic Primary Fuel Type: Diesel
    Minimum Fuel Type: Diesel
    Fuel Type: Diesel

    Fuel System

    Injection Carburetion: Diesel Common Rail

    Fuel Tanks

    Main Capacity Gal: 20.1
    Main Capacity (L): 76
    Main Capacity Uk Gallons: 16.7
    Main Type: Total

    Interested in buying a Isuzu D-Max SX?

    Save $$$ with CarExpert*
    From
    $41,300†
    Find a deal

    Fuel Consumption

    ADR 81/02 Calculated Vehicle Range (km): 938
    ADR 81/02 Calculated Vehicle Range (miles): 583
    ADR 81/02 Combined (km/L): 12.3
    ADR 81/02 Combined (L/100km): 8.1
    ADR 81/02 Combined (miles per UK gallon): 35
    ADR 81/02 Combined (mpg): 29
    ADR 81/02 Country Highway (km/L): 14.3
    ADR 81/02 Country Highway (L/100km): 7.0
    ADR 81/02 Country Highway (miles per UK gallon): 40
    ADR 81/02 Country Highway (mpg): 34
    ADR 81/02 Standard: Adr 81/02
    ADR 81/02 Urban (km/L): 10.0
    ADR 81/02 Urban (L/100km): 10.0
    ADR 81/02 Urban (miles per UK gallon): 28
    ADR 81/02 Urban (mpg): 24

    Fuel Economy

    ADR 81/02 (L/100km): 8.1

    Power

    Maximum Power (hp/PS): 177
    Maximum Power (kW): 130
    Maximum Torque (Nm): 380
    Measurement Standard: DIN
    Rpm For Maximum Power Low: 3600
    Rpm For Maximum Torque Low: 1800

    Drive

    Descent Control System: yes
    Driven Wheels: 4x4
    Four-Wheel Drive Type: Part-Time
    Selection: Manual

    Limited Slip Differential

    Location: Rear

    Transmission

    Code: Awtb50-Ls
    Description: Automatic With Manual Mode
    Low High Gear Ranges: yes
    Manual Mode: yes
    Number of Speeds: 5
    Type: Automatic

    Disc Brakes

    Number of Disc Brakes: 2
    Number of Ventilated Disc Brakes: 2

    Power Steering

    Type: Hydraulic

    Steering Wheel

    Height Adjustment: yes
    Type: Plastic

    Suspension

    Location: Front
    Front Spring Type: Coil
    Front Stabilizer Bar: yes
    Front Type: Wishbone
    Front Wheel Dependence: Independent
    Location: Rear
    Rear Spring Type: Leaf
    Rear Type: Beam
    Rear Wheel Dependence: Rigid

    Tires

    Front Wheels Tire Load Index: 111
    Location: Front
    Front Wheels Tire Profile: 70
    Front Wheels Tire Type: All Terrain
    Front Wheels Tire Width: 245
    Rear Wheels Tire Load Index: 111
    Rear Wheels Tire Location: Rear
    Rear Wheels Tire Profile: 70
    Rear Wheels Tire Type: All Terrain
    Rear Wheels Tire Width: 245

    Wheels

    Location: Front
    Front Wheels Rim Diameter (In): 16
    Front Wheels Rim Type: Steel
    Front Wheels Rim Width (In): 7.0
    Location: 1
    Location: Rear
    Rear Rim Diameter (In): 16
    Rear Rim Type: Steel
    Rear Wheels Rim Width (In): 7.0

    Body Style

    Body Type: Cab Chassis
    Cab Type: Extended
    Local Body Type: Cab Chassis
    Platform Code: I-Grip
    Roof Type: Standard
    Wheelbase Type: Short

    Bumpers

    Front Bumper Colour: Painted
    Location: Front

    External Dimensions

    Kerb to Kerb Turning Circle (mm): 12600
    Front Overhang (in): 35.6
    Front Overhang (mm): 905
    Front Track (in): 61.8
    Front Track (mm): 1570
    Ground Clearance Unladen (in): 8.9
    Ground Clearance Unladen (mm): 225
    Kerb To Kerb Turning Circle (ft): 41.3
    Overall Height (in): 70.5
    Overall Height (mm): 1790
    Overall Length (in): 197.6
    Overall Length (mm): 5020
    Overall Width (in): 73.2
    Overall Width (mm): 1860
    Rear Overhang (in): 40.2
    Rear Overhang (mm): 1020
    Rear Track (in): 61.8
    Rear Track (mm): 1570
    Wheelbase (in): 121.9
    Wheelbase (mm): 3095

    Headlights

    Low Beam Bulb Type: Halogen

    Paint

    External Colour: White
    Type: Gloss

    Door Mirrors/Cameras

    Driver Door Mirrors/Cameras Colour: Painted
    Mirrors/Cameras Location: Driver
    Driver Door Mirrors/Cameras Type: Electrically Adjustable
    Passenger Door Mirrors/Cameras Colour: Painted
    Mirrors/Cameras Location: Passenger
    Passenger Door Mirrors/Cameras Type: Electrically Adjustable

    Power Windows

    Front Electric Windows: Front

    Rear Side Windows

    Location: Driver
    Location: Passenger

    Windshield Wipers

    Intermittent Wipe Windshield Wipers: Fixed

    Weights

    Front Axle Weight (kg): 1350
    Front Axle Weight (lb): 2976
    Gross Trailer Weight Braked (kg): 3000
    Gross Trailer Weight Braked (lb): 6614
    Gross Trailer Weight Unbraked (kg): 750
    Gross Trailer Weight Unbraked (lb): 1653
    Gross Train Weight (kg): 5950
    Gross Train Weight (lb): 13118
    Gross Vehicle Weight (kg): 2950
    Gross Vehicle Weight (lb): 6504
    Payload Allowance (kg): 1131
    Payload Allowance (lb): 2493
    Published Kerb Weight (kg): 1819
    Published Kerb Weight (lb): 4010
    Rear Axle Weight (kg): 1870
    Rear Axle Weight (lb): 4123
    Tare Weight (kg): 1746

    Audio System

    CD Player Reads MP3: yes
    In-Dash CD: yes
    Radio Type: Am/Fm

    External Connections

    Aux Jack (Front): yes
    iPod Connection (Front): yes
    USB (Front): yes

    Speakers

    Number of Speakers: 2

    Bluetooth

    Includes Phone Connection: yes

    Power Outlet 12V

    Location (12V): Front

    Floor Covering

    Vehicle Cab Compartment: Plastic/Rubber

    Crash Test Results

    ANCAP Date Tested: 20130826
    ANCAP Overall: 4.00
    ANCAP Standard: Ancap
    ANCAP Version Tested: 2.5 Litre Crew Cab 4x4

    Front Airbag

    Location: Driver
    Location: Passenger

    Front Seat Belts

    Driver Height Adjustable: yes
    Driver Pre Tensioners: yes
    Driver Seat Position: Driver
    Passenger Height Adjustable: yes
    Passenger Pre Tensioners: yes
    Passenger Seat Position: Passenger

    Head Restraints

    Front Seats Location: Front Seats

    Rear Seat Belts

    Driver Seat Position: Driver
    Passenger Seat Position: Passenger

    Side Airbag

    Location: Front

    Side Curtain Airbag

    Location: Front

    Front Seat

    Location: Driver
    Driver Front Seat Reach Type: Manual
    Driver Front Seat Type: Bucket
    Location: Passenger
    Passenger Front Seat Reach Type: Manual
    Passenger Front Seat Type: Bucket

    Seat Upholstery

    Additional Seat Material: Cloth
    Main Seat Material: Cloth

    Seating

    Capacity: 4
    Configuration: 2+2

    Cup Holders

    Location: Front Seats

    Air Conditioning

    Type: Manual

    Power Locks

    Operation: Remote

    Intermediate Service

    Distance (km): 10000
    Distance (miles): 6214
