    Isuzu D-Max X-Runner (2017) price & specs

    Save $$$ with CarExpert*
    From
    $46,990†
    3.0L Diesel4D Utility6 SP AUTOMATIC4x4

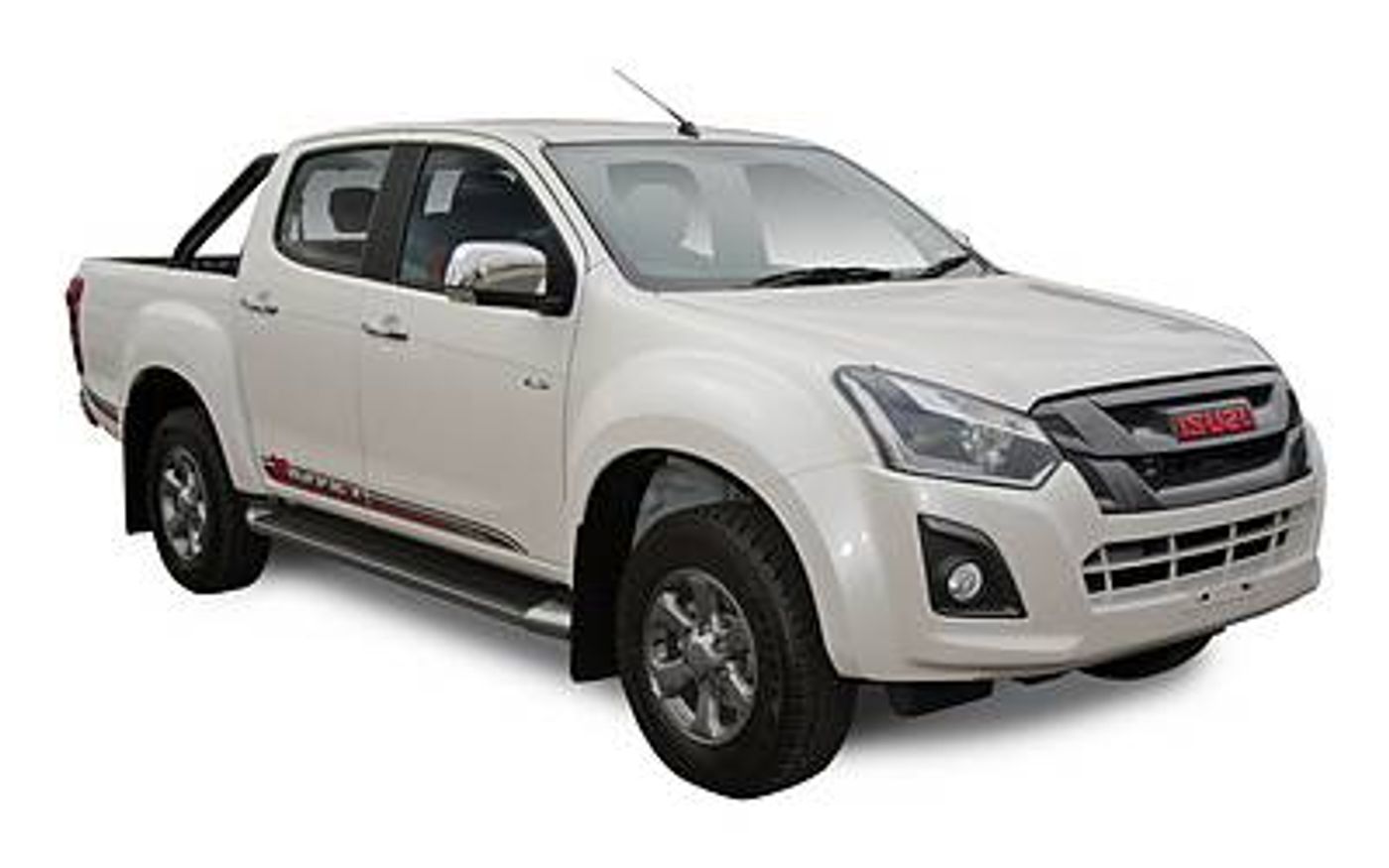

    Hero image of a new Isuzu D-Max X-Runner (2017) price & specs available with CarExpert deals.

    X-Runner

    Find a deal

    Overview

    The 2017 Isuzu D-Max X-Runner is a four-wheel drive, 4-door Utility that was released to the Australian market on 5th February 2017. The Isuzu D-Max is regarded as a Pickup built in Thailand with prices starting at $46,990 before on-road costs.

    This Isuzu D-Max is powered by a 3.0L 4-cylinder engine that has 130 kW of power (at 3600 rpm) and 430 Nm of torque (at 1800 rpm) via a Six-speed Automatic transmission. Isuzu claims the D-Max X-Runner uses 7.7L/100km of Diesel in the combined city and highway cycle while putting out 203g of CO2. It has a 76L fuel tank, meaning it should be able to travel 987km per full tank

    The Isuzu D-Max measures 1785mm (70.3 inches) in height, 5295mm (208.5 inches) in length, 1860mm (73.2 inches) in width with a 3095mm (121.9 inches) wheelbase that brings about a total of 2003kg (4415.9 lbs) of unladen weight. The D-Max X-Runner comes standard with 245/70 R16 front tyres and 245/70 R16 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 60 month, 130,000 km warranty.

    The 2017 Isuzu D-Max X-Runner has a 225mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    How does the D-Max compare?

    Quickly see how the 2017 Isuzu D-Max X-Runner stacks up against its competition.
     Select any benchmark to see more details.

    Power to Weight
    64.17 - 81.2 kW/t
    53.42 kW/t
    92.28 kW/t
    Fuel Efficiency
    7.2 - 8.1 L/100km
    6.3 L/100km
    10.9 L/100km
    Vehicle Range
    938 - 1,056 km
    688 km
    1,270 km
    Price
    $28,500 - $54,200
    $19,490
    $149,500
    Warranty (Years)
    5 years
    2 years
    5 years
    Warranty (Distance)
    130,000 km
    100,000 km
    Unlimited
    Years on Sale
    1 - 2 years
    1 year
    4 years
    Service Interval
    12 months
    6 months
    12 months

    Towing & Off-Road Capability

    Gross Vehicle Weight
    2,850 - 2,950 kg
    2,550 kg
    4,490 kg
    Gross Comb. Mass
    5,350 - 5,950 kg
    4,138 kg
    11,479 kg
    Braked Towing Capacity
    2,500 - 3,500 kg
    1,588 kg
    6,942 kg
    Approach Angle
    20.7 - 30°
    20.7°
    35°
    Departure Angle
    20.3 - 27.4°
    20.3°
    29°
    Ground Clearance Unladen
    190 - 235 mm
    188 mm
    279 mm
    Payload Capacity
    919 - 1,249 kg
    864 kg
    1,533 kg

    Trusted Reviews, Smarter Choices, Better Prices

    Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.

    Compare CarsFind a deal

    Dimensions

    5,295 mm
    1,860 mm
    1,785 mm
    SpecificationMeasurement
    Overall Length5,295 mm
    Overall Width1,860 mm
    Overall Height1,785 mm
    Wheelbase3,095 mm
    Turning Circle12,600 mm
    Load Capacity947 mm

    Looking for complete Isuzu D-Max size & space specs?

    Our Isuzu D-Max Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.

    Explore Isuzu D-Max Features & Specs

    X-Runner

    3.0L, 6-speed auto, 4-door Utility, Diesel, 4x4

    Save $$$ with CarExpert*
    $46,990†
    Find a deal

    Compressor

    Compressor: Turbo

    Emission Control Level

    CO2 Level (Combined): 203
    Standard Met: EU5

    Engine

    Bore Engine: 95.4
    Engine (cc): 2999
    Engine Configuration: In-Line
    Engine Code: 4jj1-Tc
    Engine (L): 3.0
    Number of Cylinders: 4
    Number of Valves per Cylinder: 4
    Stroke Engine: 104.9

    Fuel

    Generic Primary Fuel Type: Diesel
    Minimum Fuel Type: Diesel
    Fuel Type: Diesel

    Fuel System

    Injection Carburetion: Diesel Common Rail

    Fuel Tanks

    Main Capacity Gal: 20.1
    Main Capacity (L): 76
    Main Capacity Uk Gallons: 16.7
    Main Type: Total

    Interested in buying a Isuzu D-Max X-Runner?

    Save $$$ with CarExpert*
    From
    $46,990†
    Find a deal

    Fuel Consumption

    ADR 81/02 Calculated Vehicle Range (km): 987
    ADR 81/02 Calculated Vehicle Range (miles): 613
    ADR 81/02 Combined (km/L): 13.0
    ADR 81/02 Combined (L/100km): 7.7
    ADR 81/02 Combined (miles per UK gallon): 37
    ADR 81/02 Combined (mpg): 31
    ADR 81/02 Country Highway (km/L): 14.9
    ADR 81/02 Country Highway (L/100km): 6.7
    ADR 81/02 Country Highway (miles per UK gallon): 42
    ADR 81/02 Country Highway (mpg): 35
    ADR 81/02 Standard: Adr 81/02
    ADR 81/02 Urban (km/L): 10.5
    ADR 81/02 Urban (L/100km): 9.5
    ADR 81/02 Urban (miles per UK gallon): 30
    ADR 81/02 Urban (mpg): 25

    Fuel Economy

    ADR 81/02 (L/100km): 7.7

    Power

    Maximum Power (hp/PS): 177
    Maximum Power (kW): 130
    Maximum Torque (Nm): 430
    Measurement Standard: DIN
    Primary or Secondary Fuel Power Figure: Primary
    Rpm For Maximum Power Low: 3600
    Rpm For Maximum Torque Low: 1800

    Drive

    Descent Control System: yes
    Driven Wheels: 4x4
    Four-Wheel Drive Type: Part-Time
    Selection: Manual

    Limited Slip Differential

    Location: Rear

    Transmission

    Description: Automatic With Manual Mode
    Low High Gear Ranges: yes
    Manual Mode: yes
    Number of Speeds: 6
    Type: Automatic

    Disc Brakes

    Number of Disc Brakes: 2
    Number of Ventilated Disc Brakes: 2

    Power Steering

    Type: Hydraulic

    Steering Wheel

    Height Adjustment: yes
    Type: Leather Covered

    Suspension

    Location: Front
    Front Spring Type: Coil
    Front Stabilizer Bar: yes
    Front Type: Wishbone
    Front Wheel Dependence: Independent
    Location: Rear
    Rear Spring Type: Leaf
    Rear Type: Beam
    Rear Wheel Dependence: Rigid

    Tires

    Front Wheels Tire Load Index: 111
    Location: Front
    Front Wheels Tire Profile: 70
    Front Wheels Tire Type: All Terrain
    Front Wheels Tire Width: 245
    Rear Wheels Tire Load Index: 111
    Rear Wheels Tire Location: Rear
    Rear Wheels Tire Profile: 70
    Rear Wheels Tire Type: All Terrain
    Rear Wheels Tire Width: 245

    Wheels

    Location: Front
    Front Wheels Rim Diameter (In): 16
    Front Wheels Rim Type: Alloy
    Front Wheels Rim Width (In): 7.0
    Location: 1
    Location: Rear
    Rear Rim Diameter (In): 16
    Rear Rim Type: Alloy
    Rear Wheels Rim Width (In): 7.0

    Body Style

    Body Type: Utility
    Cab Type: Double Cab
    Local Body Type: Utility
    Platform Code: I-Grip
    Roof Type: Standard
    Wheelbase Type: Short

    Mud Flaps

    Front Mud Flaps Location: Front
    Rear Mud Flaps Location: Rear

    Step

    Step Location: Rear
    Rear Step Type: Platform
    Step Location: Side

    Tray/Tub

    Liner: Composite
    Type: Straight Side

    Cargo Area Dimensions

    Height (in): 18.3
    Height (mm): 1530
    Length (in): 61.1
    Length (mm): 1552
    Standard Measurement: Manufacturer'S Own
    Width Between Wheelhouses (in): 43.5
    Width Between Wheelhouses (mm): 1105
    Width (in): 60.2
    Width (mm): 1530

    External Dimensions

    Kerb to Kerb Turning Circle (mm): 12600
    Front Overhang (in): 35.6
    Front Overhang (mm): 905
    Front Track (in): 61.8
    Front Track (mm): 1570
    Ground Clearance Unladen (in): 8.9
    Ground Clearance Unladen (mm): 225
    Kerb To Kerb Turning Circle (ft): 41.3
    Overall Height (in): 70.3
    Overall Height (mm): 1785
    Overall Length (in): 208.5
    Overall Length (mm): 5295
    Overall Width (in): 73.2
    Overall Width (mm): 1860
    Rear Overhang (in): 51.0
    Rear Overhang (mm): 1295
    Rear Track (in): 61.8
    Rear Track (mm): 1570
    Wheelbase (in): 121.9
    Wheelbase (mm): 3095

    Ramp Angles

    Approach Angle: 30.0
    Departure Angle: 22.7

    Bumpers

    Front Bumper Colour: Painted
    Location: Front
    Rear Bumper Colour: Black
    Location: Rear

    Cargo Doors

    Rear Height (in): 18.3
    Rear Height (mm): 465
    Location: Rear
    Rear Operation: Dropping Gate
    Rear Width (in): 57.5
    Rear Width (mm): 1460

    Doors

    Location: Driver
    Driver Door Type: Front Hinged
    Location: Passenger
    Passenger Door Type: Front Hinged
    Location: Rear Driver
    Rear Driver Door Type: Front Hinged
    Location: Rear Passenger
    Rear Passenger Door Type: Front Hinged

    Headlights

    High Beam Bulb Type: Halogen
    Low Beam Bulb Type: Halogen
    Lens Type: Ellipsoidal

    LED Lights

    Location: Day Time Running Lights

    Paint

    External Colour: White
    Type: Metallic

    Door Mirrors/Cameras

    Driver Door Mirrors/Cameras Colour: Painted
    Mirrors/Cameras Location: Driver
    Driver Door Mirrors/Cameras Type: Electrically Adjustable
    Passenger Door Mirrors/Cameras Colour: Painted
    Mirrors/Cameras Location: Passenger
    Passenger Door Mirrors/Cameras Type: Electrically Adjustable

    Power Windows

    Front Electric Windows: Front
    Rear Electric Windows: Rear

    Rear Side Windows

    Location: Driver
    Location: Passenger

    Windshield Wipers

    Intermittent Wipe Windshield Wipers: Variable

    Weights

    Front Axle Weight (kg): 1350
    Front Axle Weight (lb): 2976
    Gross Trailer Weight Braked (kg): 3500
    Gross Trailer Weight Braked (lb): 7716
    Gross Trailer Weight Unbraked (kg): 750
    Gross Trailer Weight Unbraked (lb): 1653
    Gross Train Weight (kg): 5950
    Gross Train Weight (lb): 13118
    Gross Vehicle Weight (kg): 2950
    Gross Vehicle Weight (lb): 6504
    Payload Allowance (kg): 1020
    Payload Allowance (lb): 2249
    Published Kerb Weight (kg): 2003
    Published Kerb Weight (lb): 4416
    Rear Axle Weight (kg): 1870
    Rear Axle Weight (lb): 4123
    Tare Weight (kg): 1930

    Audio System

    CD Player Reads MP3: yes
    Colour Screen: yes
    In-Dash CD: yes
    Radio Type: Am/Fm
    Touch Screen: yes

    External Connections

    Aux Jack (Front): yes
    iPod Connection (Front): yes
    USB (Front): yes

    Remote Audio Controls

    Type: Steering Wheel Mounted

    Speakers

    Number of Speakers: 6

    Bluetooth

    Includes Music Streaming: yes
    Includes Phone Connection: yes

    Parking Distance System

    Location: Rear
    Rear Type: Camera

    Power Outlet 12V

    Location (12V): Front

    Display Screen

    Screen Size (in): 7.0
    Touch Screen: yes

    Floor Covering

    Vehicle Cab Compartment: Textile

    Luxury Trim

    Centre Floor Console: Alloy Look
    Doors: Alloy Look
    Instrument Panel: Alloy Look

    Airbags

    Number of Airbags: 6

    Crash Test Results

    ANCAP Date Tested: 20131218
    ANCAP Overall: 5.00
    ANCAP Pedestrian: Marginal
    ANCAP Rear Crash Protect Head Restraint Rating: Good
    ANCAP Standard: Ancap
    ANCAP Version Tested: 3.0 Litre Crew Cab 4x4

    Front Airbag

    Location: Driver
    Location: Passenger

    Front Seat Belts

    Driver Height Adjustable: yes
    Driver Pre Tensioners: yes
    Driver Seat Position: Driver
    Passenger Height Adjustable: yes
    Passenger Pre Tensioners: yes
    Passenger Seat Position: Passenger

    Head Restraints

    Front Seats Location: Front Seats
    Rear Seats Location: Rear Seats
    Rear Seats Number: 3

    Rear Seat Belts

    Center Seat Position: Centre
    Center Type: 3-Point
    Driver Seat Position: Driver
    Passenger Seat Position: Passenger

    Side Airbag

    Location: Front

    Side Curtain Airbag

    Location: Front And Rear

    Front Seat

    Driver Front Seat Height Type: Manual
    Location: Driver
    Driver Front Seat Reach Type: Manual
    Driver Front Seat Type: Bucket
    Location: Passenger
    Passenger Front Seat Reach Type: Manual
    Passenger Front Seat Type: Bucket

    Seat Upholstery

    Additional Seat Material: Upgraded Cloth/Velour
    Main Seat Material: Upgraded Cloth/Velour

    Seating

    Capacity: 5
    Configuration: 2+3

    Cup Holders

    Location: Front Seats
    Location: Rear Seats

    Air Conditioning

    Type: Fully-Auto

    Ventilation System

    Digital Display: yes

    Power Locks

    Operation: Remote

    Intermediate Service

    Distance (km): 10000
    Distance (miles): 6214
    Period (Months): 12
