X-Terrain
3.0L, 6-speed auto, 4-door Utility, Diesel, 4x4
Save $$$ with CarExpert*
$63,900â€

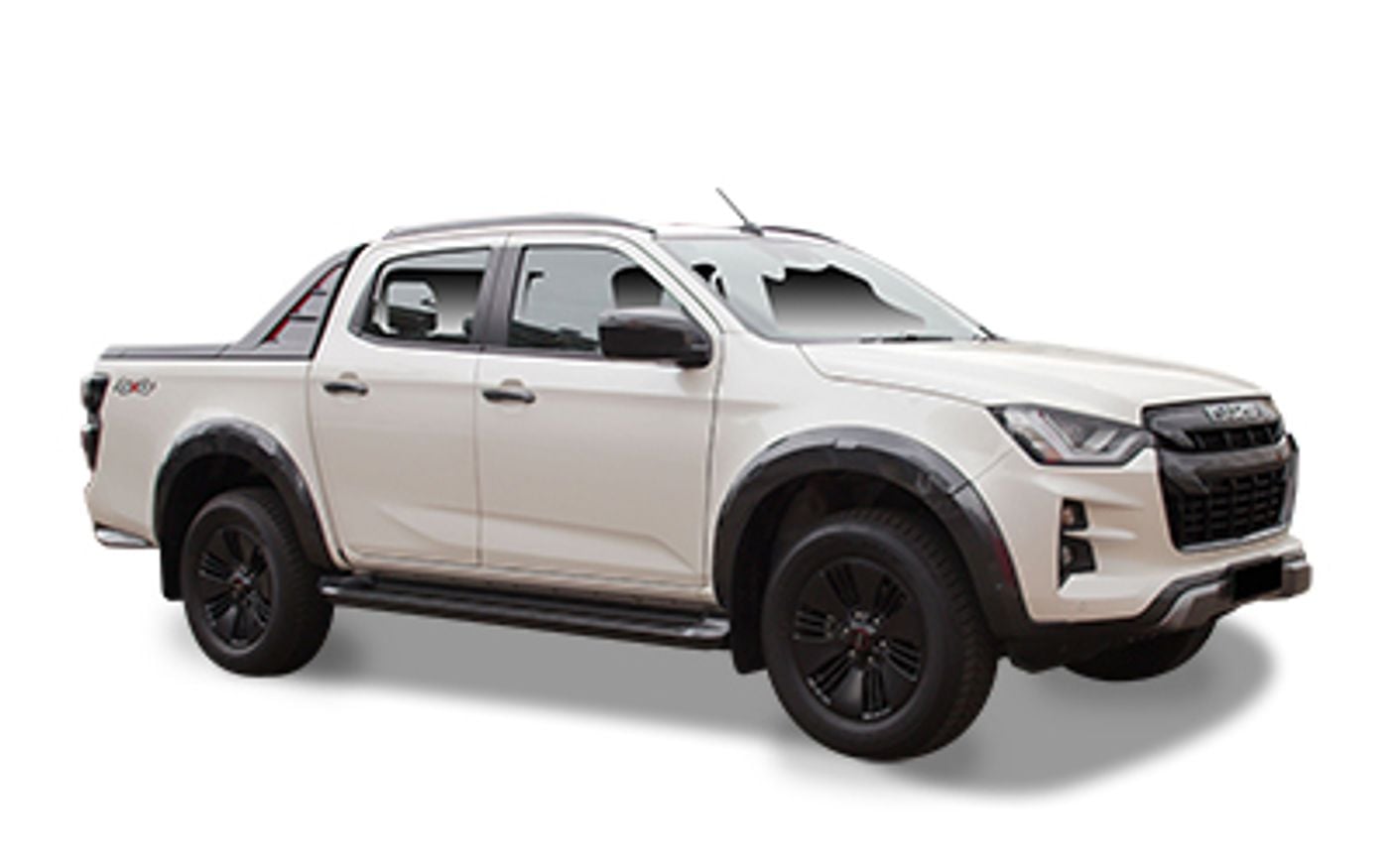

Isuzu D-Max X-Terrain (2021) price & specs
Save $$$ with CarExpert*
From
$63,900â€
X-Terrain
Overview
The 2021 Isuzu D-Max X-Terrain is a four-wheel drive, 4-door Utility that was released to the Australian market on 4th April 2021. The Isuzu D-Max is regarded as a Pickup built in Thailand with prices starting at $63,900 before on-road costs.
This Isuzu D-Max is powered by a 3.0L 4-cylinder engine that has 140 kW of power (at 3600 rpm) and 450 Nm of torque (at 1600 rpm) via a Six-speed Automatic transmission. Isuzu claims the D-Max X-Terrain uses 8.0L/100km of Diesel in the combined city and highway cycle while putting out 207g of CO2. It has a 76L fuel tank, meaning it should be able to travel 950km per full tank
The Isuzu D-Max measures 1810mm (71.3 inches) in height, 5280mm (207.9 inches) in length, 1880mm (74.0 inches) in width with a 3125mm (123.0 inches) wheelbase that brings about a total of 2130kg (4695.8 lbs) of unladen weight. The D-Max X-Terrain comes standard with 265/60 R18 front tyres and 265/60 R18 rear tyres. It requires a service every 12 months or 15,000 km, whichever comes first. It has a 72 month, 150,000 km warranty.
The 2021 Isuzu D-Max X-Terrain has a 240mm ground clearance with a 3500kg braked and 750kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the D-Max compare?
Quickly see how the 2021 Isuzu D-Max X-Terrain stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
65.73 - 90.32 kW/t
47.8 kW/t
126.77 kW/t
Fuel Efficiency
7.7 - 8 L/100km
6.5 L/100km
12.8 L/100km
Vehicle Range
950 - 987 km
658 km
1,231 km
Price
$32,200 - $63,900
$22,990
$143,950
Warranty (Years)
6 years
3 years
10 years
Warranty (Distance)
150,000 km
100,000 km
Unlimited
Years on Sale
1 - 2 years
1 year
4 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Gross Vehicle Weight
3,000 - 3,100 kg
2,631 kg
3,450 kg
Gross Comb. Mass
5,850 - 5,950 kg
4,435 kg
7,713 kg
Braked Towing Capacity
3,500 kg
1,800 kg
4,500 kg
Approach Angle
29.6 - 30.5°
15.2°
40.7°
Departure Angle
23.9 - 28.9°
15°
29.2°
Ground Clearance Unladen
235 - 240 mm
171 mm
283 mm
Payload Capacity
970 - 1,550 kg
527 kg
1,550 kg
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
5,280 mm
1,880 mm
1,810 mm
| Specification | Measurement |
|---|---|
| Overall Length | 5,280 mm |
| Overall Width | 1,880 mm |
| Overall Height | 1,810 mm |
| Wheelbase | 3,125 mm |
| Turning Circle | 12,500 mm |
| Load Capacity | 970 mm |
Looking for complete Isuzu D-Max size & space specs?
Our Isuzu D-Max Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Explore Isuzu D-Max Features & Specs
Cruise Control
Adaptive Cruise Control: yes
Stop Go Function: Stop & Go
Mobile Integration
Android Auto: yes
Android Number of Months Subscription: Unlimited
Apple Carplay: yes
Apple Number of Months Subscription: Unlimited
Apple Wireless Connection: yes
Mirrorlink Months Subscription Included: 0
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Includes Walk Away Locking: yes
USB Charging Port
Location: Front
Number of Ports in Front: 1
Location: Rear
Number of Ports in Rear: 1
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 207
Standard Met: EU5
Engine
Bore Engine: 95.4
Engine (cc): 2999
Engine Configuration: In-Line
Engine Code: 4jj1-Tcx
Engine (L): 3.0
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 104.9
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel Tanks
Main Capacity Gal: 20.1
Main Capacity (L): 76
Main Capacity Uk Gallons: 16.7
Main Type: Total
Computer
Average Fuel Consumption: yes
Display Screen
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 9.00
Dashboard Centre 1 Touch Screen: yes
Location: Instrument Cluster 1
Instrument Cluster 1 Screen Size (in): 4.20
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 950
ADR 81/02 Calculated Vehicle Range (miles): 590
ADR 81/02 Combined (km/L): 12.5
ADR 81/02 Combined (L/100km): 8.0
ADR 81/02 Combined (miles per UK gallon): 35
ADR 81/02 Combined (mpg): 29
ADR 81/02 Country Highway (km/L): 14.5
ADR 81/02 Country Highway (L/100km): 6.9
ADR 81/02 Country Highway (miles per UK gallon): 41
ADR 81/02 Country Highway (mpg): 34
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 10.2
ADR 81/02 Urban (L/100km): 9.8
ADR 81/02 Urban (miles per UK gallon): 29
ADR 81/02 Urban (mpg): 24
Fuel Economy
ADR 81/02 (L/100km): 8.0
Power
Maximum Power (hp/PS): 190
Maximum Power (kW): 140
Maximum Torque (Nm): 450
Measurement Standard: DIN
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 3600
Rpm For Maximum Torque Low: 1600
Differential Lock
Location: Rear
Drive
Descent Control System: yes
Driven Wheels: 4x4
Four-Wheel Drive Type: Part-Time
Selection: Manual
Transmission
Code: Awr6b45 Ii
Description: Automatic With Manual Mode
Low High Gear Ranges: yes
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 2
Number of Ventilated Disc Brakes: 2
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Leather Covered
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Wishbone
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Leaf
Rear Type: Beam
Rear Wheel Dependence: Rigid
Tires
Front Wheels Tire Load Index: 112
Location: Front
Front Wheels Tire Profile: 60
Front Wheels Tire Speed Rating: S
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 265
Rear Wheels Tire Load Index: 112
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 60
Rear Wheels Tire Speed Rating: S
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 265
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.5
Location: 1
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.5
Tray/Tub
Liner: Composite
Cover: Tonneau Cover
Type: Straight Side
Cargo Area Dimensions
Height (in): 19.3
Height (mm): 1530
Length (in): 61.8
Length (mm): 1570
Loading Floor Height (in): 29.5
Loading Floor Height (mm): 750
Standard Measurement: Manufacturer'S Own
Width Between Wheelhouses (in): 44.2
Width Between Wheelhouses (mm): 1122
Width (in): 60.2
Width (mm): 1530
External Dimensions
Kerb to Kerb Turning Circle (mm): 12500
Front Overhang (in): 35.6
Front Overhang (mm): 905
Front Track (in): 61.8
Front Track (mm): 1570
Ground Clearance Unladen (in): 9.4
Ground Clearance Unladen (mm): 240
Kerb To Kerb Turning Circle (ft): 41.0
Overall Height (in): 71.3
Overall Height (mm): 1810
Overall Length (in): 207.9
Overall Length (mm): 5280
Overall Width (in): 74.0
Overall Width (mm): 1880
Rear Overhang (in): 49.2
Rear Overhang (mm): 1250
Rear Track (in): 61.8
Rear Track (mm): 1570
Wheelbase (in): 123.0
Wheelbase (mm): 3125
Ramp Angles
Approach Angle: 30.5
Departure Angle: 24.2
Body Style
Body Type: Utility
Cab Type: Double Cab
Local Body Type: Utility
Platform Code: I-Grip
Roof Type: Standard
Wheelbase Type: Short
Step
Step Location: Rear
Rear Step Type: Platform
Step Location: Side
Bumpers
Front Bumper Colour: Painted
Location: Front
Rear Bumper Colour: Painted
Location: Rear
Cargo Doors
Rear Height (in): 18.3
Rear Height (mm): 465
Location: Rear
Rear Opening Angle: 90
Rear Operation: Dropping Gate
Rear Width (in): 57.5
Rear Width (mm): 1460
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Headlight Control
Auto Highbeam: yes
Dusk Sensor: yes
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Brake Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Paint
External Colour: Gray
Type: Gloss
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Toned
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Toned
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Rear Side Windows
Location: Driver
Driver Type: Wind-Up
Location: Passenger
Passenger Type: Wind-Up
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Front Axle Weight (kg): 1450
Front Axle Weight (lb): 3197
Gross Trailer Weight Braked (kg): 3500
Gross Trailer Weight Braked (lb): 7716
Gross Trailer Weight Unbraked (kg): 750
Gross Trailer Weight Unbraked (lb): 1653
Gross Train Weight (kg): 5950
Gross Train Weight (lb): 13118
Gross Vehicle Weight (kg): 3100
Gross Vehicle Weight (lb): 6834
Payload Allowance (kg): 970
Payload Allowance (lb): 2138
Published Kerb Weight (kg): 2130
Published Kerb Weight (lb): 4696
Rear Axle Weight (kg): 1910
Rear Axle Weight (lb): 4211
Tare Weight (kg): 2074
Trailer Noseweight (kg): 350
Audio System
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
USB (Front): yes
Total Front USB Connections: 1
Total Rear USB Connections: 0
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 8
Luxury Trim
Centre Floor Console: Alloy Look
Doors: Alloy Look
Gear Selector: Leather
Instrument Panel: Alloy Look
Airbags
Number of Airbags: 8
Autonomous Drive
Active Lane Control: yes
Level: 1 - Driver Assistance
Crash Test Results
ANCAP Adult Occupant Score: 83.0
ANCAP Child Occupant Score: 89.0
ANCAP Date Tested: 20200916
ANCAP Overall: 5.0
ANCAP Pedestrian Score: 69.0
ANCAP Rating Year: 2020
ANCAP Safety Assist Score: 84.0
ANCAP Standard: Ancap
ANCAP Version Tested: Sx Crew Cab
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Knee Airbags
Location: Driver
Lane Departure Warning
Activates Steering: yes
Rear Cross Traffic Collision Avoidance
Type: Sensor
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Height Type: Electric
Location: Driver
Driver Front Seat Lumbar Type: Electric
Driver Front Seat Reach Type: Electric
Driver Front Seat Type: Bucket
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Synthetic Leather
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Location: Rear Seats
Air Conditioning
Type: Fully-Auto
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 15000
Distance (miles): 9321
Period (Months): 12
* Average savings based on recent CarExpert customer transactions. Actual savings will vary depending on vehicle make and model, location, stock availability, and other factors.
†Displayed prices exclude on-road costs such as delivery charges, registration fees, number plates, insurance and applicable road taxes. These prices are subject to change without notice and may not reflect current market pricing or dealer offers.
Automotive Vehicle Spec Data & 4K images Powered by JATO Dynamics Ltd
