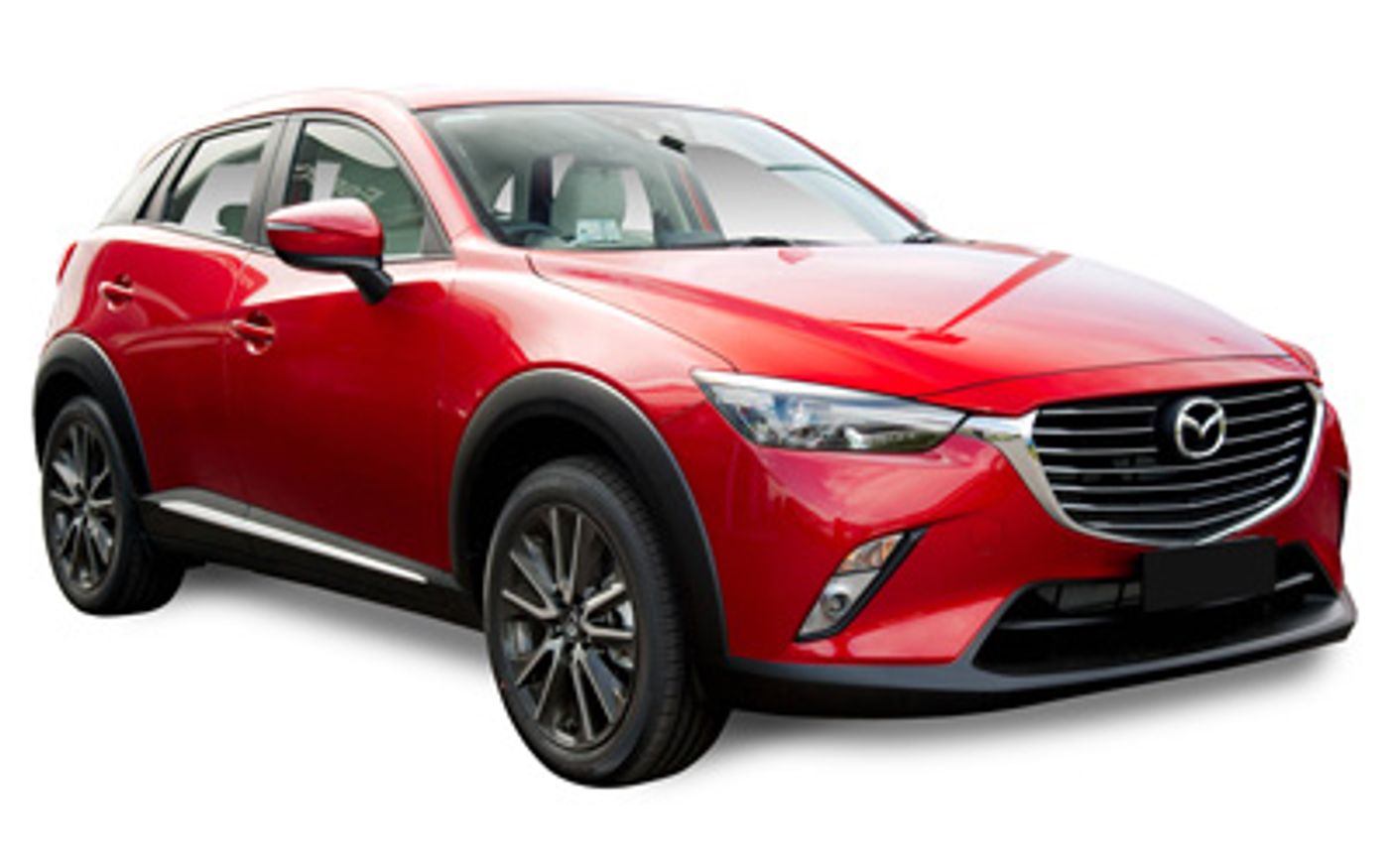

Mazda CX-3 Akari (2017) price & specs
Save $$$ with CarExpert*
From
$37,890â€
Akari
Overview
The 2017 Mazda CX-3 Akari is a four-wheel drive, 5-door SUV that was released to the Australian market on 1st May 2017. The Mazda CX-3 is regarded as a small SUV built in Thailand with prices starting at $37,890 before on-road costs.
This Mazda CX-3 is powered by a 1.5L 4-cylinder engine that has 77 kW of power (at 4000 rpm) and 270 Nm of torque (at 1600 rpm) via a Six-speed Automatic transmission. Mazda claims the CX-3 Akari uses 5.1L/100km of Diesel in the combined city and highway cycle while putting out 134g of CO2. It has a 44L fuel tank, meaning it should be able to travel 863km per full tank
The Mazda CX-3 measures 1550mm (61.0 inches) in height, 4275mm (168.3 inches) in length, 1765mm (69.5 inches) in width with a 2570mm (101.2 inches) wheelbase that brings about a total of 1391kg (3066.6 lbs) of unladen weight. The CX-3 Akari comes standard with 215/50 R18 front tyres and 215/50 R18 rear tyres. It requires a service every 12 months or 10,000 km, whichever comes first. It has a 36 month, unlimited km warranty.
The 2017 Mazda CX-3 Akari has a 160mm ground clearance with a 800kg braked and 640kg unbraked towing capacity.
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
How does the CX-3 compare?
Quickly see how the 2017 Mazda CX-3 Akari stacks up against its competition.
 Select any benchmark to see more details.
Power to Weight
55.36 - 87.13 kW/t
55.36 kW/t
88.03 kW/t
Boot Space
264 litres
264 litres
437 litres
Fuel Efficiency
4.8 - 6.7 L/100km
4.7 L/100km
7.6 L/100km
Vehicle Range
656 - 998 km
641 km
1,000 km
Price
$20,490 - $37,890
$15,990
$40,290
Warranty (Years)
3 - 5 years
3 years
5 years
Warranty (Distance)
Unlimited
100,000 km
Unlimited
Years on Sale
3 - 11 years
3 years
7 years
Service Interval
12 months
6 months
12 months
Towing & Off-Road Capability
Braked Towing Capacity
800 - 1,200 kg
500 kg
1,400 kg
Ground Clearance Unladen
160 mm
160 mm
220 mm
Trusted Reviews, Smarter Choices, Better Prices
Where expert car reviews meet expert car buying – CarExpert gives you trusted advice, personalised service and real savings on your next new car.
Dimensions
4,275 mm
1,765 mm
1,550 mm
| Specification | Measurement |
|---|---|
| Overall Length | 4,275 mm |
| Overall Width | 1,765 mm |
| Overall Height | 1,550 mm |
| Wheelbase | 2,570 mm |
| Turning Circle | 10,600 mm |
Looking for complete Mazda CX-3 size & space specs?
Our Mazda CX-3 Exterior and Dimensions Page has every measurement you need to know exactly how this vehicle will fit your driving, garage, or work needs.
Sales Data
Mazda CX-3 Sales rolling 12-months#
Explore Mazda CX-3 Features & Specs
Compressor
Compressor: Turbo
Number of Compressors: 1
Electrical System
Voltage: 12
Emission Control Level
CO2 Level (Combined): 134
Standard Met: EU5
Engine
Bore Engine: 76.0
Engine (cc): 1499
Engine Configuration: In-Line
Engine Code: Skyactiv-D
Engine (L): 1.5
Number of Cylinders: 4
Number of Valves per Cylinder: 4
Stroke Engine: 82.6
Fuel
Generic Primary Fuel Type: Diesel
Minimum Fuel Type: Diesel
Fuel Type: Diesel
Fuel System
Injection Carburetion: Diesel Common Rail
Fuel Tanks
Main Capacity Gal: 11.6
Main Capacity (L): 44
Main Capacity Uk Gallons: 9.7
Main Type: Total
Computer
Average Fuel Consumption: yes
Average Speed: yes
Instantaneous Fuel Consumption: yes
Range for Remaining Fuel: yes
Display Screen
Dashboard Centre 1 Screen Control Type: Wheel
Location: Dashboard Centre 1
Dashboard Centre 1 Screen Size (in): 7.0
Dashboard Centre 1 Touch Screen: yes
Instrument Cluster
Head Up Display: Panel
Fuel Consumption
ADR 81/02 Calculated Vehicle Range (km): 862
ADR 81/02 Calculated Vehicle Range (miles): 536
ADR 81/02 Combined (km/L): 19.6
ADR 81/02 Combined (L/100km): 5.1
ADR 81/02 Combined (miles per UK gallon): 55
ADR 81/02 Combined (mpg): 46
ADR 81/02 Country Highway (km/L): 20.8
ADR 81/02 Country Highway (L/100km): 4.8
ADR 81/02 Country Highway (miles per UK gallon): 59
ADR 81/02 Country Highway (mpg): 49
ADR 81/02 Standard: Adr 81/02
ADR 81/02 Urban (km/L): 17.5
ADR 81/02 Urban (L/100km): 5.7
ADR 81/02 Urban (miles per UK gallon): 49
ADR 81/02 Urban (mpg): 41
Fuel Economy
ADR 81/02 (L/100km): 5.1
Power
Maximum Power (hp/PS): 105
Maximum Power (kW): 77
Maximum Torque (Nm): 270
Measurement Standard: EEC
Primary or Secondary Fuel Power Figure: Primary
Rpm For Maximum Power Low: 4000
Rpm For Maximum Torque Low: 1600
Drive
Driven Wheels: 4x4
Four-Wheel Drive Type: Full And Part-Time
Selection: Automatic
Transmission
Code: Skyactiv-Drive
Description: Automatic With Manual Mode
Manual Mode: yes
Number of Speeds: 6
Shift Lever Location: Floor
Type: Automatic
Disc Brakes
Number of Disc Brakes: 4
Number of Ventilated Disc Brakes: 2
Power Steering
Vehicle Speed Proportional: yes
Steering Wheel
Height Adjustment: yes
Telescopic Adjustment: yes
Type: Alloy & Leather
Suspension
Location: Front
Front Spring Type: Coil
Front Stabilizer Bar: yes
Front Type: Strut
Front Wheel Dependence: Independent
Location: Rear
Rear Spring Type: Coil
Rear Type: Torsion Beam
Rear Wheel Dependence: Semi-Independent
Tires
Front Wheels Tire Load Index: 92
Location: Front
Front Wheels Tire Profile: 50
Front Wheels Tire Speed Rating: V
Front Wheels Tire Type: Conventional/Summer
Front Wheels Tire Width: 215
Rear Wheels Tire Load Index: 92
Rear Wheels Tire Location: Rear
Rear Wheels Tire Profile: 50
Rear Wheels Tire Speed Rating: V
Rear Wheels Tire Type: Conventional/Summer
Rear Wheels Tire Width: 215
Wheels
Location: Front
Front Wheels Rim Diameter (In): 18
Front Wheels Rim Type: Alloy
Front Wheels Rim Width (In): 7.0
Location: Rear
Rear Rim Diameter (In): 18
Rear Rim Type: Alloy
Rear Wheels Rim Width (In): 7.0
Body Style
Body Type: SUV
Local Body Type: SUV
Platform Code: Skyactiv-B
Wheelbase Type: Short
Spoiler
Location: Roof
Cargo Capacity
Measurement Standard: VDA
Rear Seat Down (cu ft): 41.5
Rear Seat Down (L): 1174
Rear Seat Up to Lower Window (cu ft): 9.3
Rear Seat Up to Lower Window (L): 264
External Dimensions
Kerb to Kerb Turning Circle (mm): 10600
Front Track (in): 60.0
Front Track (mm): 1525
Ground Clearance Unladen (in): 6.3
Ground Clearance Unladen (mm): 160
Kerb To Kerb Turning Circle (ft): 34.8
Overall Height (in): 61.0
Overall Height (mm): 1550
Overall Length (in): 168.3
Overall Length (mm): 4275
Overall Width (in): 69.5
Overall Width (mm): 1765
Rear Track (in): 59.8
Rear Track (mm): 1520
Wheelbase (in): 101.2
Wheelbase (mm): 2570
Internal Dimensions
Front Headroom (in): 37.6
Front Headroom (mm): 954
Rear Headroom (in): 37.2
Rear Headroom (mm): 944
Front Leg Room (in): 41.7
Front Leg Room (mm): 1058
Rear Leg Room (in): 35.0
Rear Leg Room (mm): 888
Front Shoulder Room (in): 53.5
Front Shoulder Room (mm): 1360
Rear Shoulder Room (in): 50.4
Rear Shoulder Room (mm): 1281
Doors
Location: Driver
Driver Door Type: Front Hinged
Location: Passenger
Passenger Door Type: Front Hinged
Location: Rear Driver
Rear Driver Door Type: Front Hinged
Location: Rear Passenger
Rear Passenger Door Type: Front Hinged
Rear Door
Type: Lifting Gate
Headlight Control
Active High Beam: yes
Dusk Sensor: yes
Height Adjustment: Automatic
Internal Height Adjustment: yes
Headlights
High Beam Bulb Type: LED
Low Beam Bulb Type: LED
Lens Type: Ellipsoidal
LED Lights
Location: Day Time Running Lights
Location: High Beam
Location: Low Beam
Location: Rear Lights
Paint
External Colour: Silver
Type: Mica
Sunroof
Front Sunroof Location: Front
Front Sunroof Operation: Electric
Front Sunroof Type: Glass
Door Mirrors/Cameras
Driver Door Mirrors/Cameras Colour: Painted
Heated Driver Door Mirrors/Cameras: yes
Driver Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Driver
Driver Door Mirrors/Cameras Type: Electrically Adjustable
Passenger Door Mirrors/Cameras Colour: Painted
Heated Passenger Door Mirrors/Cameras: yes
Passenger Door Mirror Indicator Lights: yes
Mirrors/Cameras Location: Passenger
Passenger Door Mirrors/Cameras Type: Electrically Adjustable
Power Windows
Front Electric Windows: Front
Rear Electric Windows: Rear
Windshield Wipers
Intermittent Wipe Windshield Wipers: Automatic
Rain Sensor Windshield Wipers: yes
Weights
Gross Trailer Weight Braked (kg): 800
Gross Trailer Weight Braked (lb): 1764
Gross Trailer Weight Unbraked (kg): 640
Gross Trailer Weight Unbraked (lb): 1411
Published Kerb Weight (kg): 1391
Published Kerb Weight (lb): 3067
Tare Weight (kg): 1362
Audio System
Colour Screen: yes
Digital Radio: yes
Radio Type: Am/Fm
Touch Screen: yes
External Connections
Aux Jack (Front): yes
iPod Connection (Front): yes
USB (Front): yes
Remote Audio Controls
Type: Steering Wheel Mounted
Speakers
Number of Speakers: 6
Cargo Area Cover Rear Parcel Shelf
Type: Rigid
Bluetooth
Includes Music Streaming: yes
Includes Phone Connection: yes
Media Control
Touch Screen: yes
Wheel: yes
Parking Distance System
Location: Front
Front Type: Sensor
Location: Rear
Rear Type: Sensor & Camera
Power Outlet 12V
Location (12V): Front
Smart Card/Smart Key
Includes Keyless Entry: yes
Includes Keyless Start: yes
Type: Automatic
Vanity Mirror
Driver Mirror Location: Driver
Location: Passenger
Voice Activating System
Includes Audio Player: yes
Includes Navigation System: yes
Includes Phone: yes
Luxury Trim
Centre Floor Console: Piano Black
Doors: Alloy Look
Gear Selector: Leather
Handbrake Grip: Leather
Airbags
Number of Airbags: 6
Crash Test Results
ANCAP Date Tested: 20150828
ANCAP Overall: 5.00
ANCAP Pedestrian: Good
ANCAP Rear Crash Protect Head Restraint Rating: Good
ANCAP Standard: Ancap
ANCAP Version Tested: 2.0 Litre Petrol
Front Airbag
Location: Driver
Location: Passenger
Front Seat Belts
Driver Height Adjustable: yes
Driver Pre Tensioners: yes
Driver Seat Position: Driver
Passenger Height Adjustable: yes
Passenger Pre Tensioners: yes
Passenger Seat Position: Passenger
Head Restraints
Front Seats Location: Front Seats
Rear Seats Location: Rear Seats
Rear Seats Number: 3
Overtaking Sensor
Manufacturer Name: Blind Spot Monitoring (Bsm)
Rear Seat Belts
Center Seat Position: Centre
Center Type: 3-Point
Driver Seat Position: Driver
Passenger Seat Position: Passenger
Side Airbag
Location: Front
Side Curtain Airbag
Location: Front And Rear
Front Seat
Driver Front Seat Power Adjustable: yes
Driver Front Seat Heated: yes
Driver Front Seat Height Type: Memory
Location: Driver
Driver Front Seat Lumbar Type: Memory
Driver Front Seat Number of Electrical Adjustments: 5
Driver Front Seat Reach Type: Memory
Driver Front Seat Reclining Type: Memory
Driver Front Seat Type: Bucket
Passenger Front Seat Heated: yes
Passenger Front Seat Height Type: Manual
Location: Passenger
Passenger Front Seat Reach Type: Manual
Passenger Front Seat Reclining Type: Manual
Passenger Front Seat Type: Bucket
Seat Upholstery
Additional Seat Material: Suede
Main Seat Material: Leather
Seating
Capacity: 5
Configuration: 2+3
Cup Holders
Location: Front Seats
Air Conditioning
Type: Fully-Auto
Climate Control - Number of Zones: 1
Ventilation System
Heater Type: Combustion
Power Locks
Operation: Card Key
Intermediate Service
Distance (km): 10000
Distance (miles): 6214
Period (Months): 12
